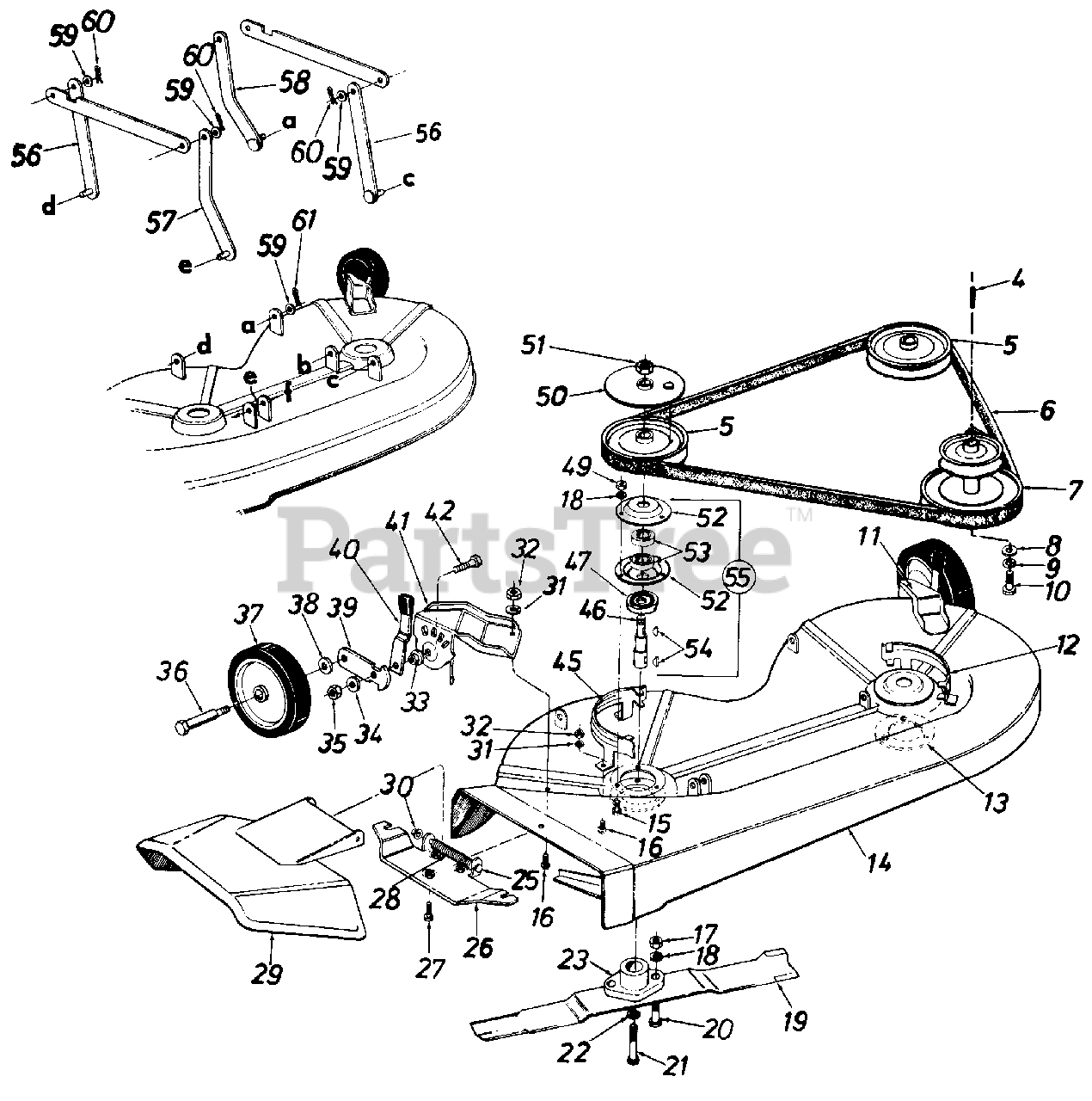

LT-80 (135-690-190) - White Outdoor 34" Lawn Tractor (1985) Mowing Deck Assembly Parts Diagram

34" Lawn Tractor

Mowing Deck Assembly Parts Diagram

  • Title

4

MTD 914-0114

Sq. Key 1/4" X 1/4" X 2.0"

$4.49

$

In Stock, only 2 left!

0

5

MTD 756-0251

Pulley 4.75" O.D.

$63.99

$

Usually ships in 3-6 days

0

6

MTD 754-0151

V-Belt 21/32 x 67" Lg.(34" Deck)

Note: NLA

$

$

Not available

6

MTD 954-0145A

V-Belt 21/32 x 69" Lg. (38" Deck)

$51.99

$

Usually ships in 3-6 days

0

7

See Lawn Tractor Manual

$

$

Not available

8

MTD 736-0322

Fl-Wash. 7/16" I.D. x 1.25 O.D. x .180

$9.99

$

In Stock, Qty 20+

0

9

MTD 936-0171

L-Wash. 7/16" I.D.*
(Superseded to 736-0171)

$4.99

$

In Stock, Qty 17

0

10

MTD 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.*

$10.99

$

In Stock, only 2 left!

0

11

MTD 09082

Wheel Bolt L.H.

Note: NLA

$

$

Not available

12

MTD 16607-0637

Belt Guard L.H.

$

$

Not available

13

MTD 09164A-0637

Plate Deck Reinforcement

$35.99

$

In Stock, only 2 left!

0

14

MTD 14658

34" Deck Ass'y.

Note: NLA

$

$

Currently unavailable

14

MTD 14776

34" Deck Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

14

MTD 14662

38" Deck Ass'y.

Note: NLA

$

$

Currently unavailable

14

MTD 14777

38" Deck Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

15

MTD 910-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

16

MTD 910-0289

Hex Bolt 1/4-20 x .50" Lg.*

$3.99

$

In Stock, only 3 left!

0

17

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$7.49

$

In Stock, Qty 8

0

18

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

19

MTD 742-0120

17" Blade (34" Deck)

Note: NLA

$

$

Not available

19

MTD 942-0122B

19" Blade (38" Deck)

$

$

Not available

20

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 8

0

21

MTD 710-0459A

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)

$7.49

$

In Stock, Qty 11

0

22

MTD 936-0217

L-Wash. 3/8" I.D. (Heavy Duty)
(Superseded to 736-0217)

$4.49

$

In Stock, only 3 left!

0

23

MTD 10769

Blade Adapter Kit

$

$

Not available

25

MTD 711-0571

Hinge Pin

Note: NLA

$

$

Not available

26

MTD 11396

Adapter Plate

Note: NLA

$

$

Not available

27

MTD 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 732-0261

Torsion Spring

Note: NLA

$

$

Not available

29

MTD 11633

Chute Cover Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

30

MTD 926-0106

Push Nut 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

31

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.99

$

In Stock, Qty 16

0

32

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

33

MTD 748-0279

Shld. Spacer

Note: NLA

$

$

Not available

34

MTD 936-0219

Bell-Wash. .400" I.D. x 1.13"

$4.49

$

Usually ships in 3-6 days

0

35

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

36

MTD 938-0373

Shld. Bolt .498" Dia. x 1.53n

$9.99

$

In Stock, Qty 20+

0

37

MTD 734-0973

Plastic Wheel 5.0" x 1.38"
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

38

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

39

MTD 10937

Pivot Bar

Note: NLA

$

$

Not available

40

MTD 14082

Spring Lever Ass'y. w/ Knob

$

$

Not available

41

MTD 09080

Wheel Brkt. R.H.

Note: NLA

$

$

Not available

42

MTD 910-0253

Hex Bolt 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

45

MTD 12673

Belt Guard R.H.

Note: NLA

$

$

Not available

46

MTD 911-0255

Blade Spindle

$

$

Not available

47

MTD 13703

Bearing Shield

$

$

Not available

49

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

50

MTD 09322

Brake Disc

$

$

Not available

51

MTD 912-0261

Hex Jam L-Nut 5/8-11 Thd.

$

$

Not available

52

MTD 08253B

Bearing Housing

$20.99

$

In Stock, only 4 left!

0

53

MTD 941-0919A

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

54

MTD 914-0365

#6 Hi-Pro Key 5/32" x 5/8" Dia.
(Superseded to 714-0365)

$

$

Not available

55

MTD 09321

Blade Spindle Ass'y.

$102.99

$

Usually ships in 3-6 days

0

56

MTD 14804

Link Deck Hanger Ass'y.

Note: NLA

$

$

Not available

57

MTD 14800A-0637

Link Deck Hanger Ass'y.

Note: (Dog Leg)

$

$

Not available

58

MTD 15925

Link Deck Hanger Ass'y. L.H.

Note: NLA

Variations

MTD 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 936-0192

Fl-Wash. .53" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 18

0

60

MTD 914-0104

Inter. Cotter Pin 3/8" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 17

0

61

MTD 914-0101

Inter. Cotter Pin .50" Dia.
(Superseded to 714-0101)

$

$

Not available

MTD 961-0168D

Blade Brake Assembly (34" Deck)

$33.99

$

In Stock, only 2 left!

0

MTD 961-0197

Blade Brake Assembly (38" Deck)

$

$

Not available
