LT 9000 (2691142-00) - Allis-Chalmers 42" Lawn Tractor, 20hp Briggs & Stratton 42" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

42" Lawn Tractor, 20hp Briggs & Stratton

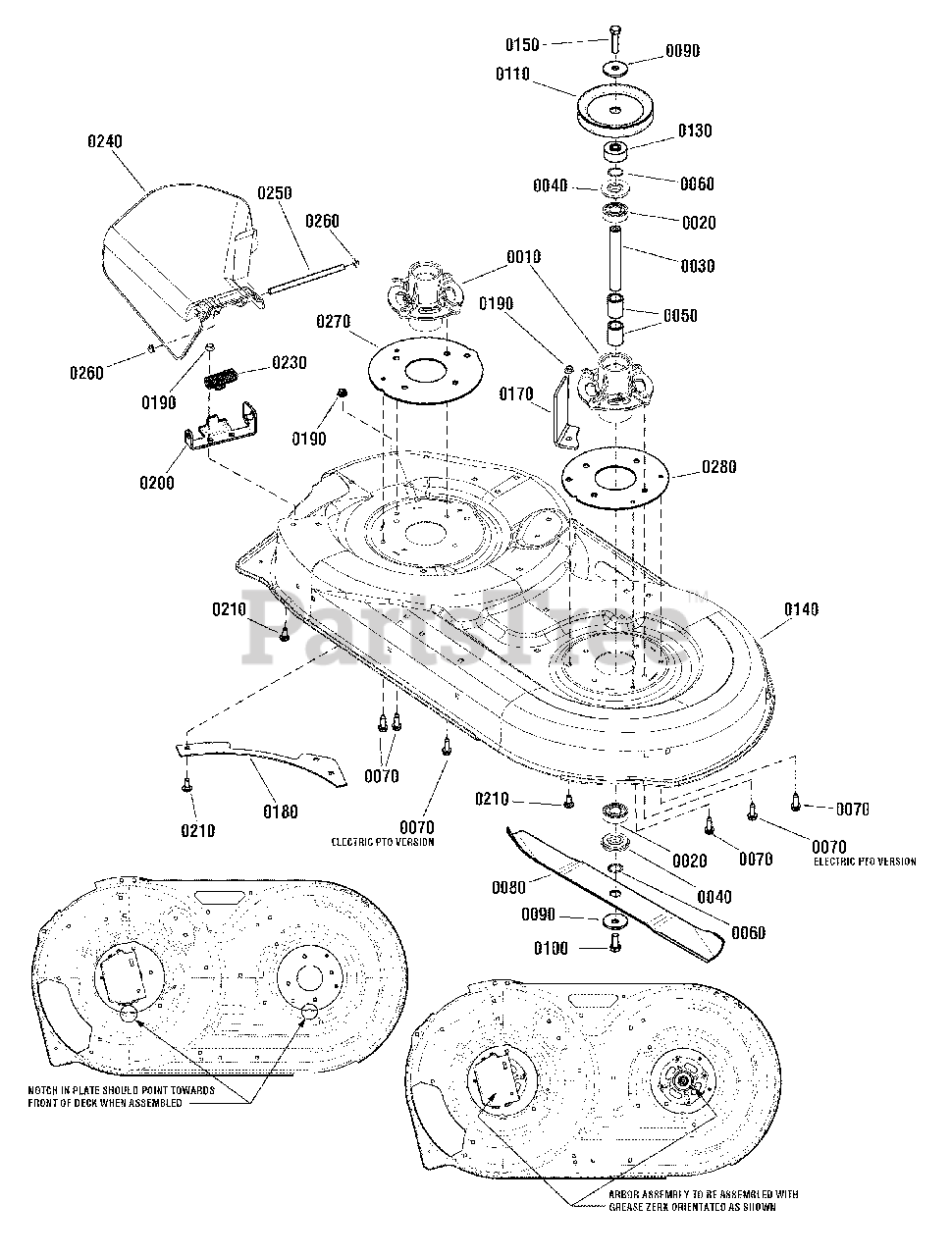

42" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Simplicity 1737352YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 7

0

0010-10

Simplicity 1704314SM

FITTING, Lubrication
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0020

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0030

Simplicity 1735326YP

SHAFT,Spindle, 20mm Dia. x 134.6mm
(Superseded to 1760276YP)

$27.99

$

In Stock, Qty 10

0

0040

Simplicity 1735323YP

SHIELD, Arbor, 2-1/16 OD
(Superseded to 84003166)

$6.99

$

In Stock, Qty 20+

0

0050

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, Qty 20+

0

0060

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 12

0

0080

Simplicity 1737816BMYP

BLADE

$27.99

$

In Stock, Qty 12

0

0090

Simplicity 1656916SM

WASHER, Spring, 15/32 ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0100

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 x 1, G5

$5.49

$

In Stock, Qty 11

0

0110

Simplicity 1737835YP

PULLEY, V, Deep Groove

$20.99

$

In Stock, only 2 left!

0

0130

Simplicity 1737457YP

SPACER, Pulley

$10.99

$

In Stock, Qty 5

0

0140

Simplicity 1736504ZYP

HOUSING, 42" Mower Deck

$506.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1923027SM

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, G5
(Superseded to 703171)

$3.99

$

In Stock, Qty 11

0

0170

Simplicity 1737845AYP

UPSTOP

$32.99

$

Usually ships in 2-12 days

0

0180

Simplicity 092426E701MA

PLATE, Rear

$10.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0200

Simplicity 094956E701MA

BRACKET, Hinge

$22.99

$

In Stock, only 2 left!

0

0210

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, only 1 left!

0

0240

Simplicity 094707MA

DEFLECTOR & SUPPORT ASSEMBLY, Chute

$108.99

$

Usually ships in 2-12 days

0

0250

Simplicity 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

0260

Simplicity 1960093SM

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 18

0

0270

Simplicity 1750457BMYP

PLATE, Spindle, R.H.

$28.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1750458BMYP

PLATE, Spindle, L.H.

$28.99

$

Usually ships in 2-12 days

0
