LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Fender / Chassis Parts Diagram

Lawn Tractor

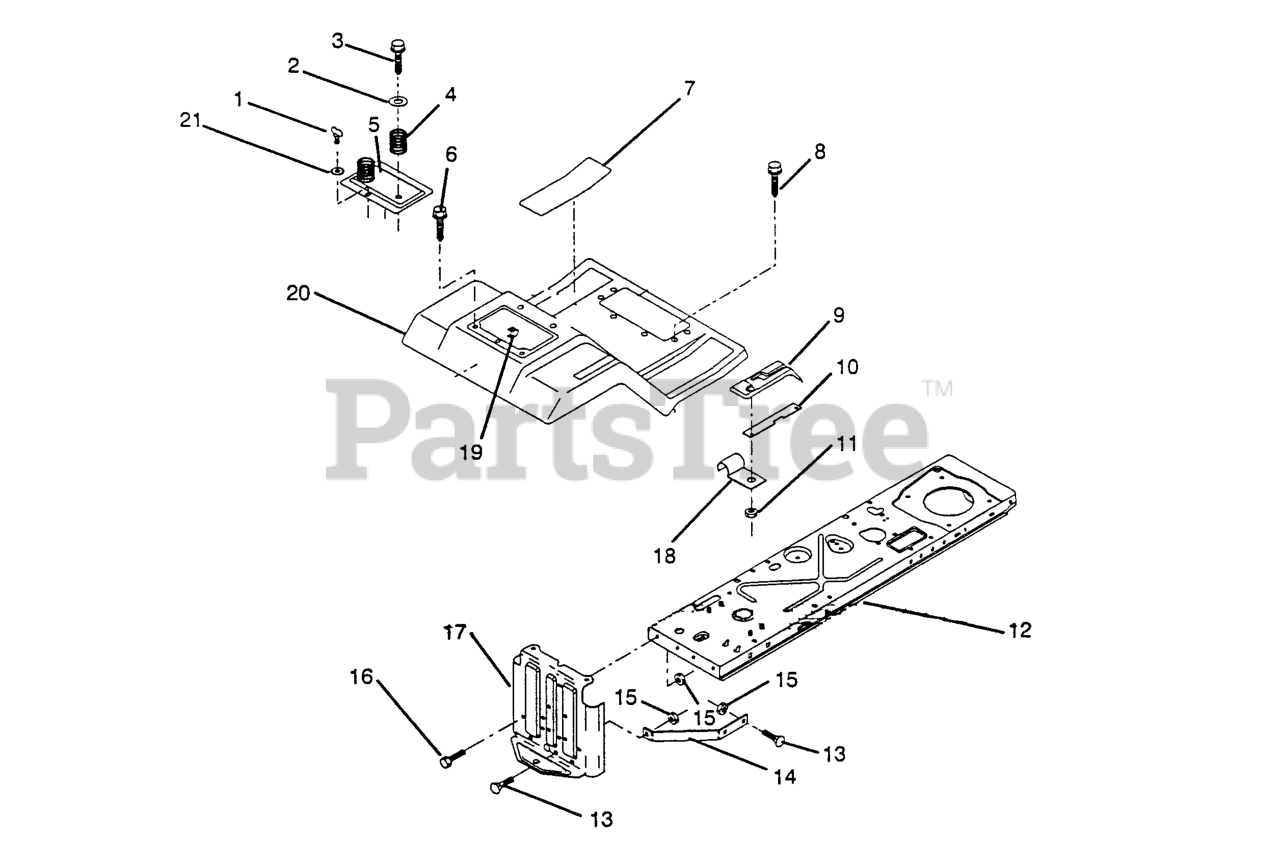

Fender / Chassis Parts Diagram

  • Title

1

Husqvarna 532123650

STUD 1/4 TURN

$

$

Not available

2

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

5

Husqvarna 532124971

Door, Fender

$

$

Currently unavailable

6

Husqvarna 817490508

Screw, Hex Wsh. Thrdrol. 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

7

Husqvarna 532126700

FOOTREST PAD

$

$

Not available

8

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532126995

CONSOLE,SHT CONTR

$

$

Not available

10

Husqvarna 532124305

Bar, Shift Lock

$

$

Currently unavailable

11

Husqvarna 532124346

NUT.PUSH.3/16

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532123645

FRAME ASS'Y

$

$

Not available

13

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 532123379

BRACE,DRAWBAR

$

$

Not available

15

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

16

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532121904

DRAWBAR**
(Superseded to 532127880)

$

$

Not available

18

Husqvarna 532126470

CLIP,INSULATOR

$

$

Not available

19

Husqvarna 532105839

RECEPTACLE LT

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124970

FENDER/FOOTREST

$

$

Not available

21

Husqvarna 532105838

RETAINER LT

$

$

Not available

Husqvarna 532125690

DECAL

$

$

Not available

Husqvarna 532123637

DECAL OPERATING INST. ENGLISH
(Superseded to 532138269)

$

$

Not available

Husqvarna 532126392

Decal, Operating Instructions (English)

$

$

Currently unavailable
