LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Mower Deck (Discharge) Parts Diagram

Lawn Tractor

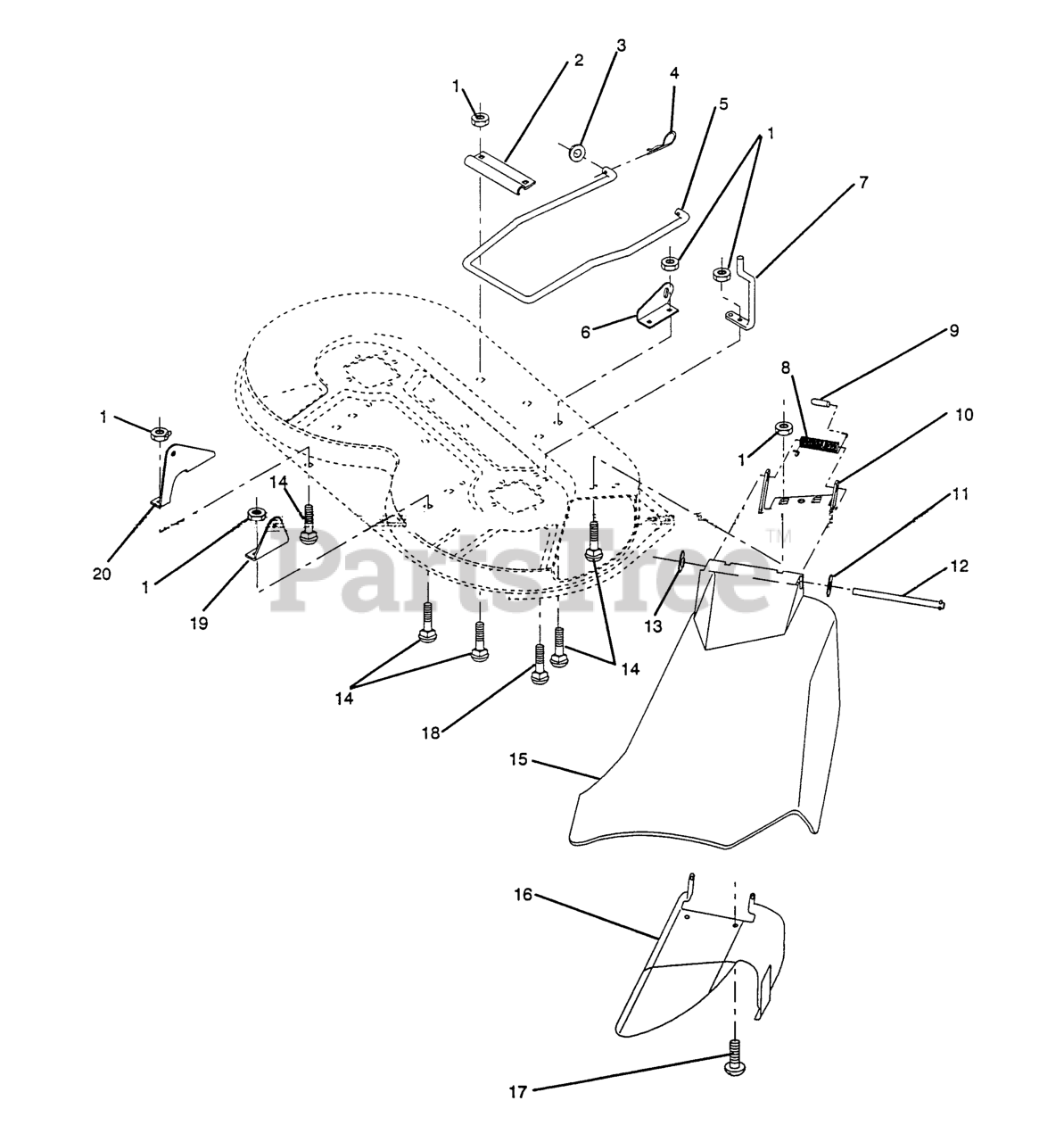

Mower Deck (Discharge) Parts Diagram

  • Title

1

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

2

Husqvarna 532122047

BRKT,STAB LINK

$

$

Not available

3

Husqvarna 819171713

WASHER STEEL

$3.49

$

In Stock, Qty 6

0

4

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

5

Husqvarna 532124636

STABILIZER MOWER

$

$

Not available

6

Husqvarna 532122045

BRKT,FRT LIFT RH

$

$

Not available

7

Husqvarna 532123661

GUIDE,FRT MAN RH

$

$

Not available

8

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, Qty 17

0

9

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 532126361

BRKT,DEFLECTOR
(Superseded to 532136631)

$

$

Not available

11

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

12

Husqvarna 532121980

HINGE ROD
(Superseded to 593885101)

$6.99

$

In Stock, only 4 left!

0

13

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 532126370

GUARD,DEFLECTOR
(Superseded to 532136244)

$

$

Not available

16

Husqvarna 532125629

DEFL SUPT ASS'Y

$

$

Not available

17

Husqvarna 817051007

Screw, Pan Hd. PLT-30

$

$

Not available

18

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532122043

BRKT,REAR LIFT RH

$

$

Not available

20

Husqvarna 532122044

BRKT,REAR LIFT LH

$

$

Not available

Husqvarna 532123658

DECAL WARNING

$

$

Not available

Husqvarna 532123649

DECAL WARNING

$

$

Not available

Husqvarna 532109820

DECAL YT

$

$

Not available
