LT 92012 (954000251-A) - Husqvarna Lawn Tractor (1993-01) Transaxle Parts Diagram

Lawn Tractor

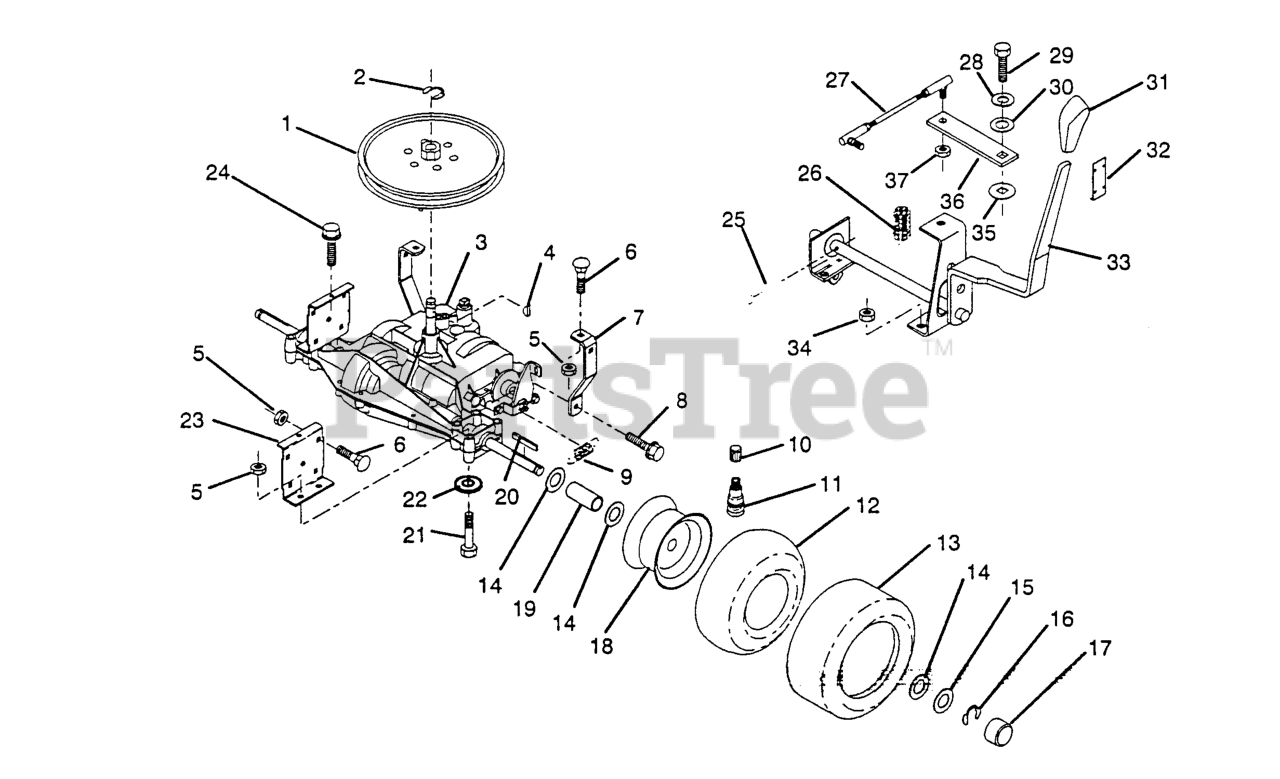

Transaxle Parts Diagram

  • Title

1

Husqvarna 532123385

PULLEY

$68.99

$

In Stock, only 2 left!

0

2

Husqvarna 812000028

RETAINING RING LT

$2.49

$

In Stock, only 2 left!

0

3

Husqvarna 532127054

Transaxle, Peerless 6 Speed Model Number 930-028

$

$

Currently unavailable

4

Husqvarna 532125096

KEY STD (1373) DANA

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

6

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532123378

STRAP,TORQUE

$

$

Not available

8

Husqvarna 817490508

Screw, Hex Thdrol. 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

9

Husqvarna 532110422

SPRING T
(Superseded to 532146682)

$7.99

$

In Stock, only 2 left!

0

10

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 8

0

11

Husqvarna 532065139

VALVE STEM LT

$6.49

$

In Stock, Qty 20+

0

12

Husqvarna 532008134

TUBE.16X6.5/7.5-8

$56.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532123411

TIRE.16X7.5-8.TURF.SAVER.FRONT

$

$

Not available

14

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

15

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 532104757

CAP.HUB.FRONT.LT.BLACK

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 532124973

RIM T

$

$

Not available

19

Husqvarna 532123409

SPACER

$

$

Not available

20

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 874760540

Bolt, Fin, Hex 5/16-18 x 2-1/2

$

$

Not available

22

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 532123377

BRKT,TRANSAXLE

$

$

Not available

24

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532123393

EXT SPRING
(Superseded to 532128085)

$

$

Not available

27

Husqvarna 532126293

JOINT

$

$

Not available

28

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 871040412

BOLT LT
(Superseded to 596136601)

$3.49

$

In Stock, only 1 left!

0

30

Husqvarna 819091210

WASHER LT
(Superseded to 596039801)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532122011

KNOB,SHT CONTROL

$

$

Not available

32

Husqvarna 532123692

KNOB RETAINER

$

$

Not available

33

Husqvarna 532125976

SHIFT HANDLE ASSY

$

$

Not available

34

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

35

Husqvarna 532105701

WASH-SHFT PLT LT

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532126292

ARM

$

$

Not available

37

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available
