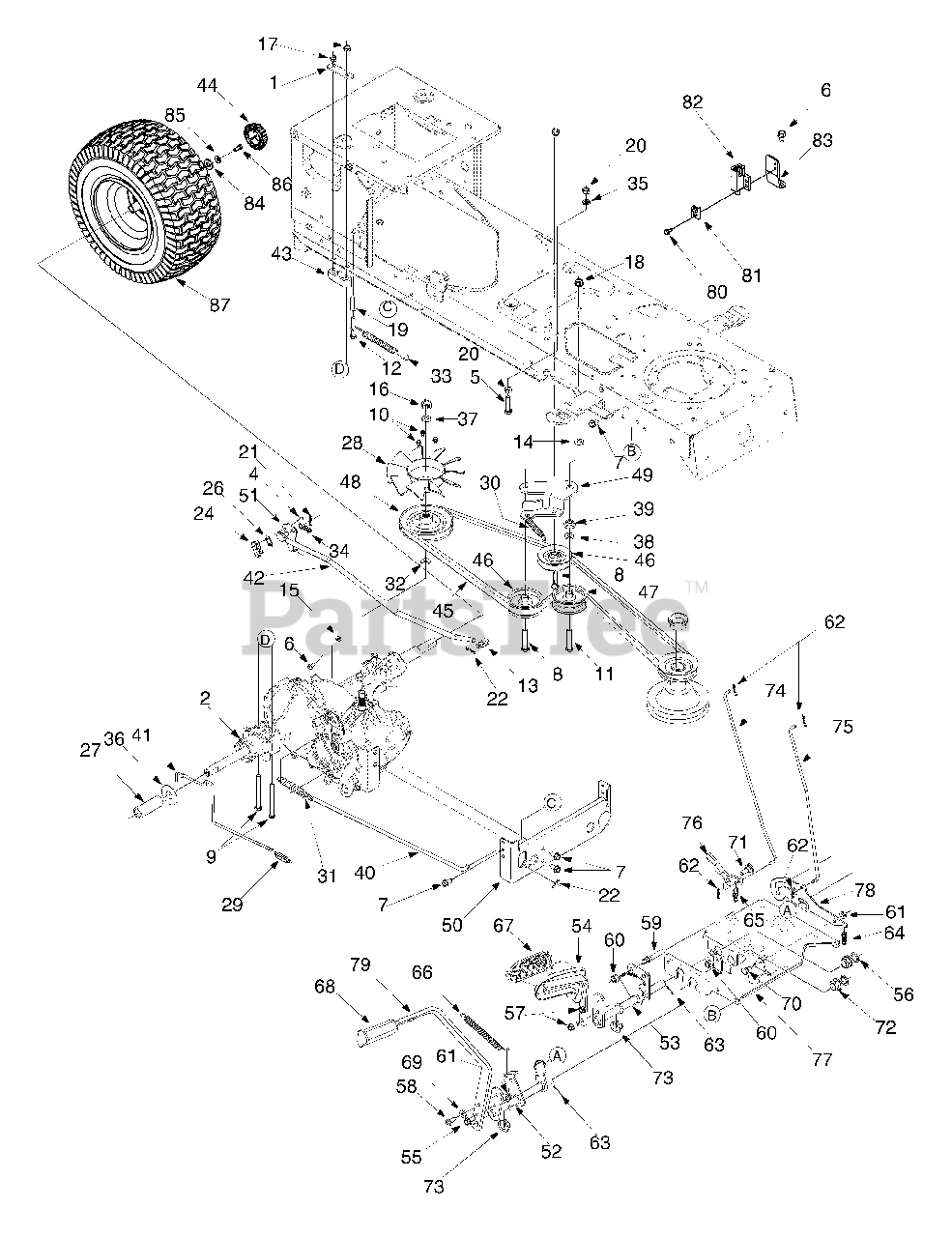

LT-946 H (13A4616H790) - White Outdoor 46" Lawn Tractor (2005) > Parts Diagrams (11) > Drive & Rear Wheels

  • Title
17840

1

Transmission Mounting Bracket

Part# 17840

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Trans Mounting Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.11

618-0319

2

Hydrostatic Transmission

Part# 618-0319 (Superseded to 918-0319)

OEM Warranty Repair Part for White Outdoor

Not available

629-0949A

3

Harness Assembly

Part# 629-0949A (Superseded to 629-0949B)

Note: (Not Shown)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $32.98

710-0227

4

AB Screw #8-18 x 0.5

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0344

5

Hex Bolt 3/8-16 x 1.5

Part# 710-0344

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.13

710-0599

6

TT Screw 1/4-20 x 0.5

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0726

7

AB Screw 5/16-12 x 0.75

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

710-0502A

8

TT Sems Screw 3/8-16 x 1.250

Part# 710-0502A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.58

710-1266

9

Hex Bolt 5/16-18 x 3.5

Part# 710-1266

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.95

710-3007

10

Carriage Screw

Part# 710-3007

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-3011

11

Hex Bolt 3/8-16 x 2.25

Part# 710-3011

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.14

710-0809

12

Screw, 1/4-20 x 1.250

Part# 710-0809

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.07

711-0832

13

Ferrule

Part# 711-0832 (Superseded to 911-0832)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.97

736-0320

14

Flat Washer,.38 x 1.38 x.125

Part# 736-0320

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

712-0291

15

Hex Lock Nut 1/4-20

Part# 712-0291 (Superseded to 912-0291)

OEM Warranty Repair Part for White Outdoor

Not available

712-3066

16

Hex Nut, 1/2-20

Part# 712-3066 (Superseded to 912-3066)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

712-04063

17

Flange Lock Nut, 5/16-18

Part# 712-04063

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

712-0431

18

Flanged Lock Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

750-0566A

19

Spacer,.260 x.372 x 1.030 Lg

Part# 750-0566A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

712-3017

20

Hex Nut 3/8-16

Part# 712-3017 (Superseded to 912-3017)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

714-0104

21

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

714-0111

22

Cotter Pin

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

725-0157

23

Cable Tie

Part# 725-0157

Note: (Not shown)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.74

725-1644

24

Switch

Part# 725-1644

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.69

726-0154

25

Cable Tie

Part# 726-0154 (Superseded to 926-0154)

Note: (Not shown)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.42

726-0320

26

Insulator Nut Plate

Part# 726-0320 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

731-04682

27

Sleve, 0.758 x 0.821 x 1.5

Part# 731-04682

OEM Warranty Repair Part for White Outdoor

Not available

731-1449A

28

Blade Fan

Part# 731-1449A (Superseded to 931-1449A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.44

732-0209

29

Extension Spring

Part# 732-0209 (Superseded to 932-0209)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.56

732-0429A

30

Extension Spring

Part# 732-0429A (Superseded to 932-0429A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.57

732-0716

31

Extension Spring

Part# 732-0716 (Superseded to 732-0716D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.21

732-0729

32

Wire Ring

Part# 732-0729

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

732-0994

33

Extension Spring

Part# 732-0994

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.56

732-3118

34

Extension Spring

Part# 732-3118

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.03

736-0169

35

Lock Washer

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0866

36

Flat Washer

Part# 736-0866

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0921

37

Lock Washer

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

736-3010

38

Flat Washer

Part# 736-3010

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

738-0372B

39

Shoulder Spacer

Part# 738-0372B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.97

747-04139

40

Brake Rod

Part# 747-04139

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $17.07

747-1149

41

Bypass Rod

Part# 747-1149

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.60

747-1151

42

Control Rod

Part# 747-1151

OEM Warranty Repair Part for White Outdoor

Not available

748-0334

43

Transaxle Spacer

Part# 748-0334 (Superseded to 948-0334)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.84

731-2290A

44

Hub Cap

Part# 731-2290A (Superseded to 731-2290B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.07

754-0461

45

V Belt, A x 78" Lg

Part# 754-0461 (Superseded to 954-0461)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.56

756-0116A

46

Idler Pulley

Part# 756-0116A (Superseded to 756-04209)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $16.65

756-0981B

47

Flat Idler Pulley

Part# 756-0981B (Superseded to 756-04224)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.70

756-04111

48

Input Pulley

Part# 756-04111

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $37.00

783-04442

49

Idler Bracket

Part# 783-04442

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.23

Variations

POWDER BLACK (0637)

Double Idler Bracket Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.23

WINE RED (4008)

Double Idler Bracket Assembly

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.23

783-0810B

50

Torq Bracket

Part# 783-0810B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-TRANS TORQUE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-1019

51

Actuator Bracket

Part# 783-1019 (Superseded to 783-1019B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.63

647-0031B

52

Brake Control Assembly

Part# 647-0031B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Service Kit

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

647-0049A

53

Hydrostatic Control Assembly

Part# 647-0049A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Hydro Control Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $51.89

683-0267C

54

Pedal Assembly

Part# 683-0267C

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $39.01

710-0650

55

TT Screw 5/16-18 x 0.875

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

736-0187

56

Flat Washer,.64 x 1.24 x.06

Part# 736-0187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-1260A

57

LD Screw 5/16-18 x 0.75

Part# 710-1260A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

710-1611B

58

TT Screw 5/16-18 x 0.75

Part# 710-1611B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

711-04159B

59

Pin

Part# 711-04159B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.42

712-04065

60

Flange Lock Nut, 3/8-16

Part# 712-04065

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-3004A

61

Flange Lock Nut, 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

714-0104

62

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

714-0111

63

Cotter Pin

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

732-0335

64

Compression Spring

Part# 732-0335

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.55

732-0955

65

Extension Spring

Part# 732-0955

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.69

732-0963

66

Extension Spring

Part# 732-0963

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.08

735-0662

67

Control Pedal

Part# 735-0662

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.39

735-3049

68

Brake Control Pedal

Part# 735-3049 (Superseded to 735-3049A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.07

736-3008

69

Flat Washer

Part# 736-3008 (Superseded to 936-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.96

738-0155

70

Shoulder Screw

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

738-0380

71

Shoulder Screw

Part# 738-0380 (Superseded to 938-0380)

OEM Warranty Repair Part for White Outdoor

Not available

741-0225

72

Hex Flange Bearing

Part# 741-0225 (Superseded to 941-0225)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.20

741-3065B

73

Hex Flange Bearing

Part# 741-3065B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.91

747-04093

74

Brake Lock Control Rod

Part# 747-04093

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.52

747-04096

75

Cruise Control Rod

Part# 747-04096

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.53

748-04039B

76

Cruise Latch

Part# 748-04039B

OEM Warranty Repair Part for White Outdoor

Not available

783-04612

77

Steering Support Bracket

Part# 783-04612

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Steering Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $63.13

683-04185

78

Lockout Bracket

Part# 683-04185

OEM Warranty Repair Part for White Outdoor

Not available

783-0773A

79

Brake Pedal

Part# 783-0773A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Service Kit

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

Service Kit

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

Service Kit

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

Service Kit

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

WINE RED (4008)

PEDAL-BRAKE

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Not available

710-0224

80

Screw, #10-16 x.500

Part# 710-0224 (Superseded to 910-0224)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.55

17962

81

Switch Plate

Part# 17962

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.48

725-04039

82

Interlock Switch

Part# 725-04039 (Superseded to 925-04039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $18.05

783-04707

83

Parking Brake Switch Bracket

Part# 783-04707

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-PARKING SW

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

736-0430

84

Flat Washer,.350 x 1.59 x.062

Part# 736-0430

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0242

85

Bell Washer,.340 x.872 x.060

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0627

86

Screw, 5/16-24 x.750

Part# 710-0627

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

634-0177

87

Wheel Complete, 20 x 10 x 8

Part# 634-0177

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $334.63

Variations

Carlisle Gray (0911)

WHEEL ASS'Y COMP

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $334.63

Carlisle Beige (0931)

WHEEL ASSEMBLY COM

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $334.63

Carlisle Yellow (0941)

WHEEL ASS'Y COMP

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $334.63

Carlisle Gray (0961)

WHEEL ASS'Y COMP

Part# Carlisle Gray (0961)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $334.63

Carlisle White (0991)

WHEEL ASS'Y COMP

Part# Carlisle White (0991)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $334.63

Cheng White (0994)

WHEEL ASS'Y COMP

Part# Cheng White (0994)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $334.63

TEE WHITE (4009)

WHEEL ASS'Y COMP

Part# TEE WHITE (4009)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $334.63

734-1873

Tire Only, 20 x 10 x 8

Part# 734-1873

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $224.83

Variations

Carlisle (0901)

Tire, 20 X 10 X 8

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $99.67

Cheng (0904)

Tire, 20 X 10 X 8

Part# Cheng (0904)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $99.67

634-0070

Rim Only

Part# 634-0070

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $122.26

Variations

CUB BEIGE (0499)

WHEEL RIM

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

SILVER FLAKE (0629)

WHEEL RIM

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

OYSTER GRAY (0662)

WHEEL RIM

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

YARDMAN YELLOW (0674)

WHEEL RIM

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.82

SPRING GREEN (0688)

WHEEL RIM

Part# SPRING GREEN (0688)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

TEE WHITE (4009)

WHEEL RIM

Part# TEE WHITE (4009)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84
