LT-946 H (13A4616H790) - White Outdoor 46" Lawn Tractor (2005) Steering, Front Wheels & Axle Parts Diagram

46" Lawn Tractor

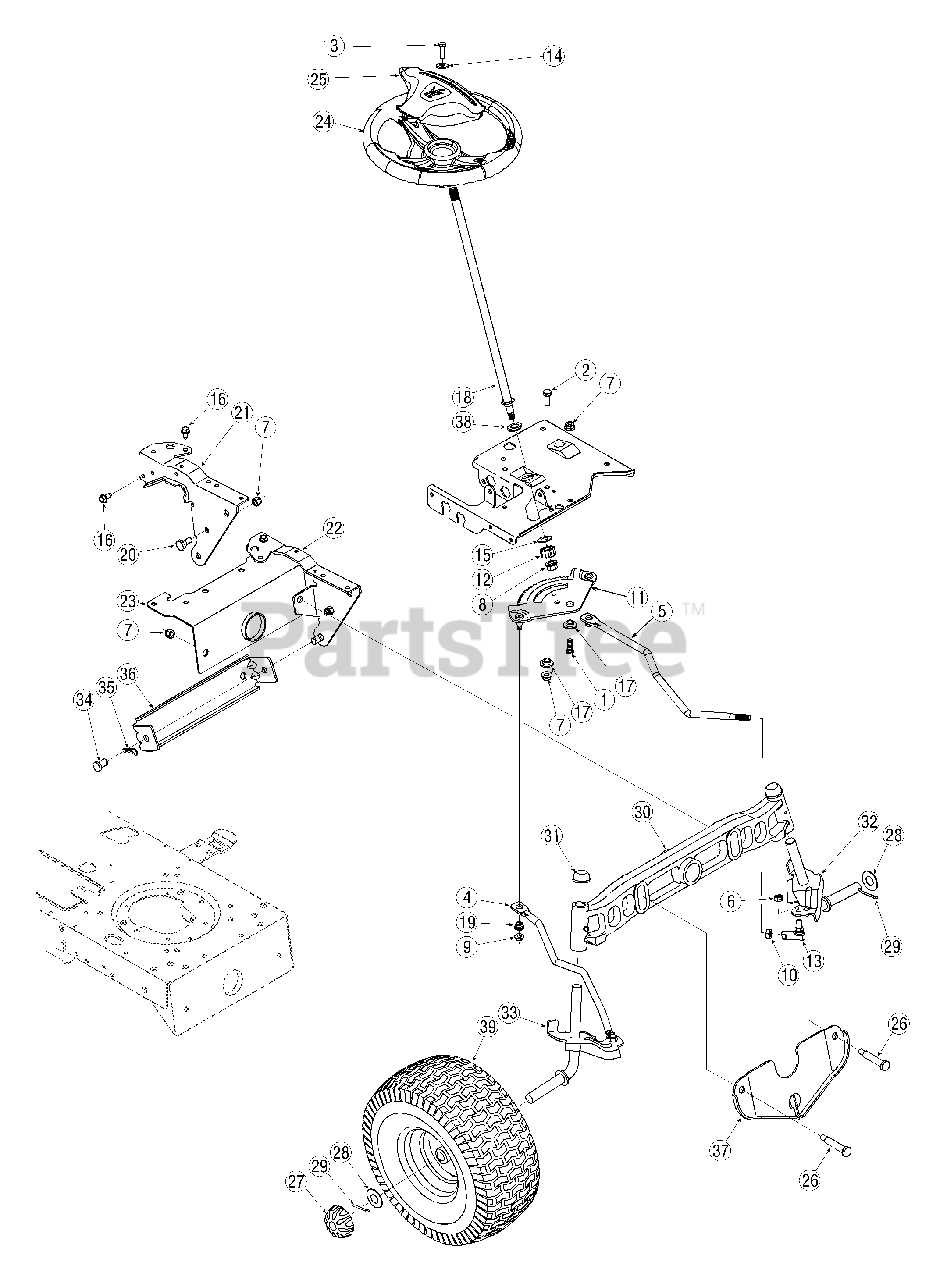

Steering, Front Wheels & Axle Parts Diagram

  • Title

1

White Outdoor 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$4.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.49

$

In Stock, Qty 20+

0

4

White Outdoor 711-1408

Link, Drag, RH

$

$

Not available

5

White Outdoor 711-1409A

Link, Drag, LH

$

$

Not available

6

White Outdoor 712-0214

Nut, Hex Lock, 3/8-24

$5.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0459

Nut, Flange Lock, 7/16-20

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$65.99

$

In Stock, Qty 20+

0

12

White Outdoor 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

13

White Outdoor 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$22.99

$

In Stock, Qty 20+

0

14

White Outdoor 736-3004

Washer, Flat,.406 x.875 x.105

$4.49

$

In Stock, Qty 19

0

15

White Outdoor 736-3084

Washer, Flat,.51 x 1.12 x.06

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 738-04154

Spacer, Shoulder,.38 x 1.00 x.31

$5.49

$

In Stock, Qty 20+

0

18

White Outdoor 738-1001A

Shaft, Steering,.625 OD x 24.25 Lg

$69.99

$

In Stock, Qty 6

0

19

White Outdoor 741-0475

Plastic Bushing.380 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 738-0143

Screw, Shoulder,.498 x.340, 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 783-0726D

Pivot Bracket, Support RH
(Superseded to 783-0726E)

Variations

White Outdoor 783-0726D-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0726D-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0726D-0637

BRACKET:PIVOT SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0726D-0650

BRACKET:PIVOT SUPPORT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0726D-0691

BRACKET:PIVOT SUPPORT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0726D-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0726D-0665

BRACKET:PIVOT SUPPORT RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

White Outdoor 783-0727C

Pivot Bracket, Support LH
(Superseded to 783-0727D)

Variations

White Outdoor 783-0727C-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0727C-0637

BRACKET:PIVOT:SUPPORT LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0727C-0650

BRACKET:PIVOT:SUPPORT LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0727C-0691

BRACKET:PIVOT:SUPPORT LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0727C-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0727C-0665

BRACKET:PIVOT:SUPPORT LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

23

White Outdoor 783-0728

Pivot Bracket, Bar
(Superseded to 783-0728B)

Variations

White Outdoor 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

24

White Outdoor 631-04008

Steering Wheel, 3 Spoke, Soft Grip
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

25

White Outdoor 731-04065

Steering Wheel Cover

$

$

Not available

26

White Outdoor 738-04128

Shlder Screw,.5 x 2.380, 3/8-16 LT942H)

$7.49

$

In Stock, only 2 left!

0

26

White Outdoor 738-1011A

Shlder Screw,.5 x 2.2, 3/8-16 LT946H)

$7.99

$

In Stock, Qty 12

0

27

White Outdoor 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0316

Flat Washer,.78 x 1.589 x.06

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 719-04105

Cast Iron Pivot Bar
(Superseded to 919-04177E)

$231.99

$

Usually ships in 3-6 days

0

31

White Outdoor 726-0341

Push Cap

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 638-04006

LH Axle Assembly,.750 (LT942H)
(Superseded to 938-04006A-0637)

$50.99

$

In Stock, only 1 left!

0

32

White Outdoor 638-04003

LH Axle Assembly,.750 (LT946H)
(Superseded to 638-04003AP)

$76.99

$

In Stock, Qty 10

0

33

White Outdoor 638-04005

RH Axle Assembly,.750 (LT942H)
(Superseded to 938-04005A-0637)

$50.99

$

In Stock, only 2 left!

0

33

White Outdoor 638-04004

RH Axle Assembly,.750 (LT946H)
(Superseded to 938-04004A)

$66.99

$

In Stock, Qty 10

0

34

White Outdoor 711-0332

Pin, Clevis,.50 x.78 (LT946H)
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

35

White Outdoor 714-04023

Cotter Pin, Inter,.080 x 1.5625 (LT946H)

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 783-0720A

Front Adjustment Bracket (LT946H)
(Superseded to 783-0720C)

Variations

White Outdoor 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$42.99

$

In Stock, Qty 5

0

White Outdoor 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

37

White Outdoor 783-04568

Deck Hanger Bracket, Front (LT942H)

Variations

White Outdoor 783-04568-0637

Deck Hanger Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04568-4008

BRACKET-DECK HANGER - WINE RED (4008)

$47.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04568-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

38

White Outdoor 741-0656A

Hex Flange Bearing
(Superseded to 941-0656A)

$4.99

$

In Stock, Qty 20+

0

39

White Outdoor 634-04087

Wheel Assembly Complete, 15 x 6
(Superseded to 634-05067-0911)

Variations

White Outdoor 634-04087-0911

Wheel Assembly Complete - Carlisle Gray (0911)

$172.99

$

In Stock, only 4 left!

0

White Outdoor 634-04087-0914

Wheel Assembly Complete - Cheng Gray (0914)

$172.99

$

In Stock, only 4 left!

0

White Outdoor 634-04087-0994

Wheel Assembly Complete - Cheng White (0994)

$172.99

$

In Stock, only 4 left!

0

White Outdoor 634-04087-0941

USE 634-04086-0941 WHL ASM-CO - Carlisle Yellow (0941)

$160.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04087-0944

USE 634-04086-0941 WHL ASM-CO - Cheng Yellow (0944)

$160.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04087-0991

USE 634-04086-0991 WHL ASM-CO - Carlisle White (0991)

$172.99

$

Usually ships in 3-6 days

0

$172.99

$

In Stock, only 4 left!

0

White Outdoor 734-04040

Tire Only 15 x 6 x 6
(Superseded to 734-1731-0901)

Note: Not Shown

Variations

White Outdoor 734-04040-0904

TIRE - Cheng (0904)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081

Rim Only w/ Valve Stem
(Superseded to 934-04081)

Note: Not Shown

Variations

White Outdoor 634-04081-0499

RIM ASSY-FRONT - CUB BEIGE (0499)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-0662

Rim Assembly, Front Grey - OYSTER GRAY (0662)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-0674

RIM ASSY-FRONT - YARDMAN YELLOW (0674)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-4009

Rim Assembly, Front Tee White - TEE WHITE (4009)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-4042

RIM ASSY-FRONT - CRAFTSMAN GRAY (4042)

$98.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 741-0516B

BRG:FLG:.760 X 1.00 X 1.20 LG

Note: Not Shown

$5.99

$

In Stock, Qty 20+

0

White Outdoor 741-0990B

BRG:FLG:.760 ID W/GREASE FTG

Note: Not Shown

$9.99

$

In Stock, Qty 20+

0
