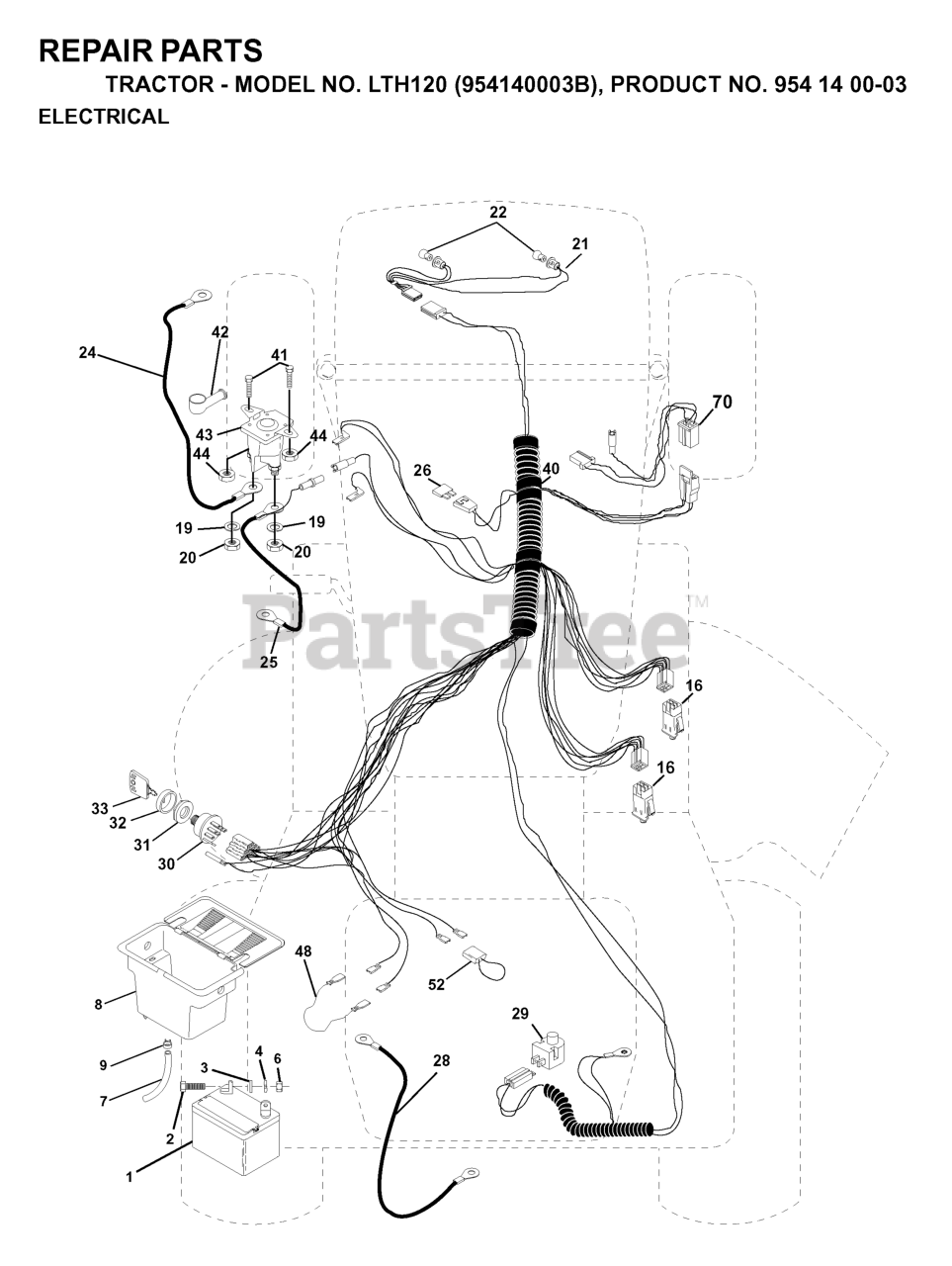

LTH 120 (954140003-B) - Husqvarna Lawn Tractor (1997-01) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 5

0

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$17.99

$

In Stock, only 2 left!

0

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146147

CABLE BATTERY

$53.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

COVER SWITCH KEY

$

$

Not available

26

Husqvarna 532108824

FUSE HYT

$

$

Not available

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$15.99

$

In Stock, Qty 6

0

28

Husqvarna 532124773

CABLE T
(Superseded to 532004207)

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532140301

SWITCH.IGNITION.4.POSITION

$39.99

$

In Stock, Qty 6

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$31.99

$

In Stock, Qty 20+

0

1

Husqvarna 532144925

BATTERY 12 VOLT 25 AMP
(Superseded to 532123899)

$205.99

$

In Stock, Qty 6

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$6.99

$

In Stock, only 3 left!

0

40

Husqvarna 532156442

HARNESS IGN

$59.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532124211

NUT IGNITION

$5.99

$

In Stock, only 1 left!

0

70

Husqvarna 532140413

HARNESS, ENGINE

$

$

Not available

3

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, only 2 left!

0

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$23.99

$

In Stock, Qty 20+

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873350400

NUT
(Superseded to 532050675)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532109596

HOSE CLAMP T

$

$

Not available

41

Husqvarna 871110408

BOLT
(Superseded to 596437001)

$3.99

$

In Stock, Qty 10

0

44

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

21

Husqvarna 532136850

HARNESS LIGHT SOCKET

$

$

Not available

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

33

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

4

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532109238

TUBE BATTERY DRAIN

$

$

Not available
