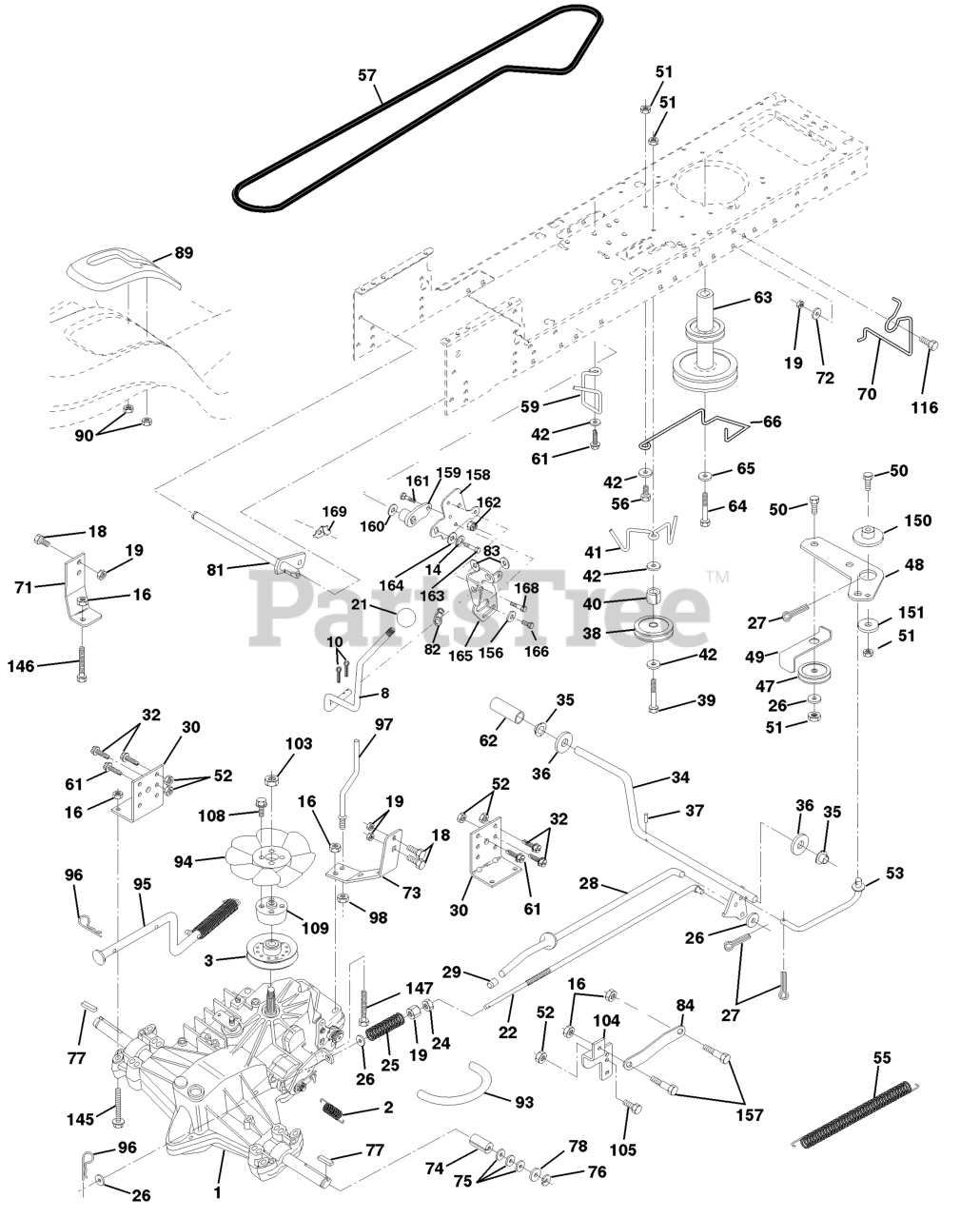

LTH 120 (954140003-F) - Husqvarna Lawn Tractor (1999-03) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle Hydro Gr. 319-0500

Note: (Order parts from transaxle manufacturer)

$

$

Not available

2

Husqvarna 532142431

SPRING BRAKE

$7.99

$

In Stock, only 1 left!

0

3

Husqvarna 532144698

PULLEY.4.20.HYDRO

$

$

Not available

8

Husqvarna 532165866

ROD SHIFT FENDER ADJUST STLT

$

$

Not available

10

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

18

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532145627

ROD BRAKE HYDRO

$250.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, only 2 left!

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$

$

Not available

32

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

SHAFT, FOOT PEDAL

$

$

Not available

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

$3.49

$

In Stock, Qty 15

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

38

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

39

Husqvarna 874760644

BOLT

$

$

Not available

40

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532165838

KEEPER.BELT.IDLER.FLAT

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

51

Husqvarna 873680600

LOCKNUT

$

$

Not available

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 20+

0

56

Husqvarna 874760620

BOLT

$5.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532141416

V-BELT

$68.99

$

In Stock, only 1 left!

0

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$22.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

63

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$125.99

$

Usually ships in 3-10 days

0

64

Husqvarna 871170764

BOLT
(Superseded to 501606501)

$3.49

$

In Stock, only 4 left!

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

66

Husqvarna 532154778

KEEPER BELT ENGINE
(Superseded to 531151001)

$9.49

$

In Stock, only 1 left!

0

70

Husqvarna 532134683

KEEPER BELT ENG
(Superseded to 531165301)

$7.99

$

In Stock, only 2 left!

0

71

Husqvarna 532141417

STRAP TORQUE LH HYDRO

$

$

Not available

72

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

73

Husqvarna 532141418

STRAP TORQUE RH HYDRO

$

$

Not available

74

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

75

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532165591

Shaft Asm Cross Tapered

$

$

Currently unavailable

82

Husqvarna 532165711

SHIFT SPRING

$6.49

$

In Stock, Qty 12

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532165816

Link Transaxle

$

$

Not available

89

Husqvarna 532166510

SHIFT CONSOLE
(Superseded to 532164890)

$22.99

$

In Stock, only 2 left!

0

90

Husqvarna 532124346

NUT.PUSH.3/16

$9.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532142564

LINE FUEL HYD 4"

$9.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532140462

FAN 7" HYDRO

$13.99

$

In Stock, only 2 left!

0

95

Husqvarna 532144643

CONTROL ARM, BYPASS HYDRO
(Superseded to 532167696)

$

$

Not available

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

97

Husqvarna 532144201

KEEPER BELT RH

$

$

Not available

98

Husqvarna 873510600

NUT

$

$

Not available

103

Husqvarna 873940800

NUT.HEX.1/2-20

$4.99

$

In Stock, only 1 left!

0

104

Husqvarna 532141421

ARM, CONTROL HYDRO

$

$

Not available

105

Husqvarna 871070516

SCREW

$7.99

$

Usually ships in 3-10 days

0

108

Husqvarna 817541026

SCREW

$

$

Not available

109

Husqvarna 532145098

ADAPTOR FAN HYDRO

$

$

Not available

116

Husqvarna 872110610

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 12

0

145

Husqvarna 874490540

BOLT
(Superseded to 596136501)

$4.99

$

Usually ships in 3-10 days

0

146

Husqvarna 874490536

Bolt Hex Flghd 5/16-18 x 2-1/4

$

$

Not available

147

Husqvarna 874490524

Bolt Hex Flghd 5/16-18 x 1-1/2

$

$

Not available

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, only 3 left!

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16
(Superseded to 596218801)

$2.49

$

Usually ships in 3-10 days

0

157

Husqvarna 532153236

BOLT SHOULDER 5/16-18
(Superseded to 587907801)

$3.49

$

In Stock, Qty 7

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$6.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$6.99

$

Usually ships in 3-10 days

0

160

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$9.49

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$

$

Not available

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

163

Husqvarna 874780416

BOLT
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga.

$

$

Not available

165

Husqvarna 532165623

RP BRACKET
(Superseded to 531149501)

$5.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

SCREW

$

$

Not available

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$9.49

$

In Stock, only 2 left!

0

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$7.99

$

Usually ships in 3-10 days

0
