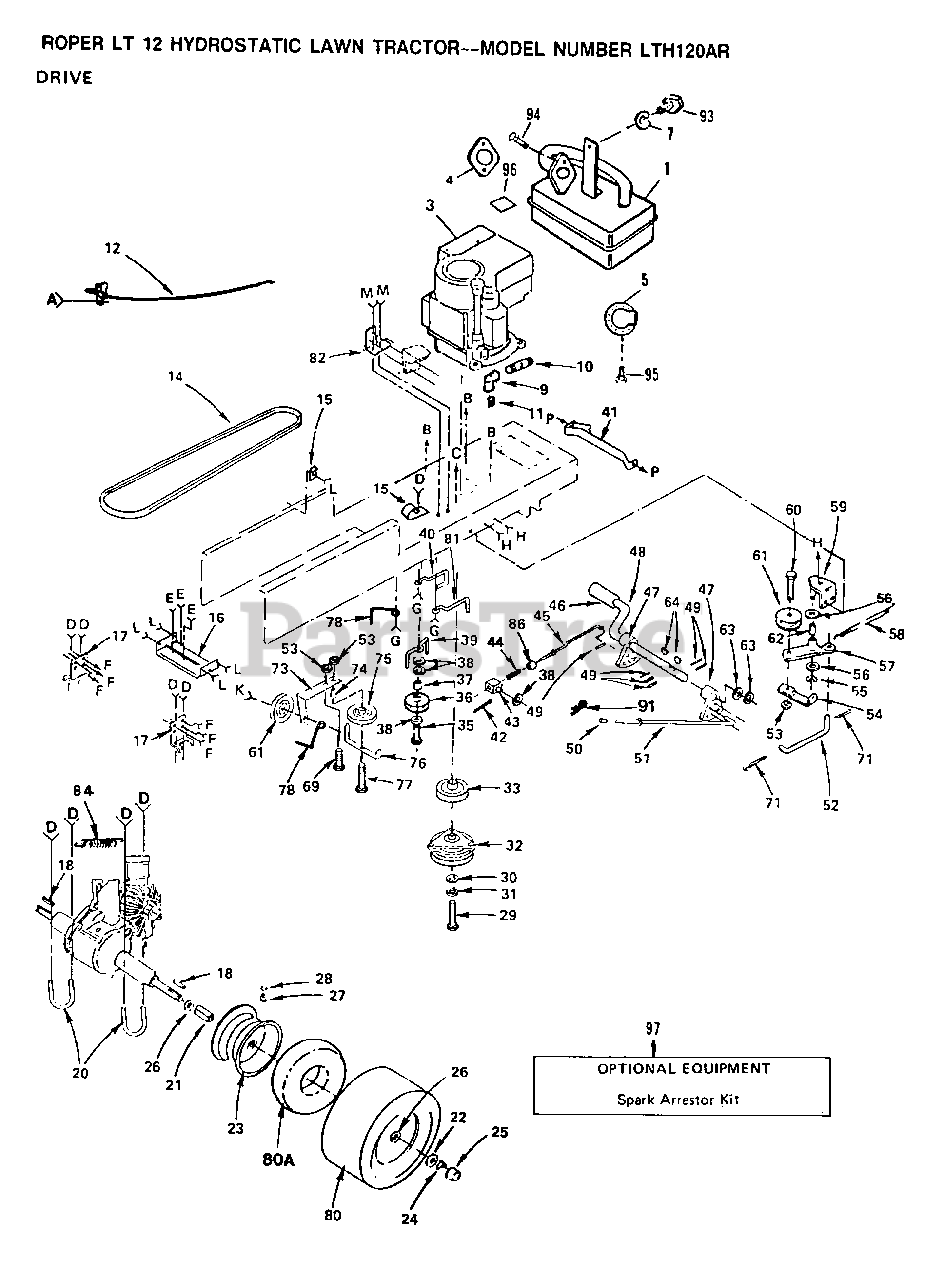

LTH 120 AR - Electrolux/AYP Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 120330X

MUFFLER LT
(Superseded to 532137348)

$119.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 281707

ENGINE 12 H.P. TYPE 0201-01

$

$

Not available

4

Electrolux/AYP 2949R

SUB= 272293
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

7

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 91084

PLUG OIL DRAIN

$

$

Not available

12

Electrolux/AYP 120583X

SUB= 132764

$

$

Not available

14

Electrolux/AYP 120418X

V BELT T
(Superseded to 583662201)

$

$

Not available

15

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

16

Electrolux/AYP 108191X

NLA

$

$

Not available

17

Electrolux/AYP 108094X

BRKT, TRANSAXLE

$

$

Not available

18

Electrolux/AYP 9396E

SQ KEY STD
(Superseded to 532009396)

$

$

Not available

20

Electrolux/AYP 108093X

U-BOLT HYT

$

$

Not available

21

Electrolux/AYP 108097X

SPACER HYT
(Superseded to 532108097)

$

$

Not available

22

Electrolux/AYP 19332616

WASHER T
(Superseded to 819332616)

$

$

Not available

23

Electrolux/AYP 108457X

RIM HYD

$

$

Not available

24

Electrolux/AYP 12000053

E RING HYT
(Superseded to 812000053)

$3.99

$

In Stock, only 4 left!

0

25

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 19332416

WASHER
(Superseded to 582734001)

$

$

Not available

27

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$4.99

$

In Stock, Qty 16

0

28

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$5.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 74610764

SUB= 71130768

$

$

Not available

30

Electrolux/AYP 108252X

WASHER T
(Superseded to 583655101)

$

$

Not available

31

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 108218X

SUB= 142600

$

$

Not available

33

Electrolux/AYP 109842X

PULLEY YTH

$

$

Not available

35

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$

$

Not available

36

Electrolux/AYP 4859J

SUB= 123674X

$

$

Not available

37

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$4.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$7.49

$

In Stock, Qty 13

0

39

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$

$

Not available

40

Electrolux/AYP 120136X

KEEPER BELT HYT

$

$

Not available

41

Electrolux/AYP 109169X

SUB= 109172X

$

$

Not available

42

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 108212X

TRUNION HYT
(Superseded to 532108212)

$

$

Not available

44

Electrolux/AYP 108661X

SPRING BRAKE HYT

$16.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 121091X

BRAKE ROD HY
(Superseded to 583664401)

$

$

Not available

46

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$5.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 106918X

ARM BRAKE LT
(Superseded to 583653301)

$

$

Not available

48

Electrolux/AYP 108096X

SHAFT, FOOT PEDAL

$

$

Not available

49

Murray 1572H

SUB= 2882J

$

$

Not available

50

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

In Stock, only 2 left!

0

51

Electrolux/AYP 105844X

SUB= 125637X

$

$

Not available

52

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$

$

Not available

54

Electrolux/AYP 106499X

SUB= 123205X

$

$

Not available

55

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$

$

Not available

56

Electrolux/AYP 110812X

WASHER LT
(Superseded to 532110812)

$

$

Not available

57

Electrolux/AYP 105705X

SUB= 125829X

$

$

Not available

58

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$14.99

$

In Stock, Qty 20+

0

59

Electrolux/AYP 105724X

SUB= 123102X

$

$

Not available

60

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$9.99

$

In Stock, Qty 6

0

61

Electrolux/AYP 106298X

SUB= 139245

$

$

Not available

62

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$6.99

$

In Stock, Qty 14

0

63

Electrolux/AYP 19252016

SUB= 121749X

$

$

Not available

64

Murray 2228M

SUB= 2228M1

$

$

Not available

69

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$

$

Not available

71

Electrolux/AYP 7602041273

No Desciption for Part

$

$

Not available

73

Electrolux/AYP 108214X

BRKT IDLER HYT
(Superseded to 583654801)

$

$

Not available

74

Electrolux/AYP 101279K

SPACER SPLIT LTV
(Superseded to 583639001)

$

$

Not available

75

Electrolux/AYP 105307X

IDLER.PULLEY.LT
(Superseded to 583645001)

$

$

Not available

76

Electrolux/AYP 108216X

KEEPER BELT HYT
(Superseded to 583654901)

$

$

Not available

77

Electrolux/AYP 74760648

BOLT - HEX 3/8 - 16 X 3
(Superseded to 583614301)

$

$

Not available

78

Electrolux/AYP 105597X

BELT RETAINER GT
(Superseded to 583646501)

$

$

Not available

80

Electrolux/AYP 106268X

SUB= 122074X
(Superseded to 532420531)

$101.99

$

Usually ships in 3-10 days

0

80A

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$65.99

$

In Stock, only 1 left!

0

81

Electrolux/AYP 120443X

BELT KEEPER T
(Superseded to 583662301)

$

$

Not available

82

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$

$

Not available

84

Electrolux/AYP 110422X

SUB= 146682

$

$

Not available

86

Electrolux/AYP 120622X004

No Desciption for Part

$

$

Not available

91

Murray 4939M

SUB= 85902

$

$

Not available

93

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

94

Electrolux/AYP 71070510

SCREW LT
(Superseded to 871070510)

$

$

Not available

95

Electrolux/AYP 17450808

SCREW LT
(Superseded to 817450808)

$

$

Not available

96

Electrolux/AYP 120601X

DECAL.ENG.271967
(Superseded to 532271967)

$

$

Not available

97

Electrolux/AYP 673A223

SCREEN
(Superseded to 532124835)

$

$

Not available
