LTH 125 (954002721-C) - Husqvarna Lawn Tractor (1996-04) Lift Parts Diagram

Lawn Tractor

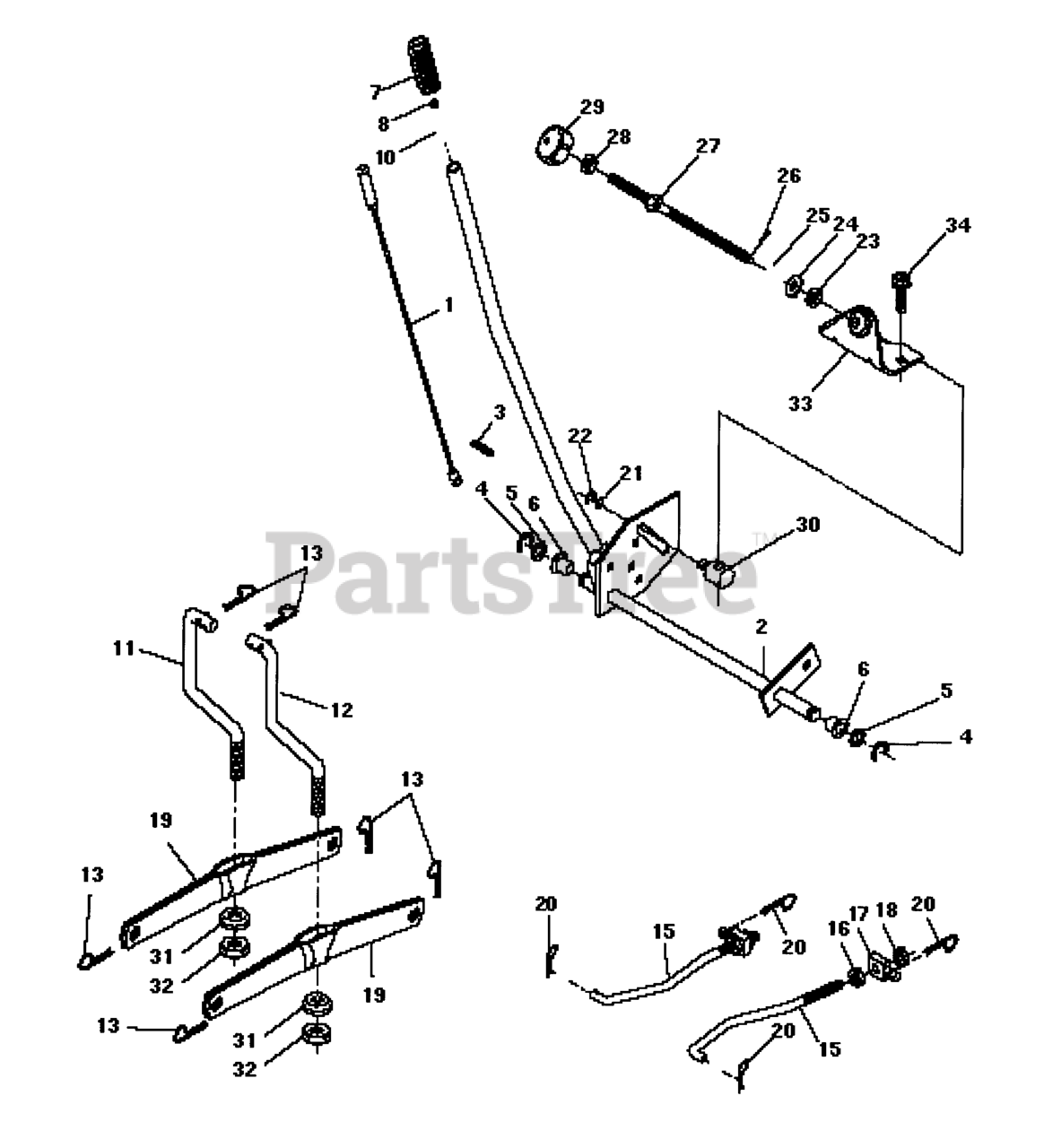

Lift Parts Diagram

  • Title

1

Husqvarna 532136973

WIRE.INNER.HANDLE.LIFT.LEVER

$

$

Not available

2

Husqvarna 532140278

SHAFT ASSY

$

$

Not available

3

Husqvarna 532138284

PIN GROOVE

$

$

Not available

4

Husqvarna 812000002

RETAINING RING LT

$3.49

$

In Stock, Qty 11

0

5

Husqvarna 819211621

WASHER

$5.99

$

In Stock, only 2 left!

0

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 532109413

GRIP

$

$

Not available

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

10

Husqvarna 532122512

SPRING, COMP T

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532139865

LINK LIFT LH
(Superseded to 532145537)

$28.99

$

In Stock, Qty 20+

0

12

Husqvarna 532139866

LINK LIFT RH
(Superseded to 532145536)

$28.99

$

In Stock, Qty 5

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

15

Husqvarna 532127218

FRONT LINK

$20.99

$

In Stock, only 4 left!

0

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13
(Superseded to 596433401)

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532139868

ARM.REAR.SUSPENSION
(Superseded to 531165801)

$13.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 819151216

Washer 15/32 X 3/4 X 16ga

$

$

Not available

22

Husqvarna 812000037

Ring Klip

$

$

Not available

23

Husqvarna 532110807

NUT T

$

$

Not available

24

Husqvarna 819131016

WASHER

$3.49

$

In Stock, only 4 left!

0

25

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 876020308

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532126971

ROD ADJ LIFT

$

$

Not available

28

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

29

Husqvarna 532138057

KNOB INF 3/8-16

$

$

Not available

30

Husqvarna 532110810

TRUNION LT

$

$

Not available

31

Husqvarna 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140168

BRACKET

$

$

Not available

34

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0
