LTH 126 (960410135-01) - Husqvarna Lawn Tractor (2010-01) ENGINE Parts Diagram

Lawn Tractor

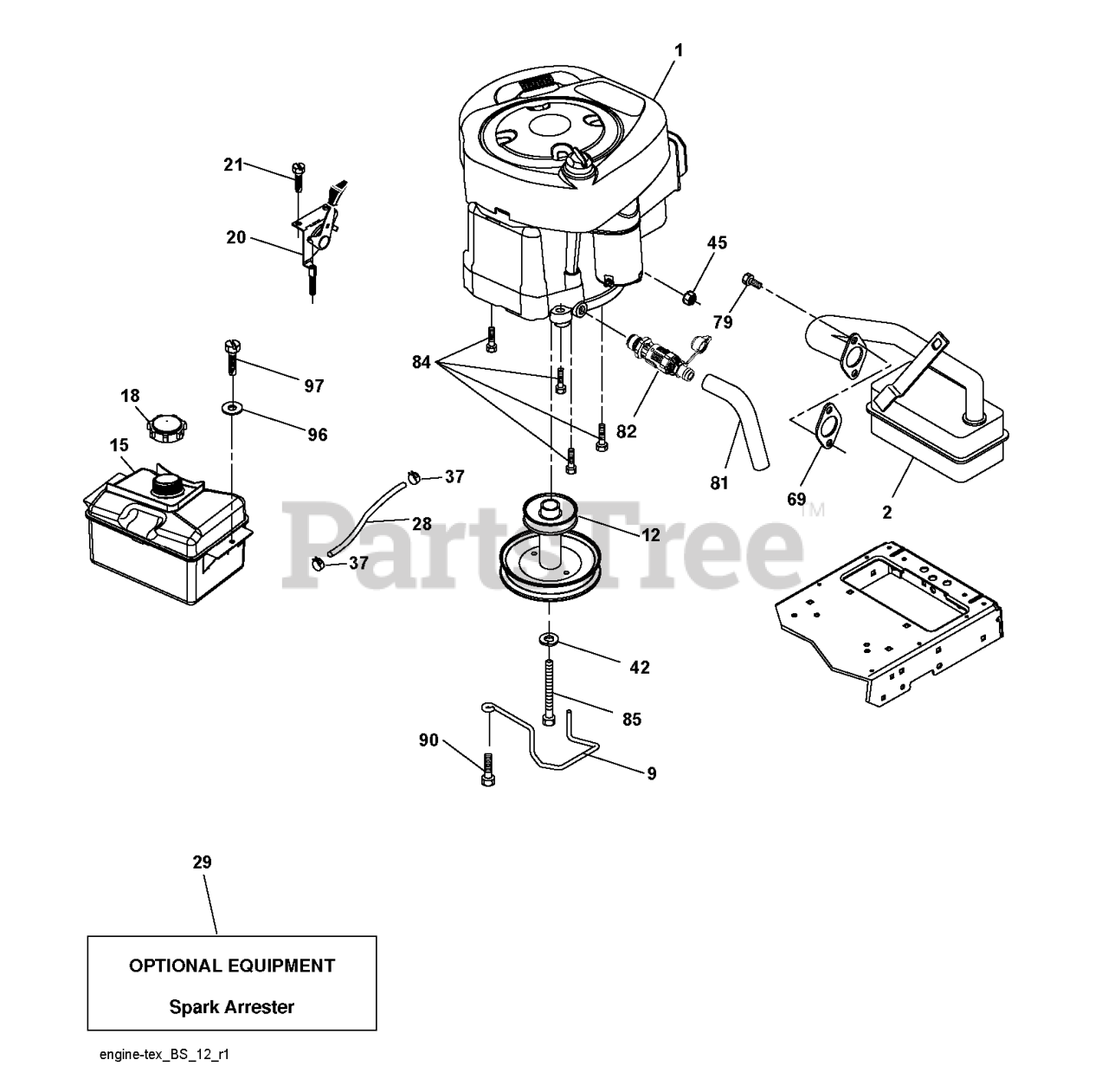

ENGINE Parts Diagram

  • Title

1

000000000

Note: Engine Briggs Model No. 219807-0389-B1

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

12

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$131.99

$

Usually ships in 3-10 days

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$35.99

$

In Stock, Qty 20+

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$62.99

$

In Stock, Qty 6

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, Qty 5

0

2

Husqvarna 532179758

MUFFLER.B&S.MODEL.21.11HP.OHV

$53.99

$

In Stock, Qty 19

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0
