LTH 126 (960410205-01) - Husqvarna Lawn Tractor (2011-07) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

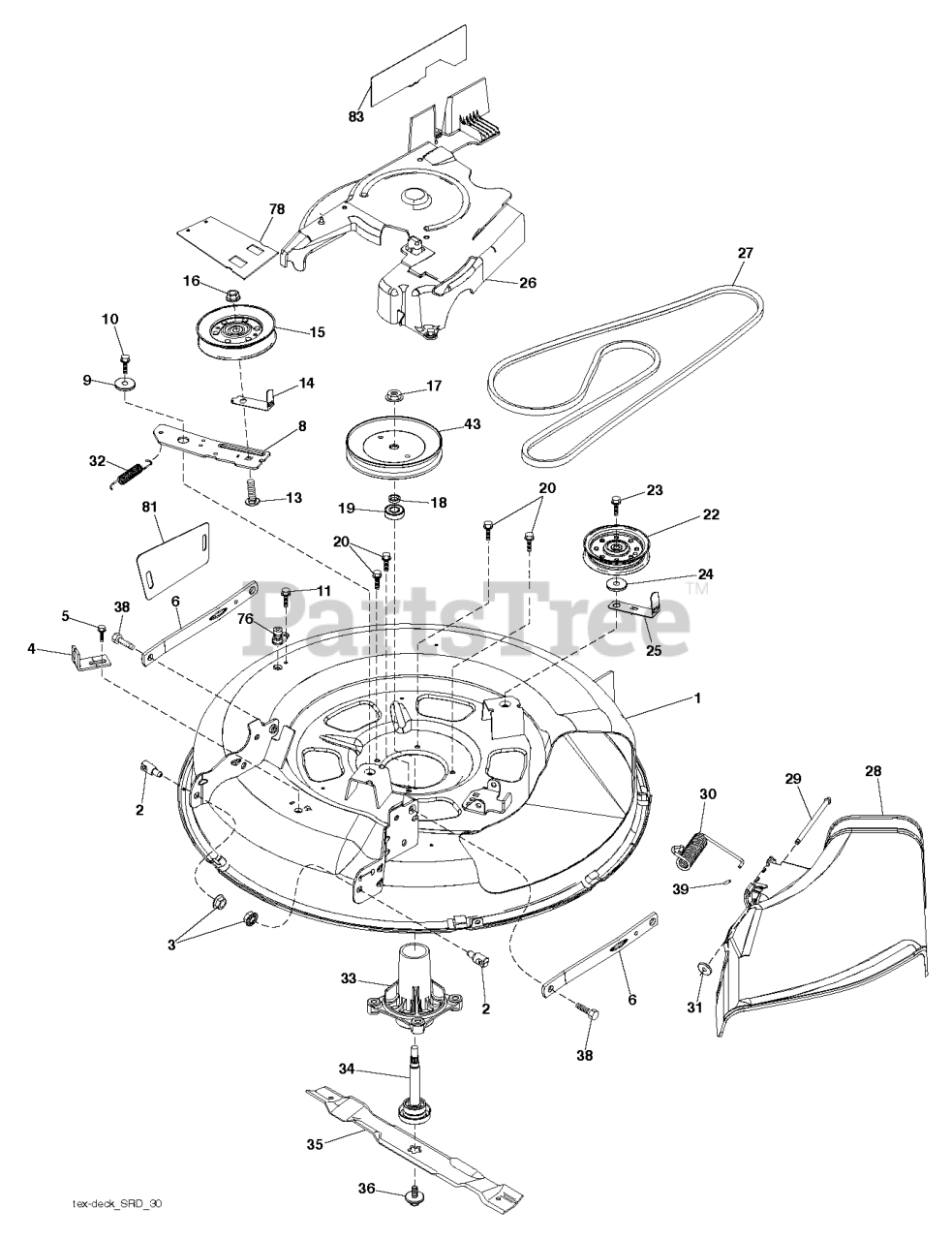

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532442048

DECK.WELDMENT.PNT.30"SRD
(Superseded to 532434487)

$299.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, Qty 7

0

3

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

4

Husqvarna 532417645

BRACKET.CLUTCH.CABLE

$9.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 18

0

6

Husqvarna 532418863

ARMS.SUSP.MOWER.REAR.SRD

$23.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532420252

ARM.IDLER.30"SRD
(Superseded to 583379801)

$9.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 20+

0

10

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 9

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

15

Husqvarna 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$39.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

19

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

20

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

$33.99

$

In Stock, only 3 left!

0

23

Husqvarna 817490628

SCREW LT
(Superseded to 599972501)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532420253

KEEPER.BELT.30"SRD
(Superseded to 529311701)

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532432466

COVER.ASM.MANDREL.30"
(Superseded to 583481101)

$65.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532419271

V-BELT.DRIVE.MOWER.30"

$53.99

$

In Stock, Qty 8

0

28

Husqvarna 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$47.99

$

In Stock, only 3 left!

0

29

Husqvarna 532420895

PIN.HINGE.30".SRD
(Superseded to 593885101)

$7.49

$

In Stock, only 4 left!

0

30

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$11.99

$

In Stock, Qty 20+

0

31

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$14.99

$

In Stock, Qty 20+

0

33

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

34

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

35

Husqvarna 532419273

BLADE, MULCH.LRV30

$39.99

$

In Stock, Qty 20+

0

36

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

38

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

39

Husqvarna 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 532416877

PULLEY, MANDREL 6.5 PD
(Superseded to 525568002)

$33.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

78

Husqvarna 532422566

GUARD ARM CLUTCH
(Superseded to 583394901)

$

$

Not available

81

Husqvarna 532425367

SHIELD SUSPENSION
(Superseded to 583419401)

$

$

Not available

83

Husqvarna 532432467

$

$

Not available

--

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: Mandrel Assembly (Includes Housing Shaft Assembly And Bearing Only- Pulley /Nut /Washer And Blade Bolt /Washers Not Included)

$71.99

$

In Stock, Qty 20+

0

--

Husqvarna 532438109

$

$

Currently unavailable
