LTH 13 (954001042-B) - Husqvarna Lawn Tractor (1995-01) Engine Parts Diagram

Lawn Tractor

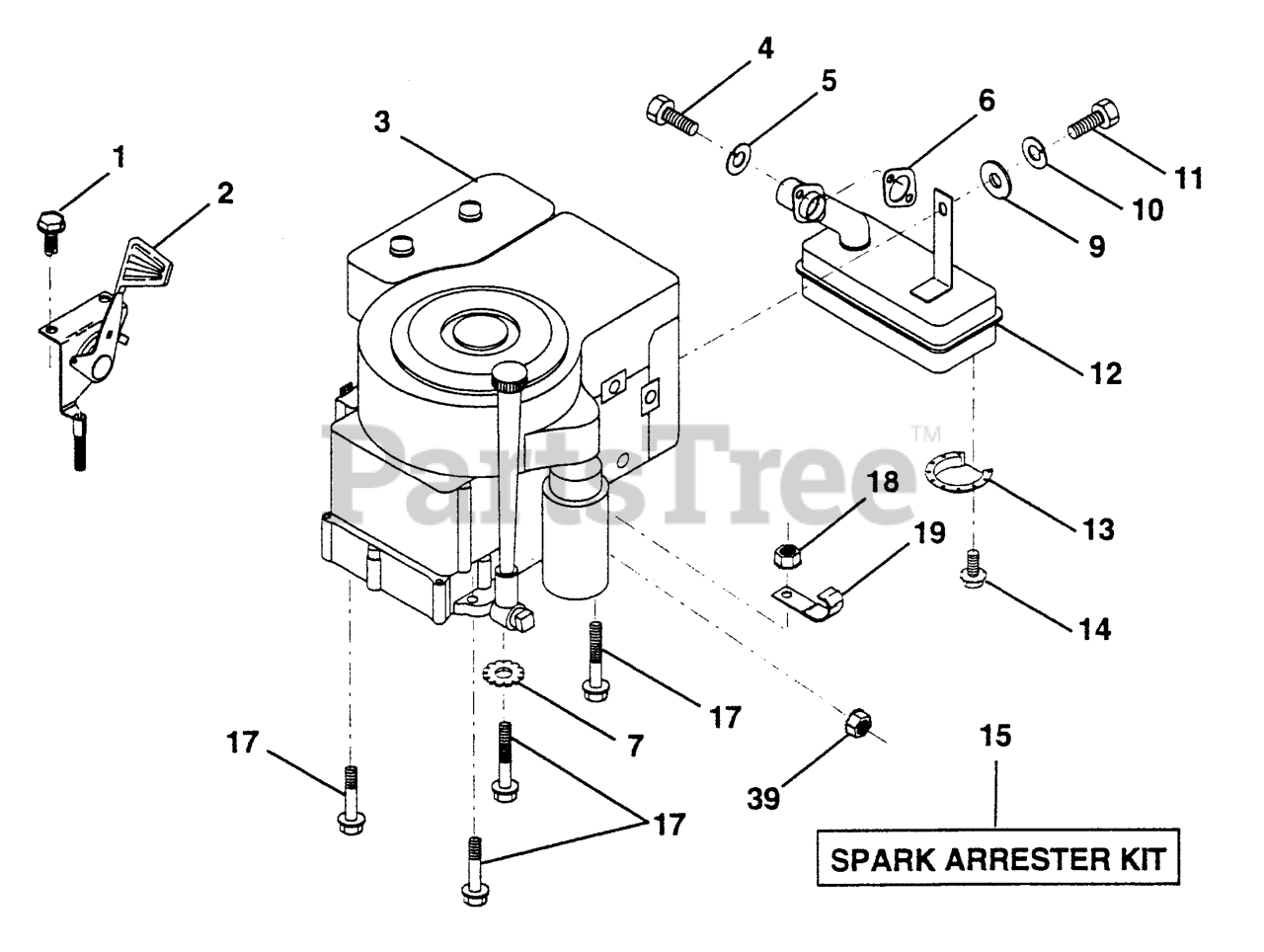

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

SCREW

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532133025

CONTROL.TH/CH.RH.BLK.FLG.EEC

$

$

Not available

3

Husqvarna 532145301

Engine, B&S, 13 HP, Vanguard Dual Model Number 28P777

$

$

Currently unavailable

4

UNKNOWN

$

$

Not available

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532125593

GASKET ENGINE
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

9

UNKNOWN

$

$

Not available

10

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

12

Husqvarna 532142380

MUFFLER NLA

$

$

Not available

13

Husqvarna 532144986

DEFLECTOR, MUFFLER
(Superseded to 532144987)

$

$

Not available

14

Husqvarna 817030808

SCREW
(Superseded to 532161464)

$

$

Not available

15

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

Note: (Optional Equipment)

$193.99

$

In Stock, only 1 left!

0

16

Husqvarna 532127951

STOP THROTTLE

$

$

Not available

17

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

18

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

19

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

24

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 874570512

Screw Hex SKT 5/16 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819091210

WASHER LT
(Superseded to 596039801)

$3.49

$

In Stock, only 1 left!

0

39

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0
