LTH 130 (954110061-C) - Husqvarna Lawn Tractor (2003-01) ELECTRICAL Parts Diagram

Lawn Tractor

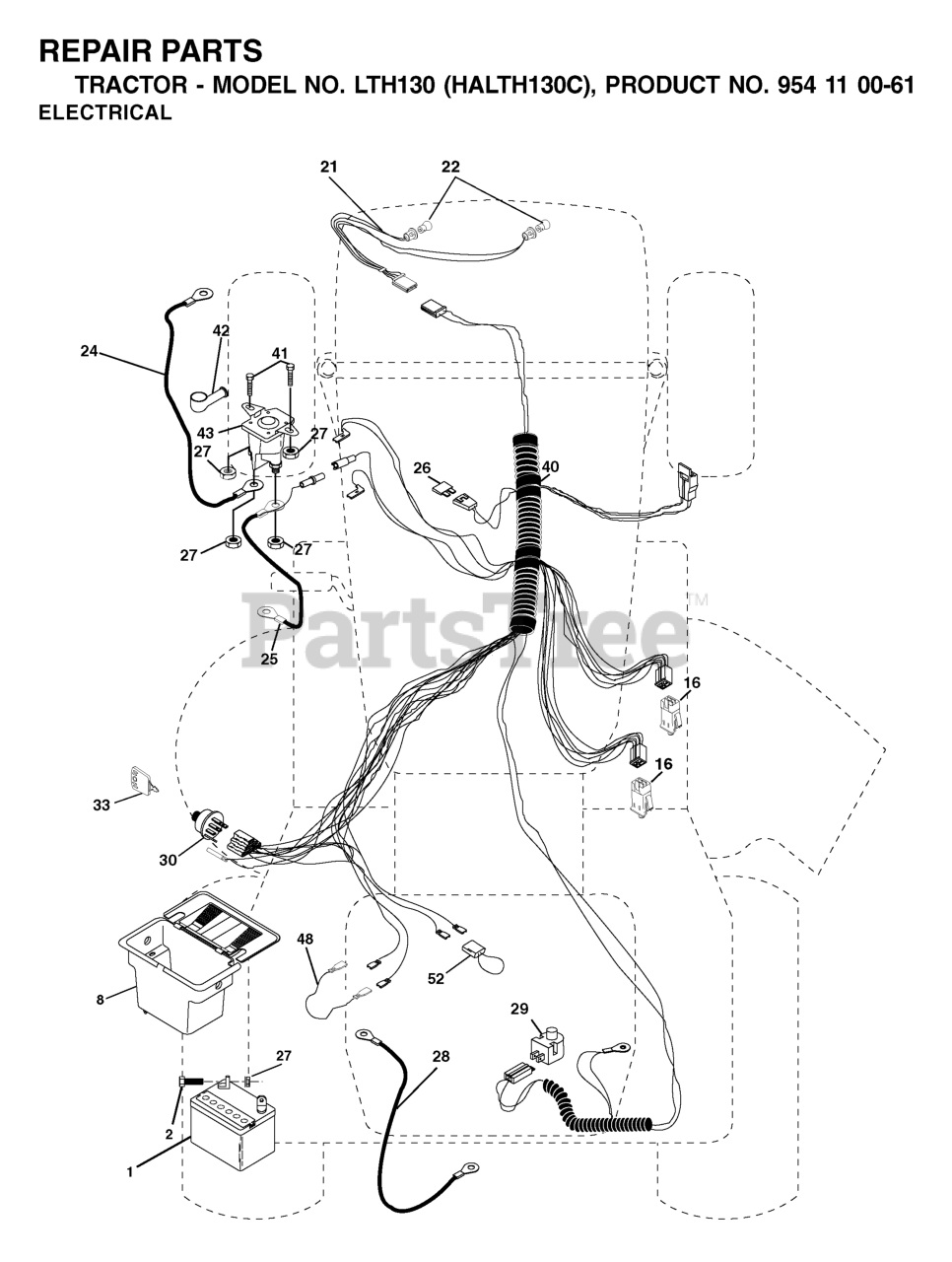

ELECTRICAL Parts Diagram

  • Title

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

28

Husqvarna 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

1

Husqvarna 532144925

BATTERY 12 VOLT 25 AMP
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

40

Husqvarna 532170217

HARNESS, IGN. LTH120
(Superseded to 532179720)

$120.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532166180

FUSE 15 AMP
(Superseded to 532175158)

$7.49

$

In Stock, Qty 11

0

21

Husqvarna 532166181

HARNESS

$

$

Not available

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532163968

SWITCH IGN
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0
