LTH 130 (954140005-A) - Husqvarna Lawn Tractor (1997-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

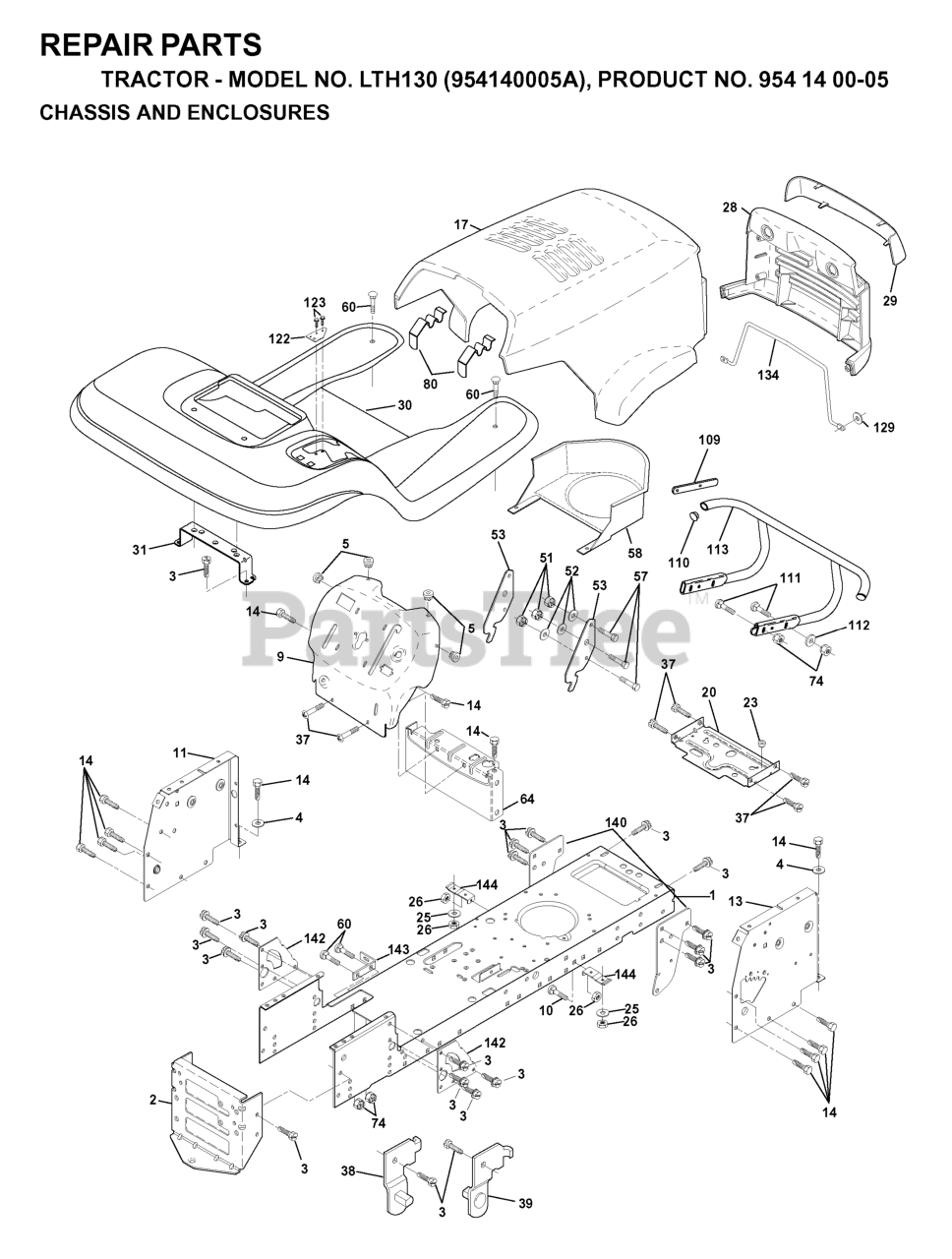

CHASSIS & ENCLOSURES Parts Diagram

  • Title

2

Husqvarna 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

129

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532156489

FENDER FOOTREST
(Superseded to 532192813)

$

$

Not available

60

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

1

Husqvarna 532153871

CHASSIS WELDMENT
(Superseded to 532160525)

$

$

Not available

28

Husqvarna 532149776

GRILLE LT/PL HUSQVARNA
(Superseded to 532156880)

$

$

Not available

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, Qty 5

0

134

Husqvarna 532150132

ROD SUPPORT HOOD LT/PL HUSQ

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

BRACKET RH PIVOT

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532156051

HOOD - LT/YT

$519.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 532157262

PANEL DASH RH
(Superseded to 532172107)

$

$

Not available

4

Husqvarna 819131216

Washer 13/32 X 3/4 X 16 Ga.

$

$

Not available

110

Husqvarna 532143679

PLUG PLASTIC

$2.99

$

Usually ships in 3-10 days

0

140

Husqvarna 532150556

BRACKET CHASSIS FRONT
(Superseded to 532158418)

$

$

Not available

23

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$6.99

$

In Stock, only 3 left!

0

53

Husqvarna 532150067

BRACKET PNT PICK OFF LT/PL

$

$

Not available

146

Husqvarna 532154334

SCREW TORX HD 5/16X18

$2.99

$

Usually ships in 3-10 days

0

111

Husqvarna 872140612

Bolt, Carriage 3/8-16 UNC x 1-1/2

$2.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532005479

PLUG BUTTON T

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532156437

PLATE MTG
(Superseded to 532180679)

$10.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.49

$

In Stock, Qty 10

0

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

64

Husqvarna 532154798

DASH LOWER

$31.99

$

Usually ships in 3-10 days

0

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

109

Husqvarna 532141461

BRACKET BUMPER
(Superseded to 532170310)

$

$

Not available

52

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532155854

LATCH HOOD

$3.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

112

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

144

Husqvarna 532154207

BRACKET FOOTREST
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532139886

BRACKET LH PIVOT

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532149777

LENS LT/PL HUSQVARNA

$

$

Not available

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

$10.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

14

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

142

Husqvarna 532156095

PLATE REINFORCEMENT
(Superseded to 532175702)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532155927

PANEL DASH LH
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0
