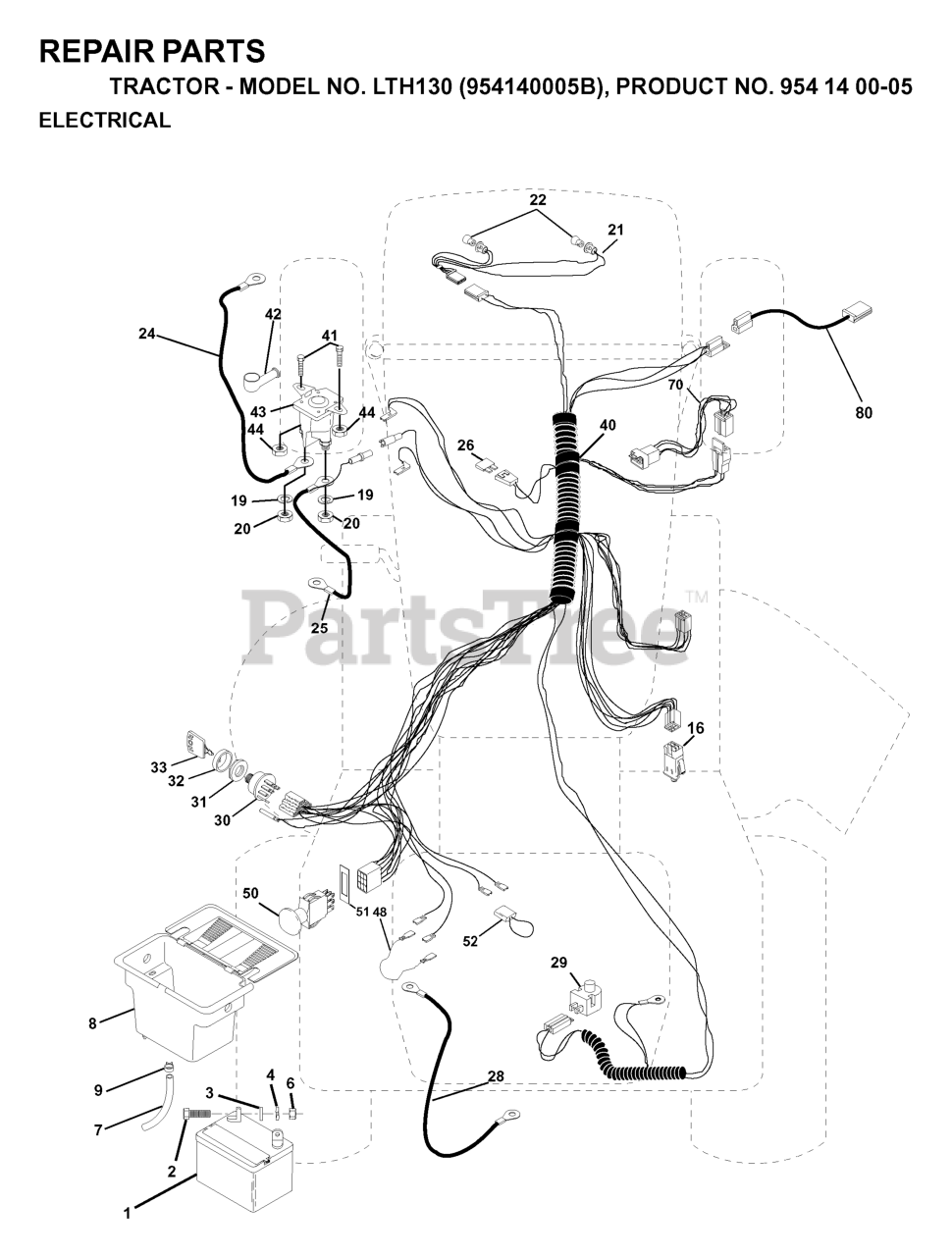

LTH 130 (954140005-B) - Husqvarna Lawn Tractor (1997-01) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

31

Husqvarna 532124211

NUT IGNITION

$4.99

$

In Stock, only 1 left!

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532146685

HARNESS, CLUTCH

$26.99

$

In Stock, only 3 left!

0

3

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

51

Husqvarna 532140405

FRAME RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

9

Husqvarna 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532136850

HARNESS LIGHT SOCKET

$

$

Not available

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

44

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

25

Husqvarna 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

COVER SWITCH KEY

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 3 left!

0

26

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

41

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532154959

SWITCH PTO 3 PDT
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

1

Husqvarna 532144925

BATTERY 12 VOLT 25 AMP
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

6

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

7

Husqvarna 532109238

TUBE BATTERY DRAIN

$

$

Not available

28

Husqvarna 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

70

Husqvarna 532142621

HARNESS ENG. KOHLER

$

$

Not available
