LTH 130 (954140005-G) - Husqvarna Lawn Tractor (1998-07) Engine Parts Diagram

Lawn Tractor

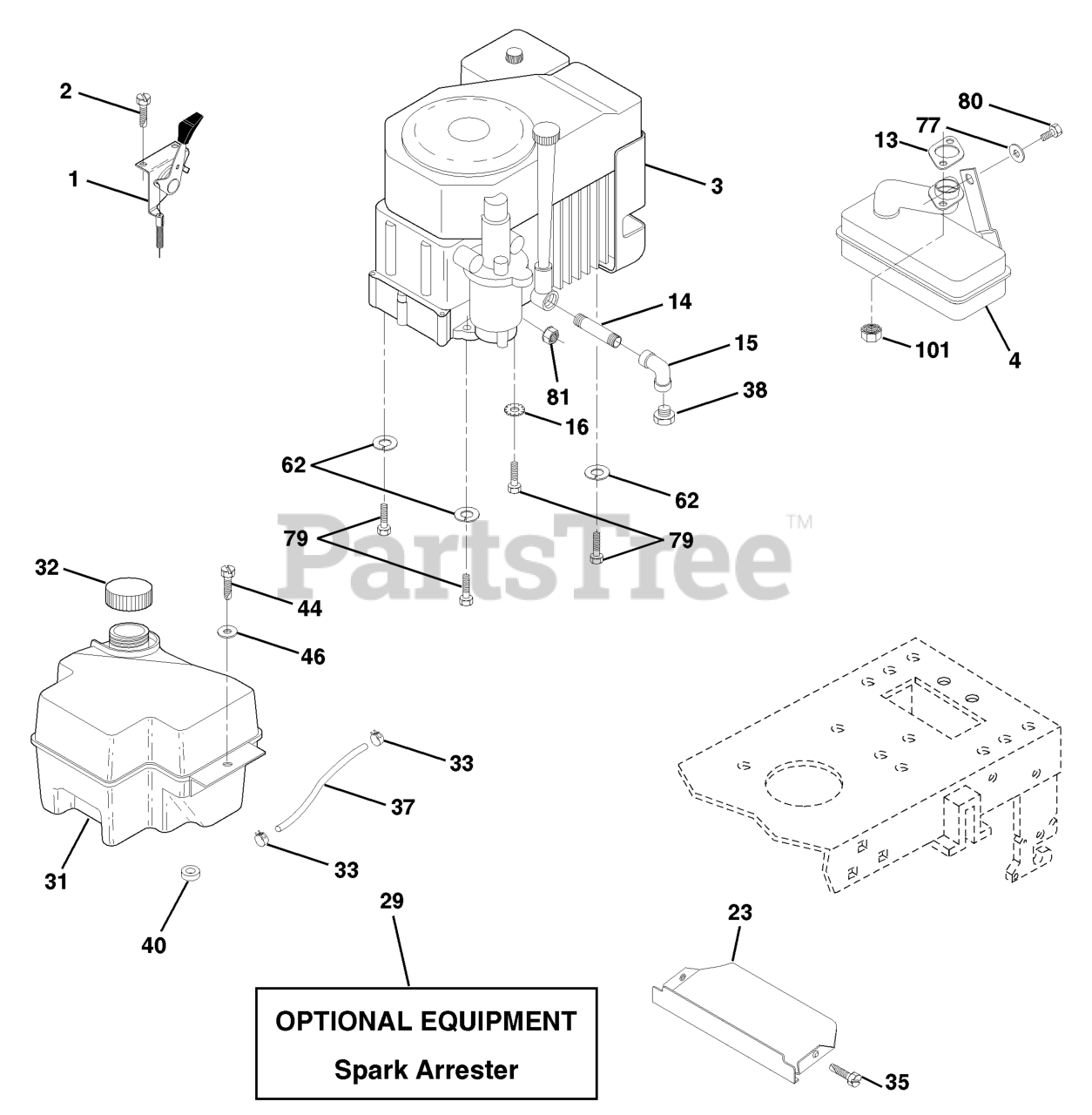

Engine Parts Diagram

  • Title

1

Husqvarna 532141296

CONTROL SWITCH 27 LH
(Superseded to 532170805)

$

$

Not available

2

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

3

Engine Kohler CV15S

$

$

Not available

4

Husqvarna 532137350

MUFFLER LT 12.5
(Superseded to 532159420)

$125.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532163831

KOHLER GASKET

$

$

Not available

14

Husqvarna 813280328

Nipple Pipe 3/8 Npt X 3-1/2

$

$

Not available

15

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 532159880

PROTECTOR

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

31

Husqvarna 532161911

FUEL TANK
(Superseded to 532180645)

$

$

Not available

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 10

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

40

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 1 left!

0

44

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$3.99

$

In Stock, Qty 6

0

46

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

62

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

77

Husqvarna 819101216

WASHER
(Superseded to 734115441)

$3.49

$

In Stock, Qty 20+

0

79

Husqvarna 532125398

BOLT, HEX
(Superseded to 740108025)

$

$

Not available

80

Husqvarna 874760508

Bolt Hex Hd 5/16-18 UNC x 1/2

$

$

Not available

81

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

101

Husqvarna 532163305

FLANGE NUT
(Superseded to 596433401)

$3.49

$

In Stock, Qty 6

0
