LTH 130 (954140005-H) - Husqvarna Lawn Tractor (1998-07) Drive Parts Diagram

Lawn Tractor

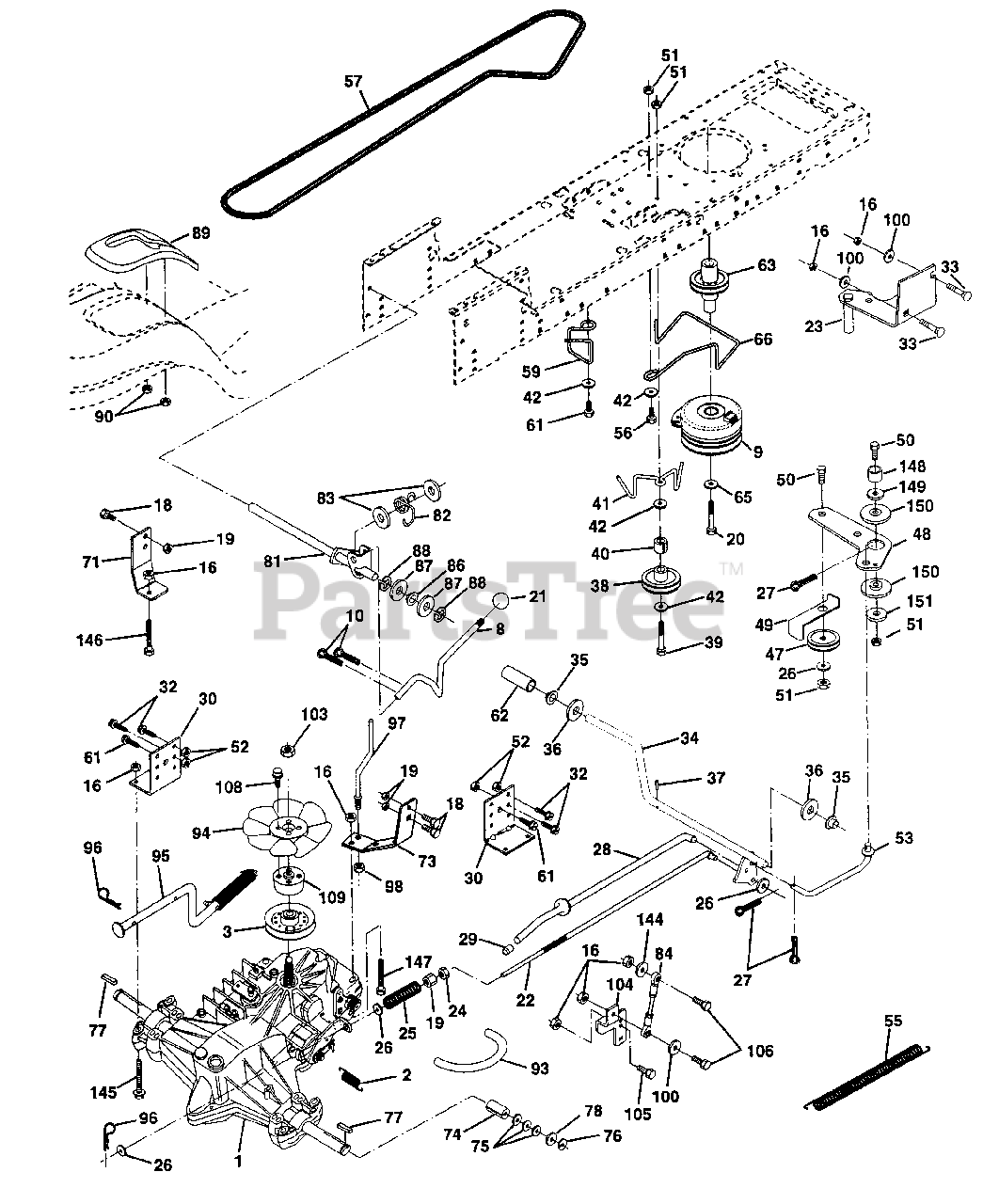

Drive Parts Diagram

  • Title

1

Transaxle

Note: See "Hydro Gear Transaxle - Model No. 319-0500" illustration and parts list.

$

$

Not available

2

Husqvarna 532142431

Spring, Return, Brake

$7.99

$

In Stock, only 1 left!

0

3

Husqvarna 532144698

Pulley, Transaxle

$

$

Not available

8

Husqvarna 532154792

Rod Shift Fender STLT

$

$

Not available

9

Husqvarna 532145028

Clutch, Elect. EVX LT Mag 5217-2

$

$

Not available

10

Husqvarna 876020416

Pin Cotter 1/8 x 1 CAD
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

Nut Lock Hex W/Ins. 5/16-18 Unc P

$

$

Not available

18

Husqvarna 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 873800600

Nut Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$

$

Not available

20

Husqvarna 532150280

Bolt Hex 7/16-20 x 4-1/4 Ga. 1.38
(Superseded to 501606501)

$3.49

$

In Stock, Qty 14

0

21

Husqvarna 532121274

Knob, Duckhead 1/2-13

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532145627

Rod, Brake Hydro

$250.99

$

In Stock, only 1 left!

0

23

Husqvarna 532154978

Bracket, Asm Clutch Mtg EVX

$

$

Not available

24

Husqvarna 873350600

Nut
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

Spring, Brake Rod
(Superseded to 532151332)

$5.99

$

In Stock, Qty 5

0

26

Husqvarna 819131316

Washer
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

28

Husqvarna 532145204

Rod, Parking Brake

$

$

Not available

29

Husqvarna 532071673

Cap, Parking Brake

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 532130807

Bracket, Transaxle

$

$

Not available

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18 Unc x 3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

Shaft, Foot Pedal

$

$

Not available

35

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, Qty 17

0

36

Husqvarna 819211616

Washer
(Superseded to 596933401)

$3.49

$

In Stock, only 2 left!

0

37

Husqvarna 532124963

Pin, Roll
(Superseded to 532001572)

$4.99

$

In Stock, Qty 5

0

38

Husqvarna 532123674

Pulley, Idler, Flat

$31.99

$

In Stock, only 2 left!

0

39

Husqvarna 874760644

Bolt

$

$

Not available

40

Husqvarna 532124965

Spacer, Split

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532154777

Keeper, Belt Idler
(Superseded to 532165838)

$

$

Not available

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

Pulley, Idler, V-Groove
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

48

Husqvarna 532154407

Bellcrank Clutch Grnd Drv Stl

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

Retainer, Belt
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 874760624

Bolt
(Superseded to 874930624)

$9.49

$

In Stock, Qty 8

0

51

Husqvarna 873680600

Nut

$

$

Not available

52

Husqvarna 873680500

Nut Crownlock 5/16-18
(Superseded to 873690500)

$

$

Not available

53

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring, Return, Clutch

$13.99

$

In Stock, Qty 16

0

56

Husqvarna 874760620

Bolt Fin Hex 3/8-16 UNC x 1-1/4

$5.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532141416

Y-Belt, Ground Drive

$68.99

$

In Stock, only 1 left!

0

59

Husqvarna 532140312

Keeper, Center Span
(Superseded to 532169691)

$22.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

Screw Thdrol. 3/8-16 x 3/4 Ty. TT
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

Cover, Pedal
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

63

Husqvarna 532145868

Pulley, Clutch Electric EVX

$96.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

Washer
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

66

Husqvarna 532154778

Keeper Belt Engine Hydro
(Superseded to 531151001)

$9.49

$

In Stock, only 2 left!

0

71

Husqvarna 532141417

Strap Torque Lh Hydro

$

$

Not available

73

Husqvarna 532141418

Strap Torque Rh Hydro

$

$

Not available

74

Husqvarna 532121199

Spacer, Split

$

$

Not available

75

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$2.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

E-Ring

$3.49

$

In Stock, Qty 18

0

77

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532156048

Shaft Asm. Cross Hydro

$

$

Not available

82

Husqvarna 532123782

Spring Torsion T/A

$

$

Not available

83

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532141423

Rod, Tie Hydro

$

$

Not available

86

Husqvarna 532157480

Bushing Rod Steering 629/632 ID

$

$

Not available

87

Husqvarna 819212016

Washer 21/32 x 1-1/4 x 16 Ga.

$

$

Not available

88

Husqvarna 812000008

Ring Klip #5304-62

$9.49

$

In Stock, Qty 10

0

89

Husqvarna 532158388

Console, Shift
(Superseded to 532164890)

$22.99

$

In Stock, only 3 left!

0

90

Husqvarna 532124346

Nut, Self-Thd Wsh-hd 1/4 Zinc

$9.49

$

In Stock, only 1 left!

0

93

Husqvarna 532142564

Line Fuel Hydro 4"

$9.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532140462

Fan, Hydro 7"

$13.99

$

In Stock, only 4 left!

0

95

Husqvarna 532144643

Control Asm Bypass Hydro
(Superseded to 532167696)

$

$

Not available

96

Husqvarna 532124788

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

97

Husqvarna 532144201

Keeper Belt Rh Hydro

$

$

Not available

98

Husqvarna 873510600

Nut Keps Hex 3/8-16 Unc

$

$

Not available

100

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

103

Husqvarna 873940800

Nut Nylon Insert 1/2-20 Unf.

$4.99

$

In Stock, Qty 7

0

104

Husqvarna 532141421

Arm, Control Hydro

$

$

Not available

105

Husqvarna 871070516

Screw Cap Hex 5/16 x 18 x 1

$7.99

$

Usually ships in 3-10 days

0

106

Husqvarna 874780520

Bolt Fin Hex 5/16-18 Unc x 1-1/4
(Superseded to 595305701)

$4.99

$

In Stock, Qty 14

0

108

Husqvarna 817541026

Screw Hex Wh Hd #10-24 x

$

$

Not available

109

Husqvarna 532145098

Adaptor Fan Hydro LT Hyd Alum

$

$

Not available

144

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

145

Husqvarna 874490540

Bolt, Hex Flghd 5/16-18 Gr. 5
(Superseded to 596136501)

$4.99

$

Usually ships in 3-10 days

0

146

Husqvarna 874490536

Bolt Hex Flghd 5/16-18 x 2-1/4

$

$

Not available

147

Husqvarna 874990524

Bolt Hex Flghd 5/16-18 x 1-1/2

$

$

Currently unavailable

148

Husqvarna 532159103

Spacer

$

$

Not available

149

Husqvarna 532122052

Spacer Retainer PM Mower
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

150

Husqvarna 532150935

Bushing Nylon Collered

$

$

Not available

151

Husqvarna 819133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 17

0
