LTH 130 (954140005-J) - Husqvarna Lawn Tractor (1998-10) STEERING Parts Diagram

Lawn Tractor

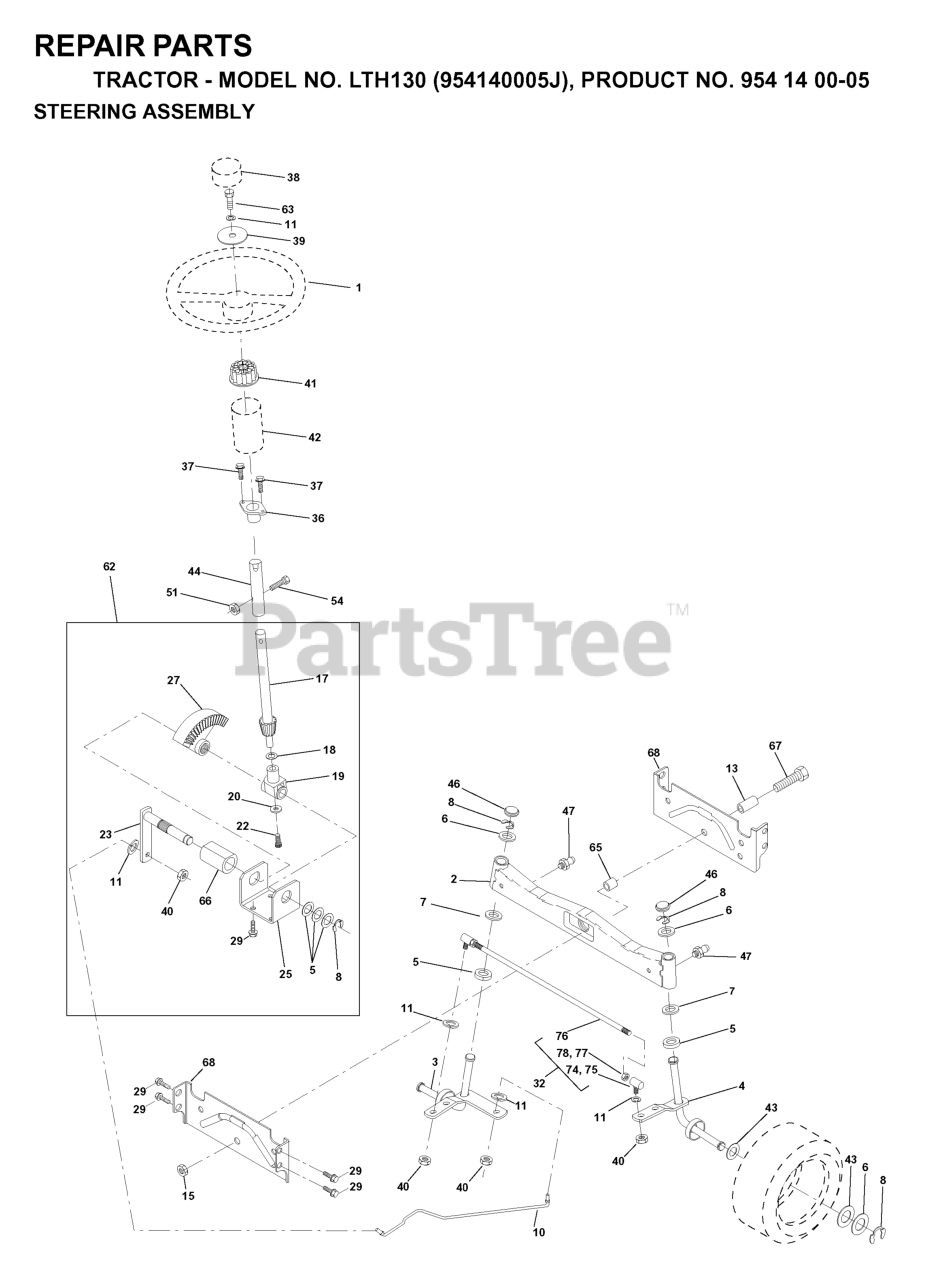

STEERING Parts Diagram

  • Title

3

Husqvarna 532157479

SPINDLE ASM LH

$

$

Not available

20

Husqvarna 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

13

Husqvarna 532154779

BEARING AXLE

$10.99

$

Usually ships in 3-10 days

0

54

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532155099

BUSHING, STEERING
(Superseded to 532155106)

$9.99

$

In Stock, Qty 20+

0

37

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 18

0

6

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

76

Husqvarna 532137156

TIE ROD
(Superseded to 532186799)

$87.99

$

In Stock, only 2 left!

0

77

Husqvarna 873700600

NUT

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124701

GRIPCO NUT
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

75

Husqvarna 532109851

JOINT.LH

$31.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532154429

AXLE, BRACE

$21.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

42

Husqvarna 532155092

BOOT, STEERING
(Superseded to 532145054)

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 871200410

SCREW HEX SOCKET 1/4-20 X 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 532157478

SPINDLE ASM RH

$

$

Not available

29

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

39

Husqvarna 819133808

WASHER T
(Superseded to 819133812)

$

$

Not available

74

Husqvarna 532109850

JOINT
(Superseded to 532121160)

$24.99

$

In Stock, only 2 left!

0

18

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 19

0

51

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532137347

ROD ASSY/TIE BALL
(Superseded to 532186799)

$87.99

$

In Stock, only 2 left!

0

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

2

Husqvarna 532137094

FRONT AXLE ASSY
(Superseded to 532178557)

$

$

Not available

15

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532154432

LINK.DRAG.DROPPED.LT

$93.99

$

In Stock, Qty 5

0

27

Husqvarna 532136874

GEAR.SECTOR

$80.99

$

In Stock, Qty 5

0

67

Husqvarna 874781044

Bolt, Hex 5/8 -11 x 2 - 3/4 Gr. 5

$

$

Not available

8

Husqvarna 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$9.99

$

In Stock, Qty 20+

0

47

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

65

Husqvarna 532154780

SPACER AXLE

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532156546

SHAFT ASM STEERING
(Superseded to 531166901)

$47.99

$

In Stock, Qty 13

0

43

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

1

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

66

Husqvarna 532154404

BEARING ARM

$6.49

$

In Stock, Qty 5

0

63

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532156594

KIT, STEERING ASSEMBLY
(Superseded to 584371701)

$133.99

$

In Stock, only 1 left!

0

25

Husqvarna 532154406

BRACKET STEERING

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 819272016

WASHER

$6.49

$

In Stock, only 4 left!

0

78

Husqvarna 873360600

NUT

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532127501

SHAFT PITMAN
(Superseded to 532156365)

$

$

Not available
