LTH 130 (954140005-J) - Husqvarna Lawn Tractor (1999-01) Mower Lift Parts Diagram

Lawn Tractor

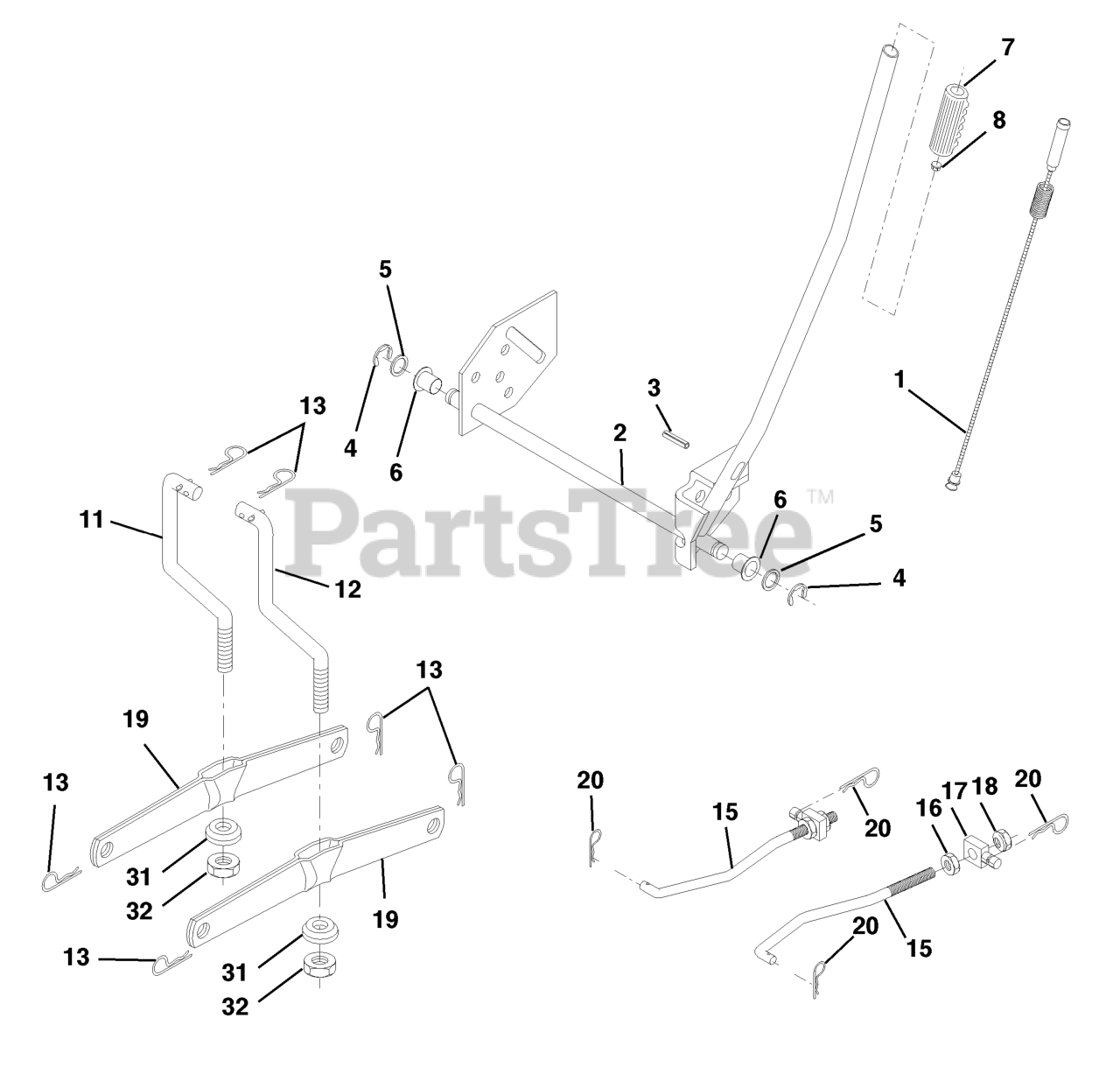

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532159460

WIRE ASM INNER W/ PLUNGER LT

$29.99

$

In Stock, Qty 6

0

2

Husqvarna 532159471

SHAFT ASM R HANDLE
(Superseded to 529845601)

$65.99

$

In Stock, Qty 5

0

3

Husqvarna 532105767

PIN GROOVE.

$5.99

$

In Stock, Qty 12

0

4

Husqvarna 812000002

RETAINING RING LT

$3.99

$

In Stock, Qty 11

0

5

Husqvarna 819211621

WASHER

$5.99

$

In Stock, only 2 left!

0

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 532109413

GRIP

$

$

Not available

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

11

Husqvarna 532139865

LINK LIFT LH
(Superseded to 532145537)

$28.99

$

In Stock, Qty 20+

0

12

Husqvarna 532139866

LINK LIFT RH
(Superseded to 532145536)

$28.99

$

In Stock, Qty 5

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

15

Husqvarna 532127218

FRONT LINK

$21.99

$

In Stock, only 4 left!

0

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13
(Superseded to 596433401)

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Husqvarna 873680800

NUT LTV
(Superseded to 596433401)

$3.99

$

In Stock, only 2 left!

0

19

Husqvarna 532139868

ARM.REAR.SUSPENSION
(Superseded to 531165801)

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

In Stock, Qty 20+

0
