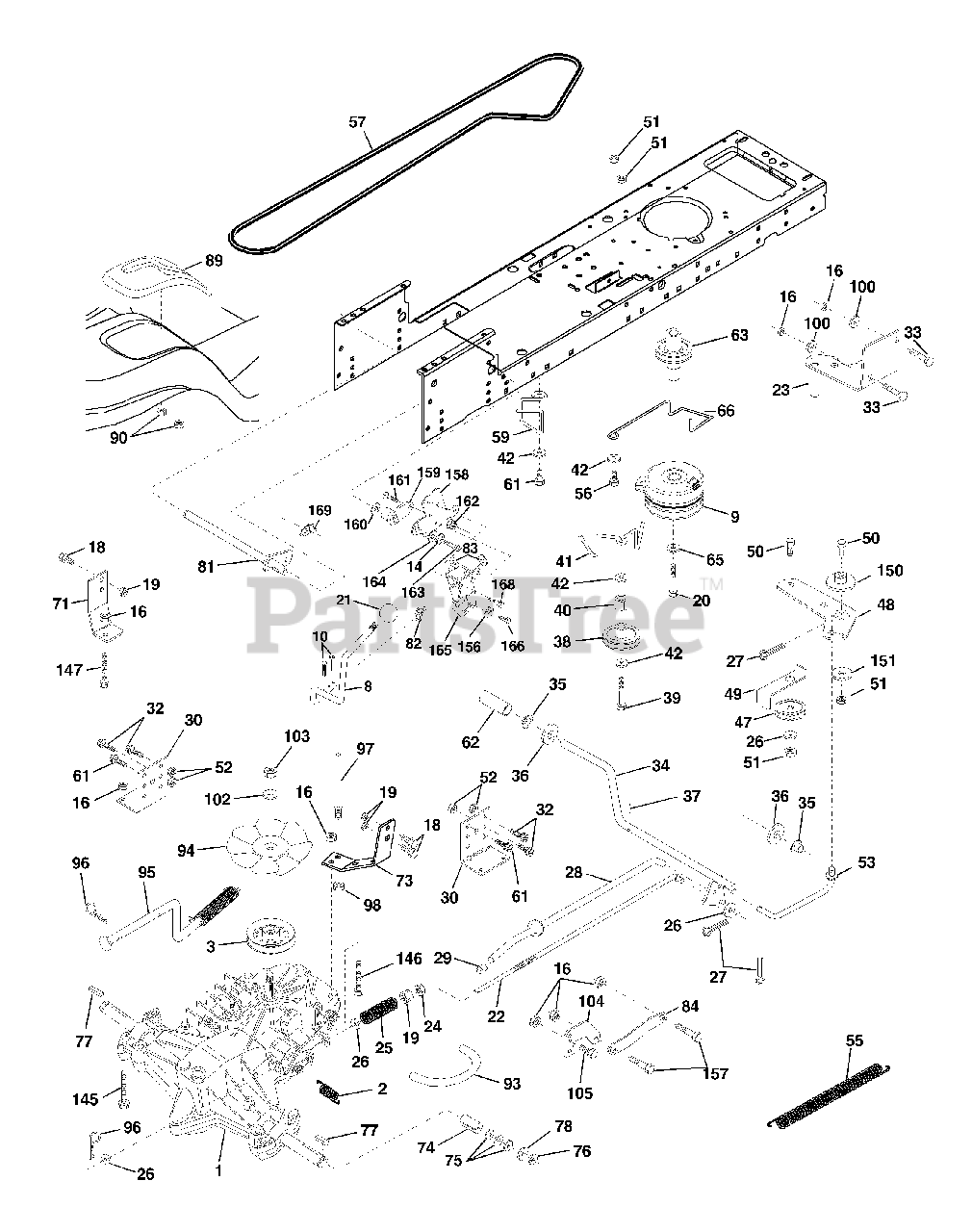

LTH 130 (954140005-K) - Husqvarna Lawn Tractor (1999-03) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle

Note: (See Breakdown) Hydro Gear, Model No. 319-0500

$

$

Not available

2

Husqvarna 532142431

Spring, Return, Brake

$8.99

$

In Stock, only 1 left!

0

3

Husqvarna 532144698

Pulley, Transaxle

$

$

Not available

8

Husqvarna 532165866

Rod Shift Fender Adjust STLT

$

$

Not available

9

Husqvarna 532145028

Clutch, Elect. EVX LT Mag 5217-2

$364.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

Pin Cotter 1/8 x 1 CAD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

Washer Lock Hvy Helical
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 873800500

Nut Lock Hex W/Ins. 5/16-18 Unc P

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532150280

Bolt Hex 7/16-20 x 4-1/4 Ga. 1.38
(Superseded to 532173937)

$4.99

$

In Stock, Qty 11

0

21

Husqvarna 532121274

Knob, Duckhead 1/2-13

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532145627

Rod, Brake Hydro

$157.99

$

In Stock, only 1 left!

0

23

Husqvarna 532154978

Bracket, Asm Clutch Mtg EVX

$

$

Not available

24

Husqvarna 873350600

Nut
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

25

Husqvarna 532106888

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

26

Husqvarna 819131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532145204

Rod, Parking Brake

$

$

Not available

29

Husqvarna 532071673

Cap, Parking Brake

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532130807

Bracket, Transaxle

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18 Unc x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

Shaft, Foot Pedal

$24.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

Bearing, Nylon

$6.49

$

In Stock, Qty 7

0

36

Husqvarna 819211616

Washer

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin, Roll
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

39

Husqvarna 874760644

Bolt

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532165838

Keeper, Belt Idler

$

$

Not available

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

Pulley, Idler, V-Groove
(Superseded to 532139245)

$34.99

$

In Stock, Qty 9

0

48

Husqvarna 532154407

Bellcrank Clutch Grnd Drv Stl

$8.99

$

In Stock, only 1 left!

0

49

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

Bolt
(Superseded to 874930624)

$

$

Not available

51

Husqvarna 873680600

Nut

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring, Return, Clutch

$10.99

$

In Stock, Qty 20+

0

56

Husqvarna 874760620

Bolt Fin Hex 3/8-16 UNC x 1-1/4

$7.49

$

In Stock, only 3 left!

0

57

Husqvarna 532141416

V-Belt, Ground Drive

$60.99

$

In Stock, only 2 left!

0

59

Husqvarna 532140312

Keeper, Center Span
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

Screw Thdrol. 3/8-16 x 3/4 Ty. TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

63

Husqvarna 532145868

Pulley, Clutch Electric EVX

$100.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

Washer
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532154778

Keeper Belt Engine Hydro

$12.99

$

In Stock, only 1 left!

0

71

Husqvarna 532141417

Strap Torque Lh Hydro

$

$

Not available

73

Husqvarna 532141418

Strap Torque Rh Hydro

$

$

Not available

74

Husqvarna 532121199

Spacer, Split

$

$

Not available

75

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 20+

0

77

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, Qty 8

0

78

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$3.49

$

In Stock, Qty 20+

0

81

Husqvarna 532165595

Shaft Asm Cross Tapered 500 18"

$

$

Not available

82

Husqvarna 532165711

Spring Torsion

$7.49

$

In Stock, Qty 8

0

83

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 3 left!

0

84

Husqvarna 532165816

Link Transaxle Hydr 0500

$

$

Not available

89

Husqvarna 532166510

Console, Shift
(Superseded to 532164890)

$24.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

Nut, Self-Thd Wsh-hd 1/4 Zinc

$4.99

$

In Stock, only 1 left!

0

93

Husqvarna 532142564

Line Fuel Hydro 4"

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532140462

Fan, Hydro 7"

$12.99

$

In Stock, only 3 left!

0

95

Husqvarna 532144643

Control Asm Bypass Hydro
(Superseded to 532167696)

$13.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

97

Husqvarna 532144201

Keeper Belt Rh Hydro

$8.99

$

Usually ships in 3-10 days

0

98

Husqvarna 873510600

Nut Keps Hex 3/8-16 Unc

$6.49

$

Usually ships in 3-10 days

0

100

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

102

UNKNOWN

$

$

Not available

103

Husqvarna 873940800

Nut Nylon Insert 1/2-20 Unf.

$7.49

$

In Stock, Qty 11

0

104

Husqvarna 532141421

Arm, Control Hydro

$

$

Not available

105

Husqvarna 871070516

Screw Cap Hex 5/16 x 18 x 1

$4.99

$

Usually ships in 3-10 days

0

108

Husqvarna 817541026

Screw Hex Wh Hd #10-24 x

$

$

Not available

109

Husqvarna 532145098

Adaptor Fan Hydro LT Hyd Alum

$

$

Not available

145

Husqvarna 874490540

Bolt, Hex Flghd 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

146

Husqvarna 874490536

Bolt Hex Flghd 5/16-18 x 2-1/4

$

$

Not available

147

Husqvarna 874490524

Bolt Hex Flghd 5/16-18 x 1-1/2

$

$

Not available

150

Husqvarna 532165850

Bushing Bellcrank Grd Drive

$

$

Not available

151

Husqvarna 819133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available

156

Husqvarna 532166002

Washer Srrted 5/16ID x 1.125

$6.49

$

Usually ships in 3-10 days

0

157

Husqvarna 532153236

Bolt Shoulder 5/16-18 Unc - 2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

158

Husqvarna 532165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532165494

Hub Tapered Flange Shift Lt
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

160

Husqvarna 819292016

Washer 29/32 x 1/4 x 16 Ga

$6.49

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

Bolt Rdhd Sqnk 1/4-20 Unc
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

163

Husqvarna 874780416

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

$6.49

$

Usually ships in 3-10 days

0

164

Husqvarna 819091010

Washer 5/8 x 0281 x 10 Ga

$

$

Not available

165

Husqvarna 532165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

Screw 5/16-18 x 5/8

$6.49

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

Bolt Shoulder 5/16-18 x .561

$6.49

$

In Stock, only 3 left!

0

169

Husqvarna 532165580

Plate Fastening Cross Sh STLT/CRD

$4.99

$

Usually ships in 3-10 days

0
