LTH 130 (954140107-A) - Husqvarna Lawn Tractor (1999-11) Engine Parts Diagram

Lawn Tractor

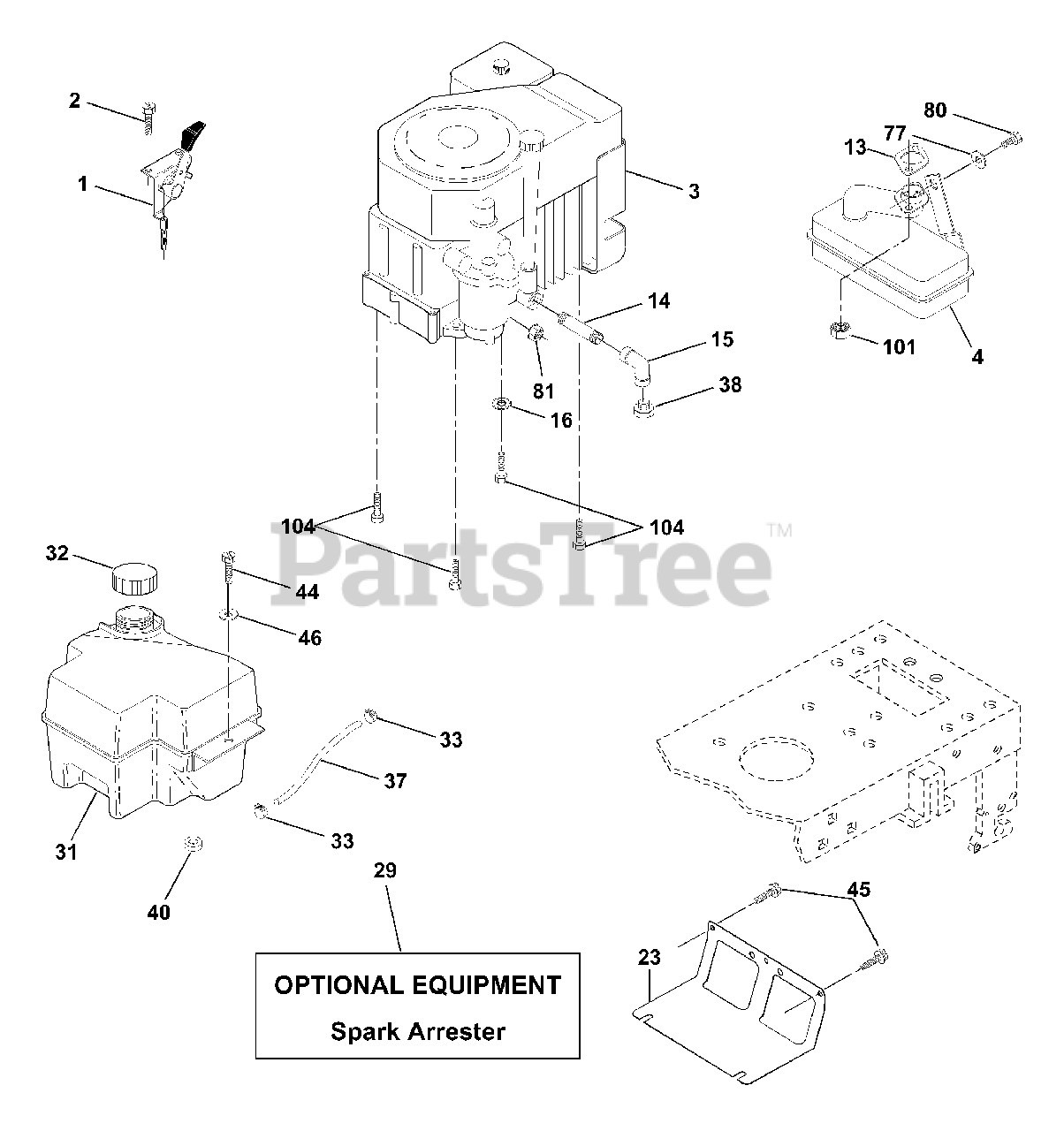

Engine Parts Diagram

  • Title

1

Husqvarna 532141296

Control THTICH 27 LH FLAG DOM
(Superseded to 532170805)

$

$

Not available

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20 x 5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

3

Engine, Model Kohler CV15S

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

4

Husqvarna 532159420

Muffler

$121.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532163831

Gasket Kohler CV13-CV16.5

$

$

Not available

14

Husqvarna 813280328

Nipple Pipe 3/8 Npt X 3-1/2

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, Qty 14

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532169837

Shield Browning/Debris Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532161911

Tank Fuel Front 2 00 Gal Nat
(Superseded to 532180645)

$

$

Not available

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

In Stock, Qty 6

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, Qty 16

0

37

Husqvarna 532137040

Line Fuel 20"
(Superseded to 587044820)

$7.49

$

In Stock, Qty 11

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

40

Husqvarna 532124028

Bushing Snap Nyl Blk Fuel Line

$6.99

$

In Stock, only 3 left!

0

44

Husqvarna 817490412

Screw Hexwsh Thdrol 1/4-20x3/4
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

45

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 819091416

Washer 9/32 X 7/8 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

77

Husqvarna 819101216

Washer 5/16 x 3/4 x 16 Ga.
(Superseded to 734115441)

$4.99

$

In Stock, Qty 13

0

80

Husqvarna 874760508

Bolt Hex Hd 5/16-18 UNC x 1/2

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

101

Husqvarna 532163305

Nut Flange Me-1.25 Non-LK
(Superseded to 873030800)

$

$

Not available

104

Husqvarna 817120616

Screw 3/8-16 x 1-1/2

$5.99

$

In Stock, Qty 20+

0
