LTH 130 (954170036-A) - Husqvarna Lawn Tractor (2001-01) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

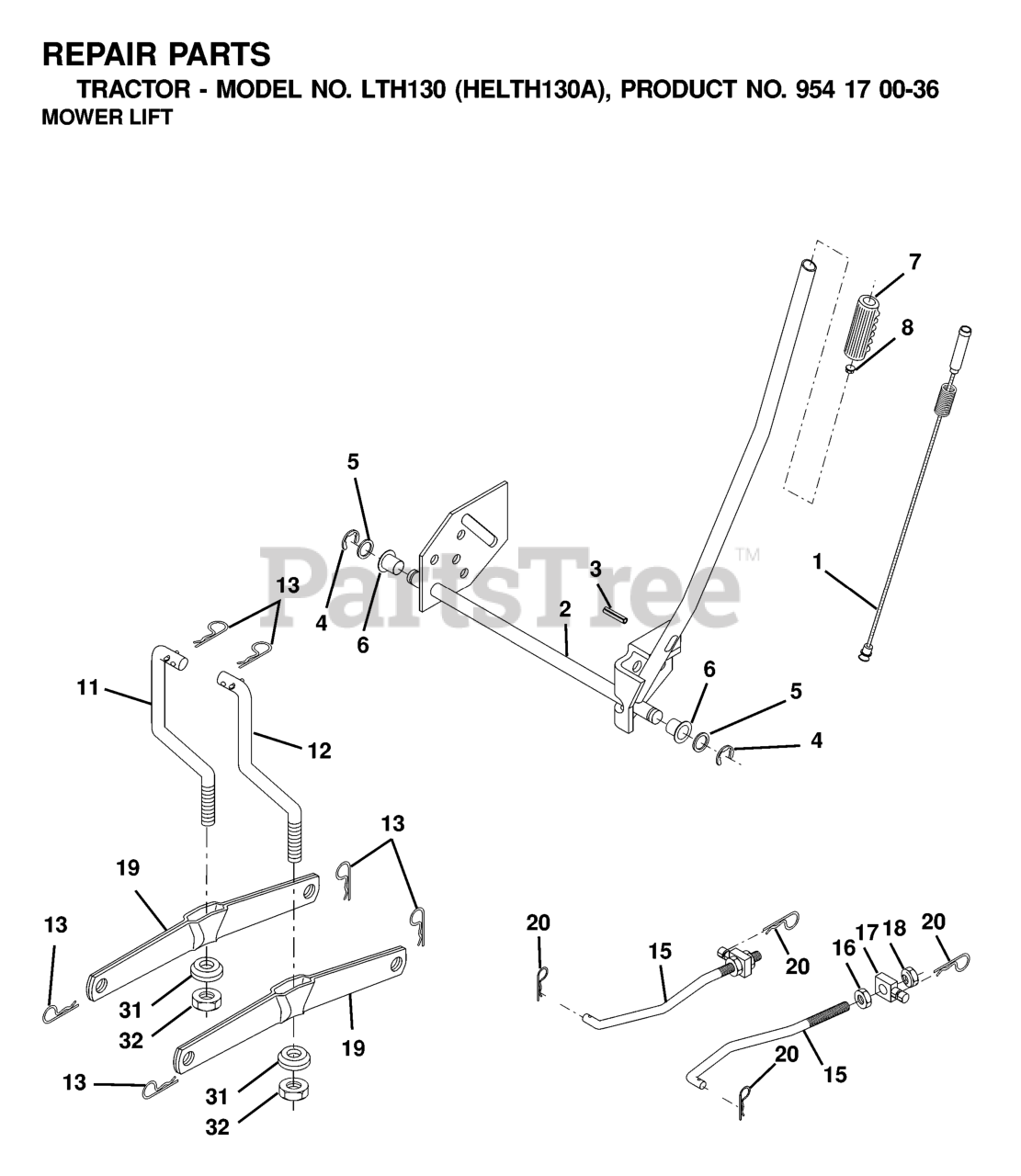

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

15

Husqvarna 532173288

LINK.SUSPENSION.FRONT

$12.99

$

In Stock, Qty 19

0

5

Husqvarna 819211621

WASHER

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, Qty 11

0

7

Husqvarna 532109413

GRIP

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159471

SHAFT ASM R HANDLE

$54.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532159460

WIRE ASM INNER W/ PLUNGER LT

$24.99

$

In Stock, only 2 left!

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

12

Husqvarna 532139866

LINK LIFT RH
(Superseded to 532145536)

$12.99

$

In Stock, Qty 9

0

19

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, Qty 7

0

17

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

31

Husqvarna 532169865

BEARING.PIVOT.LIFT

$

$

Not available

20

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

3

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available
