LTH 130 (954830061-A) - Husqvarna Lawn Tractor (1996-01) Hydro Transaxle - Model Number 0310-0500 Parts Diagram

Lawn Tractor

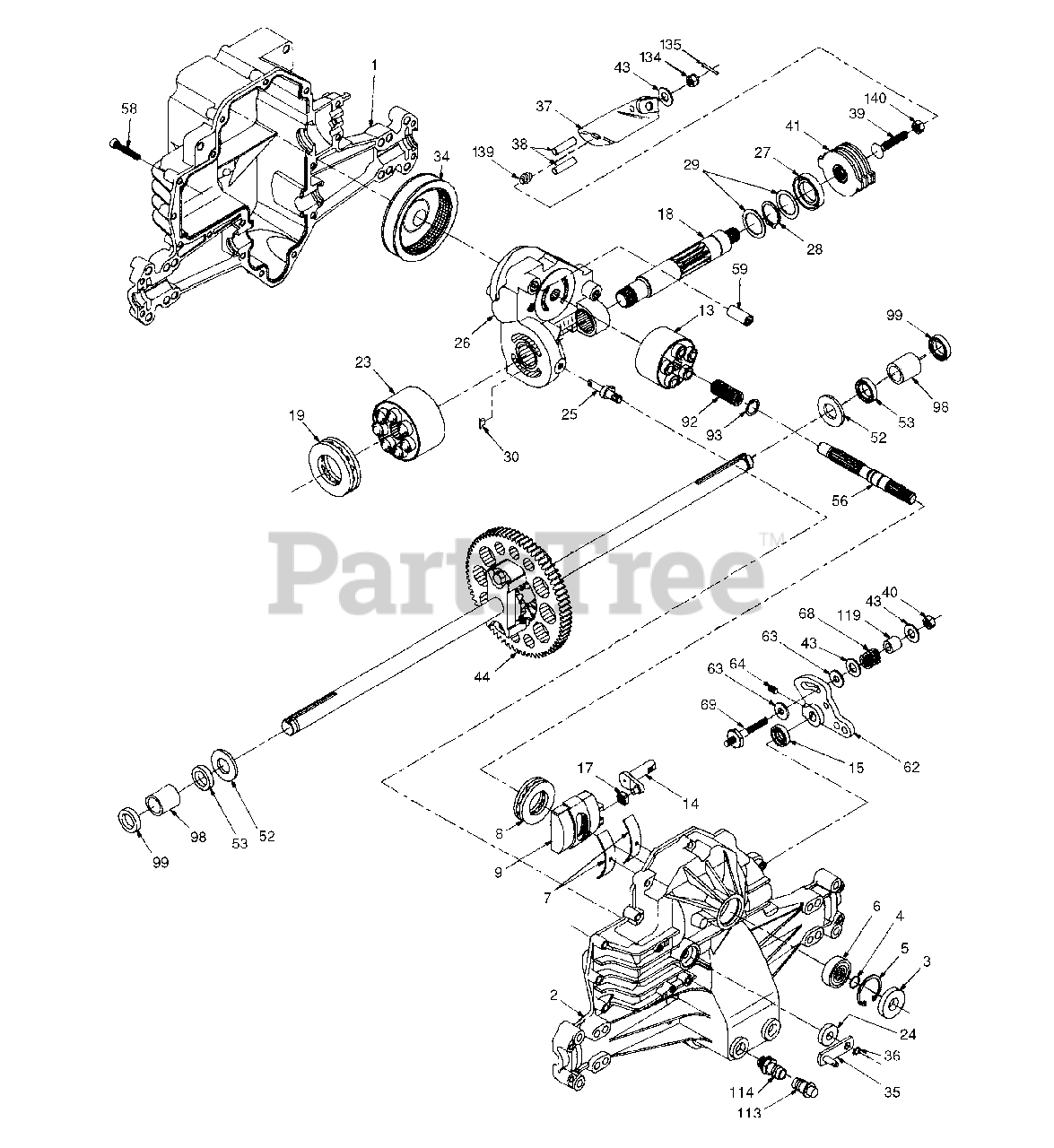

Hydro Transaxle - Model Number 0310-0500 Parts Diagram

  • Title

1

Husqvarna 532142986

Housing, Lower

$

$

Not available

2

Husqvarna 532142987

Assembly, Upper Housing

$

$

Not available

3

Husqvarna 532142932

Seal, Lip

$

$

Not available

4

Husqvarna 532142928

Ring, Wire Retaining

$

$

Not available

5

Husqvarna 532142933

Ring, Retaining

$

$

Not available

6

Husqvarna 532142934

Bearing, Shaft Ball

$

$

Not available

7

Husqvarna 532142935

Bearing, Cradle

$45.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532150771

Bearing, Thrust 30 x 52 x 13

$

$

Not available

9

Husqvarna 532142937

Swashplate, Variable

$

$

Not available

13

Husqvarna 532142938

Block, Cylinder Assembly
(Superseded to 532169898)

$

$

Not available

14

Husqvarna 532142939

Arm, Trunnion

$

$

Not available

15

Husqvarna 532142940

Seal, Lip

$

$

Not available

17

Husqvarna 532142941

Guide, Slot

$

$

Not available

18

Husqvarna 532150772

Shaft, Motor

$

$

Not available

19

Husqvarna 532150773

Bearing, Thrust 42 x 68 x 16

$79.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532142944

Block, Cylinder Assembly

$

$

Not available

24

Husqvarna 532142945

Seal, Lip 10 x 25 x 7

$

$

Not available

25

Husqvarna 532142946

Actuator, Bypass

$

$

Not available

26

Husqvarna 532150774

Center Section Assembly Kit
(Superseded to 532169051)

$

$

Not available

27

Husqvarna 532142948

Seal, Lip 26 x 42 x 8

$

$

Not available

28

Husqvarna 532142949

Ring, Retaining

$

$

Not available

29

Husqvarna 532142950

Washer 26 x 35 x 1

$

$

Not available

30

Husqvarna 532150787

Nut, Jam

$

$

Not available

34

Husqvarna 532142951

Oil Filter Element
(Superseded to 532169893)

$159.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532142952

Arm, Bypass

$

$

Not available

36

Husqvarna 532142953

Ring, Retaining

$

$

Not available

37

Husqvarna 532142954

Arm, Actuating
(Superseded to 532122660)

$

$

Not available

38

Husqvarna 532142955

Pin, Actuating

$

$

Not available

39

Husqvarna 532150777

Bolt 5/16-24 x 1-3/4

$

$

Not available

40

Husqvarna 532150778

Locknut, Hex 5/16-24 UNJC

$

$

Not available

41

Husqvarna 532142958

Brake Rotor/Stator Kit

$

$

Not available

43

Husqvarna 532142884

Washer 7/16 x 7/8 x .060

$

$

Not available

44

Husqvarna 532142990

Differential Assembly

$

$

Not available

52

Husqvarna 532142991

Washer 3/4 x 1.5 x .13

$

$

Not available

53

Husqvarna 532142961

Seal .75 x 1.25 x .250

$11.99

$

In Stock, only 2 left!

0

56

Husqvarna 532142963

Shaft, Input

$

$

Not available

58

Husqvarna 532142964

Bolt 1/4-20 x 1.38

$9.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532142965

Pin .5 OD x .43 ID x .750

$

$

Not available

62

Husqvarna 532142966

Arm, Control

$56.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532142967

Puck, Dampener

$

$

Not available

64

Husqvarna 532142920

Set Screw

$20.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532142969

Spring

$

$

Not available

69

Husqvarna 532144610

Stud 5/16-24

$20.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532142977

Spring, Block

$9.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532142978

Washer, Block Thrust

$13.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532142993

Sleeve Bearing

$

$

Not available

99

Husqvarna 532142976

Seal, Wiper
(Superseded to 532169054)

$

$

Not available

113

Husqvarna 532142917

Cap, Vent Assembly
(Superseded to 532142578)

$

$

Not available

114

Husqvarna 532142918

Fitting, O-Ring Assembly

$

$

Not available

119

Husqvarna 532142980

Spacer
(Superseded to 584282801)

$

$

Not available

134

Husqvarna 532144607

Nut, Castle 5/16-24
(Superseded to 584281701)

$

$

Not available

135

Husqvarna 532144608

Pin, Cotter
(Superseded to 532122656)

$

$

Not available

139

Husqvarna 532150775

Spring, Compression

$

$

Not available

140

Husqvarna 532150776

Nut, Hex 5/16-24

$

$

Not available
