LTH 130 - Husqvarna Lawn Tractor (1995-03) BAGGER Parts Diagram

Lawn Tractor

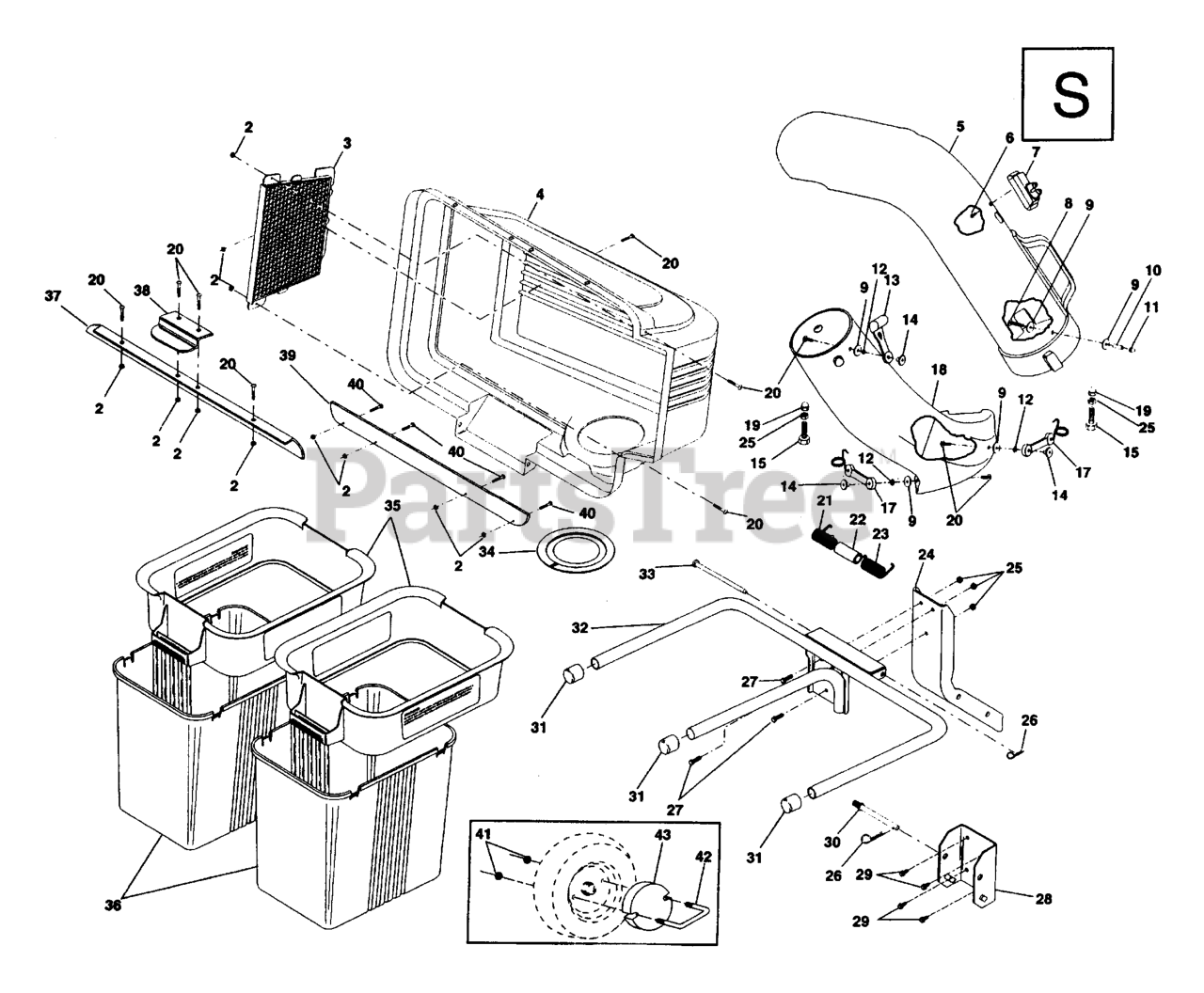

BAGGER Parts Diagram

  • Title

2

Husqvarna 532069180

LOCKNUT

$2.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532128599

CHUTE LOWER 36"

$

$

Not available

39

Husqvarna 532135495

SEAL STRIP
(Superseded to 532155042)

$14.99

$

In Stock, only 1 left!

0

13

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 874291010

SCREW.10-24X5/8

$

$

Not available

7

Husqvarna 532140572

INDICATOR DUMP BAG

$7.99

$

In Stock, only 2 left!

0

36

Husqvarna 532129586

CONTAINER BOTTOM

$77.99

$

In Stock, only 4 left!

0

31

Husqvarna 532134496

TUBING PLUG
(Superseded to 532174083)

$7.49

$

In Stock, Qty 14

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532133235

SPACER.COVER.BAGGER

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$5.99

$

In Stock, Qty 11

0

42

Husqvarna 532137031

U-BOLT

$

$

Not available

43

Husqvarna 532123635

WEIGHT, FRT WHEEL

$

$

Not available

27

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 818021008

SCREW

$5.99

$

In Stock, Qty 6

0

30

Husqvarna 532131137

SUPPORT POST PIN

$14.99

$

In Stock, only 2 left!

0

33

Husqvarna 532128600

HINGE PIN
(Superseded to 532192786)

$21.99

$

In Stock, only 2 left!

0

41

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

40

Husqvarna 874191008

SCREW
(Superseded to 871191008)

$

$

Not available

37

Husqvarna 532132256

SEAL.COVER.BAGGER

$

$

Not available

9

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, Qty 5

0

36

Husqvarna 532132431

CONTAINER BOTTOM
(Superseded to 532400226)

$83.99

$

In Stock, Qty 18

0

21

Husqvarna 532132796

SPRING COVER LH

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

35

Husqvarna 532129585

CONTAINER TOP
(Superseded to 532183286)

$53.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532126919

BAGGER FRAME

$

$

Not available

28

Husqvarna 532130889

MTG BRACKET
(Superseded to 532170053)

$

$

Not available

3

Husqvarna 532127533

COVER SCREEN

$20.99

$

In Stock, only 1 left!

0

4

Husqvarna 532140654

COVER BAGGER TOP
(Superseded to 532171061)

$155.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532128598

CHUTE.UPPER.BAGGER.36"

$

$

Not available

24

Husqvarna 532127720

SUPPORT POST

$

$

Not available

34

Husqvarna 532127534

GASKET.COVER.BAGGER

$23.99

$

In Stock, Qty 7

0

23

Husqvarna 532132983

SPRING COVER RH

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532133841

ACORN NUT

$

$

Not available

38

Husqvarna 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532130758

LATCH ASSEMBLY
(Superseded to 597000601)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532007206

SPACER LT

$5.99

$

In Stock, only 2 left!

0

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$3.99

$

In Stock, Qty 11

0

15

Husqvarna 874930516

BOLT GT
(Superseded to 596580801)

$3.99

$

In Stock, Qty 19

0

26

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available
