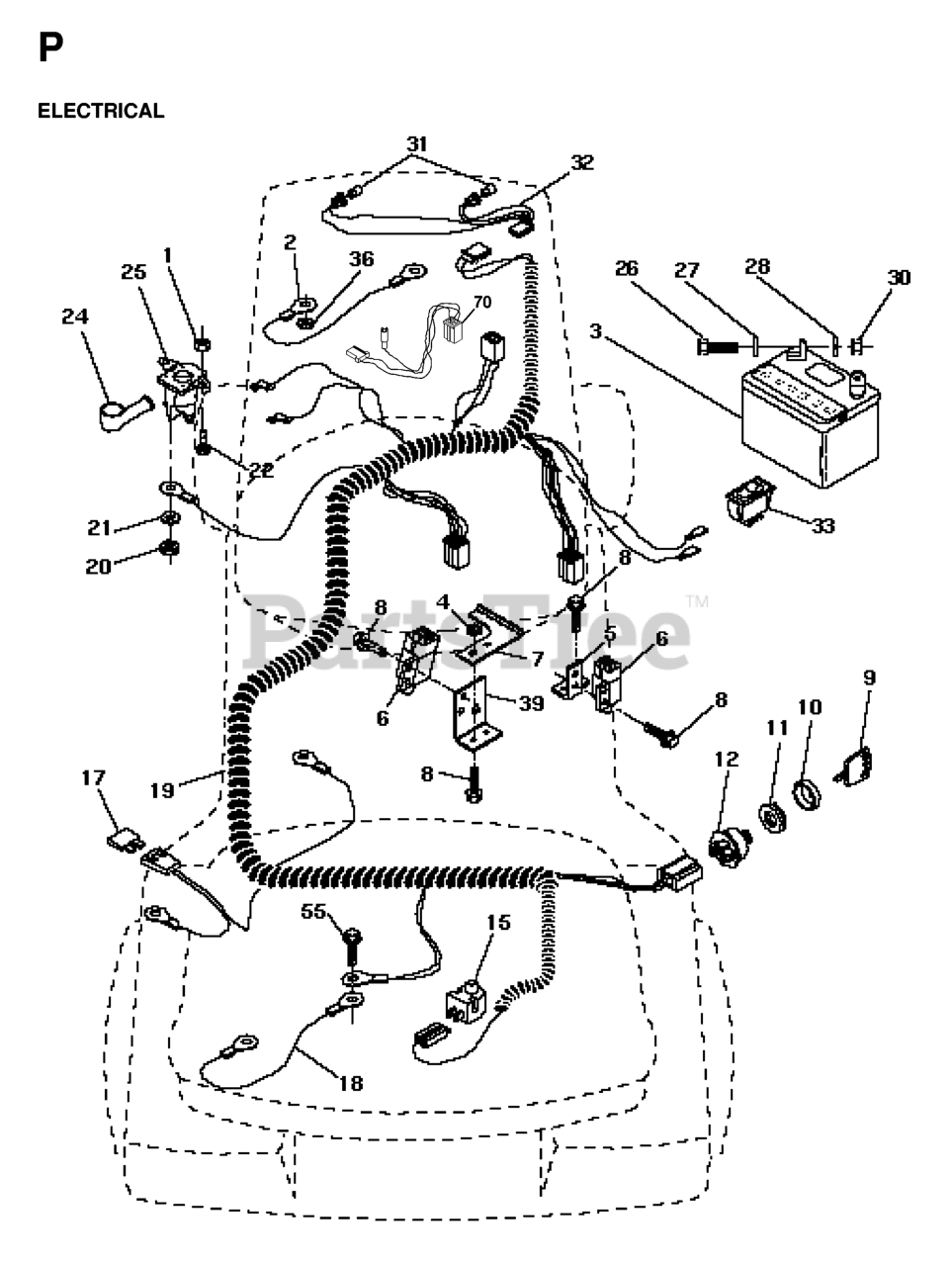

LTH 130 - Husqvarna Lawn Tractor (1998-02) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 532146064

HARNESS IGN LR NLA

$

$

Not available

17

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 817021008

SCREW

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

27

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532141226

COVER SWITCH KEY

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532108423

CABLE.BATTERY.6GA.16"RED

$8.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532145763

REPL BY 532 10 99-46
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

31

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532108236

BRACKET LT

$2.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 532146374

KEEPER, ACTUAT. L.R.

$

$

Not available

4

Husqvarna 532069180

LOCKNUT

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 532128353

CABLE ASSY

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

55

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

39

Husqvarna 532141735

BRACKET

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

30

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

12

Husqvarna 532144921

IGNITION SWITCH
(Superseded to 532158913)

$67.99

$

In Stock, only 1 left!

0

3

Husqvarna 532144924

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532110712

SWITCH LT

$8.99

$

In Stock, Qty 11

0

32

Husqvarna 532142881

HARNESS HEADLIGHT

$

$

Not available

24

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

1

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

70

Husqvarna 532140413

HARNESS, ENGINE

$

$

Not available

36

Husqvarna 811150400

Washer, Lock, Internal Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0

22

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532140400

NUT, IGNITION
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0
