LTH 1342 (954568519-A) - Husqvarna 42" Lawn Tractor (2002-01) Chassis And Enclosures Parts Diagram

42" Lawn Tractor

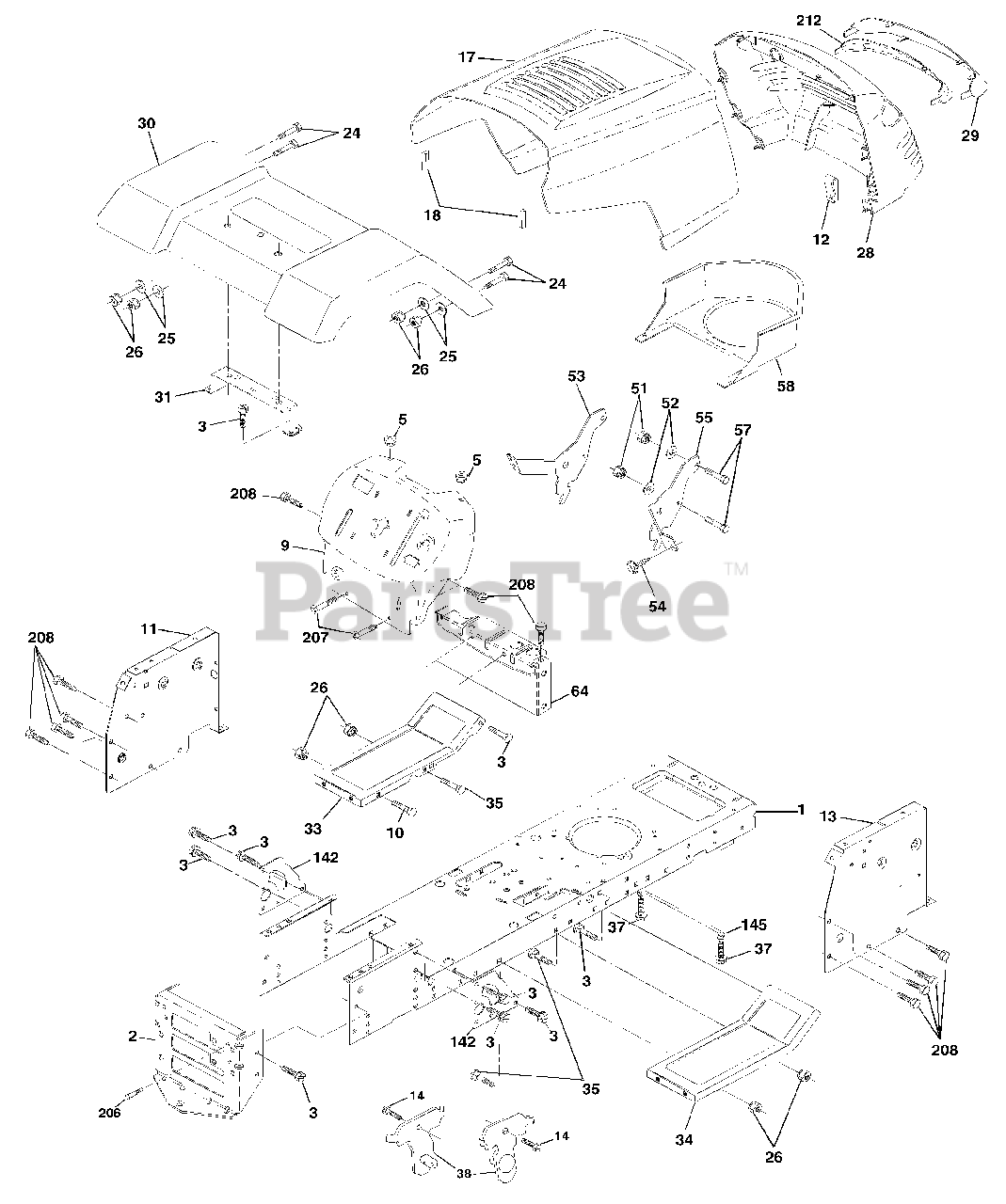

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$418.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

DRAWBAR, 12GA

$47.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 532171853

DASH
(Superseded to 532168336)

$

$

Not available

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$

$

Not available

12

Husqvarna 532145660

CLIP

$3.99

$

In Stock, only 1 left!

0

13

Husqvarna 532181719

PANEL DASH RH
(Superseded to 532172105)

$

$

Not available

14

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532162237

HOOD ASM.
(Superseded to 532159639)

$74.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

24

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

28

Husqvarna 532179100

GRILL ASSEMBLY

$

$

Not available

29

Husqvarna 532168154

LENS P/L
(Superseded to 532140273)

$

$

Not available

30

Husqvarna 532176953

FENDER
(Superseded to 532175274)

$

$

Not available

31

Husqvarna 532136619

BRACKET FENDER

$

$

Not available

33

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$

$

Not available

34

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532182508)

$

$

Not available

35

Husqvarna 872110606

BOLT
(Superseded to 596136001)

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 539990858)

$

$

Not available

38

Husqvarna 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$

$

Not available

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

53

Husqvarna 532144697

BRACKET.GRILLE.LH

$

$

Not available

54

Husqvarna 532161464

SCREW.HEX.WS.HD.8-18 X 7/8

$

$

Not available

55

Husqvarna 532144696

BRACKET

$

$

Not available

57

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

64

Husqvarna 532154798

DASH LOWER

$53.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532175702

PLATE REINFORCEMENT

$10.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$14.99

$

In Stock, only 2 left!

0

206

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.99

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$4.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532156229

REPL BY 532 1745-03
(Superseded to 532174503)

$

$

Not available

Husqvarna 532005479

PLUG BUTTON T

$9.99

$

Usually ships in 3-10 days

0
