LTH 140 (954000642-A) - Husqvarna Lawn Tractor (1994-01) Electrical Parts Diagram

Lawn Tractor

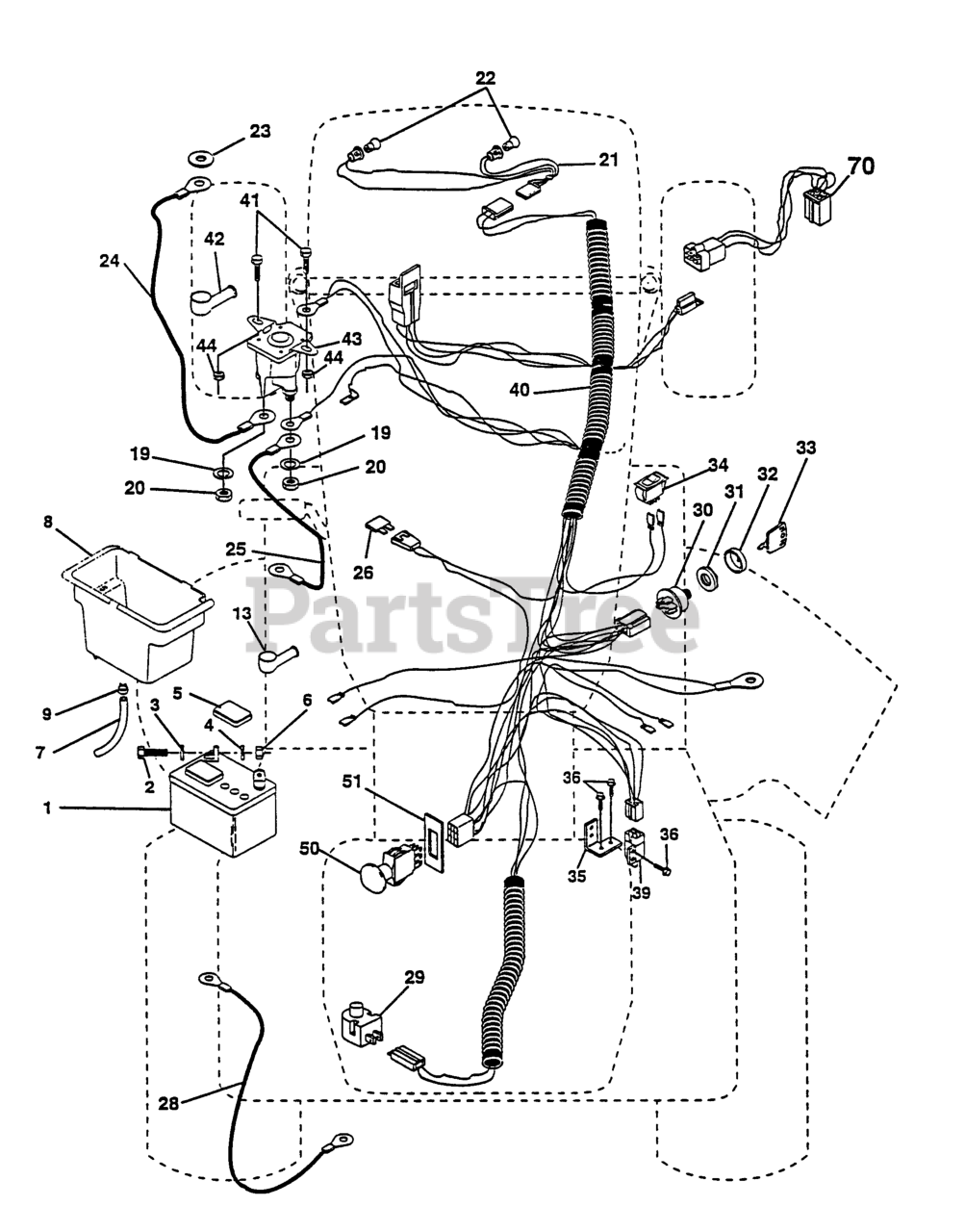

Electrical Parts Diagram

  • Title

1

Husqvarna 532121537

BATTERY
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 6

0

3

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, Qty 12

0

4

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532121264

CAP BATTERY NLA

$

$

Not available

6

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532109238

TUBE BATTERY DRAIN

$

$

Not available

8

Husqvarna 532133753

BATTERY CASE W/O LID

$

$

Not available

9

Husqvarna 532109596

HOSE CLAMP T

$

$

Not available

13

Husqvarna 532124783

TERMINAL COVER
(Superseded to 532131563)

$6.99

$

In Stock, only 4 left!

0

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873350400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532136850

HARNESS LIGHT SOCKET

$

$

Not available

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 811150400

Washer, Lock Int. Tooth 1/4

$

$

Not available

24

Husqvarna 532124770

CABLE-BATTERY YTV
(Superseded to 532004799)

$17.99

$

In Stock, only 2 left!

0

25

Husqvarna 532124964

STEERING CABLE GT
(Superseded to 532005114)

$

$

Not available

26

Husqvarna 532108824

FUSE HYT

$

$

Not available

28

Husqvarna 532124773

CABLE T
(Superseded to 532004207)

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$17.99

$

In Stock, Qty 14

0

30

Husqvarna 532140399

IGNITION SWITCH
(Superseded to 532158913)

$51.99

$

In Stock, only 2 left!

0

31

Husqvarna 532140400

NUT, IGNITION
(Superseded to 532145774)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

COVER SWITCH KEY

$

$

Not available

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 12

0

35

Husqvarna 532108236

BRACKET LT

$

$

Not available

36

Husqvarna 817021008

SCREW

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$20.99

$

In Stock, Qty 20+

0

40

Husqvarna 532140421

HARNESS, IGNITION

$

$

Not available

41

Husqvarna 871110408

BOLT
(Superseded to 596437001)

$3.49

$

In Stock, only 1 left!

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$6.99

$

In Stock, only 4 left!

0

43

Husqvarna 532138406

SOLENOID
(Superseded to 532146154)

$22.99

$

In Stock, Qty 20+

0

44

Husqvarna 87360400

Nut Keps Hex 1/4-20 Unc

$

$

Currently unavailable

45

Husqvarna 532122822

AMMETER

$28.99

$

In Stock, only 3 left!

0

50

Husqvarna 532140404

SWITCH-PTO
(Superseded to 532174651)

$31.99

$

In Stock, Qty 20+

0

51

Husqvarna 532140405

FRAME RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532140426

HARNESS, ENGINE NLA

$

$

Not available
