LTH 145 - Electrolux/AYP Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

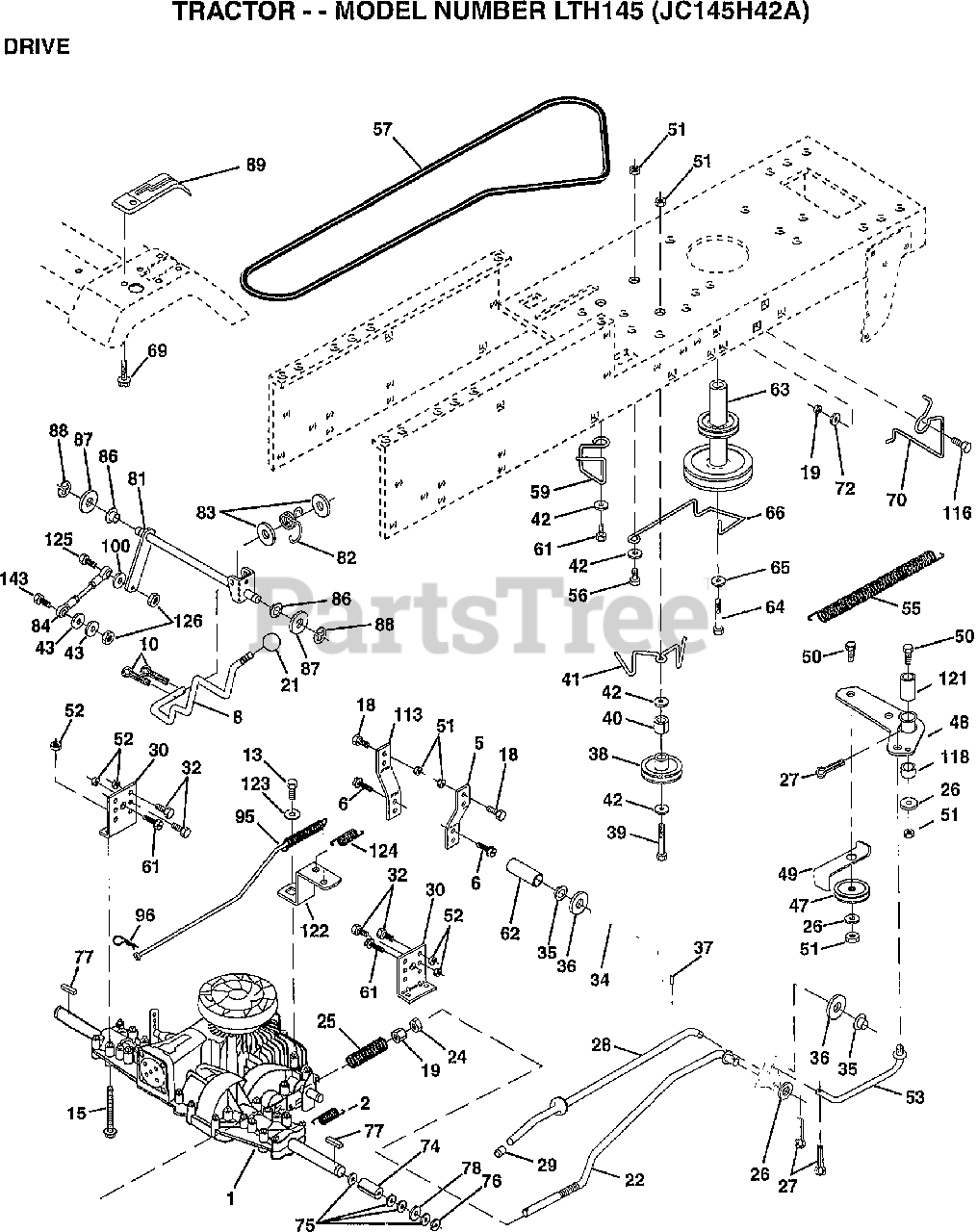

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 205-027B

TRANSAXLE, PEERLESS

$

$

Not available

2

Electrolux/AYP 532146682

SUB= 146682

$7.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 532121520

SUB= 121520X

$7.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 817490512

SCREW THDROL 5/16-18 X 3/4 TYT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 532141003

SUB= 141003

$

$

Not available

10

Electrolux/AYP 876020416

PIN COTTER 1/8 X 1 CAD
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 874550412

BOLT 1/4-28 GR 8 W/PATCH
(Superseded to 596136601)

$3.49

$

In Stock, only 1 left!

0

15

Electrolux/AYP 874490544

BOLT HEX 5/16-18 GA 5
(Superseded to 595316601)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 874780616

BOLT FIN HEX 3/8-16 X 1
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

19

Electrolux/AYP 873800600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

21

Electrolux/AYP 532106933

SUB= 106933X

$7.99

$

In Stock, Qty 5

0

22

Electrolux/AYP 532130804

SUB= 130804

$28.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 873350600

NUT HEX JAM 3/8-16 UNC
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532106888

SUB= 106888X
(Superseded to 532151332)

$5.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 819131316

WASHER 13/32 X 13/16 X 16 GA

$4.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 876020412

PIN COTTER 1/8 X 3/4 CAD
(Superseded to 596029501)

$3.49

$

In Stock, only 4 left!

0

28

Electrolux/AYP 532145204

SUB= 145204

$

$

Not available

29

Electrolux/AYP 532071673

SUB= 71673

$5.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 532130807

SUB= 130807

$

$

Not available

32

Electrolux/AYP 874760512

BOLT, HEX 5/16-18 X 3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532155071

SUB= 155071

$

$

Not available

35

Electrolux/AYP 532120183

SUB= 120183X

$6.99

$

In Stock, Qty 17

0

36

Electrolux/AYP 819211616

WASHER 21/32 X 1 X 16 GA
(Superseded to 596933401)

$3.49

$

In Stock, only 1 left!

0

37

Electrolux/AYP 532124963

SUB= 2882J
(Superseded to 532001572)

$4.99

$

In Stock, Qty 5

0

38

Electrolux/AYP 532123674

SUB= 123674X

$31.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 874760644

BOLT FIN HEX 3/8-16 X 2-3/4

$

$

Not available

40

Electrolux/AYP 532124965

SUB= 4470J

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532154777

SUB= 165692
(Superseded to 532165838)

$

$

Not available

42

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

47

Electrolux/AYP 532127783

SUB= 139245
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 532154604

SUB= 154604

$

$

Not available

49

Electrolux/AYP 532123205

SUB= 123205X
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Electrolux/AYP 874760624

BOLT HEX HD 3/8-16 X 1-1/2
(Superseded to 874930624)

$9.49

$

In Stock, Qty 8

0

51

Electrolux/AYP 873680600

NUT, CROWNLOCK 3/8-16
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

52

Electrolux/AYP 873680500

LOCKNUT, CROWN 5/16-18
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

53

Electrolux/AYP 532105710

SUB= 105710X
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532105709

SUB= 105709X

$13.99

$

In Stock, Qty 11

0

56

Electrolux/AYP 874760620

BOLT, HEX 3/8-16 X 1-1/4

$5.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 532156971

SUB= 156971
(Superseded to 584448801)

$

$

Not available

59

Electrolux/AYP 532140312

SUB= 140312
(Superseded to 532169691)

$22.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 817490612

SCREW THDROL 3/8-16X3/4 TY-TT
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

62

Electrolux/AYP 532124872

SUB= 8883R
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

63

Electrolux/AYP 532140186

SUB= 140186

$125.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 871170764

BOLT HEX
(Superseded to 501606501)

$3.49

$

In Stock, Qty 10

0

65

Electrolux/AYP 810040700

WASHER LOCK HVY HLCL SPR 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 15

0

66

Electrolux/AYP 532154778

SUB= 154778
(Superseded to 531151001)

$9.49

$

In Stock, only 2 left!

0

69

Electrolux/AYP 532142432

SUB= 142432
(Superseded to 596134101)

$3.49

$

In Stock, Qty 19

0

70

Electrolux/AYP 532134683

SUB= 134683
(Superseded to 531165301)

$7.99

$

In Stock, only 3 left!

0

72

Electrolux/AYP 819132012

WASHER 13/32 X 1-1/4 X 12 GA

$

$

Not available

74

Electrolux/AYP 532156972

SUB= 156972

$9.49

$

In Stock, Qty 9

0

75

Electrolux/AYP 532121749

SUB= 121749X

$2.49

$

In Stock, Qty 20+

0

76

Electrolux/AYP 812000001

E-RING #5133-75

$3.49

$

In Stock, Qty 11

0

77

Electrolux/AYP 532123583

SUB= 123583X

$4.99

$

In Stock, Qty 20+

0

78

Electrolux/AYP 532121748

SUB= 121748X

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 532158461

SHAFT ASM CROSS HYDRO 18 " TIRES

$

$

Not available

82

Electrolux/AYP 532123782

SUB= 123782X

$

$

Not available

83

Electrolux/AYP 819171216

WASHER 17/32 X 3/4 X 16 GA
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 532158286

"ROD TIE 18"""

$

$

Not available

86

Electrolux/AYP 532071208

SUB= 71208

$

$

Not available

87

Electrolux/AYP 819212016

WASHER 21/32 X 1-1/4 X 16 GA

$

$

Not available

88

Electrolux/AYP 812000008

RING CLIP #5304-62

$9.49

$

In Stock, Qty 10

0

89

Electrolux/AYP 532151147

SUB= 153764

$

$

Not available

95

Electrolux/AYP 532156970

SUB= 156970

$

$

Not available

96

Electrolux/AYP 532124788

SUB= 4497H
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

100

Electrolux/AYP 819111216

WASHER 11/32 X 3/4 X 16 GA
(Superseded to 819111116)

$3.49

$

In Stock, Qty 16

0

113

Electrolux/AYP 532127285

SUB= 127285X
(Superseded to 531150301)

$7.99

$

In Stock, Qty 5

0

116

Electrolux/AYP 872110610

BOLT RDHD SQ NECK 3/8-16 X 1.25
(Superseded to 596987501)

$4.99

$

In Stock, only 2 left!

0

118

Electrolux/AYP 532154774

SUB= 154774

$

$

Not available

121

Electrolux/AYP 532154419

SUB= 154419

$

$

Not available

122

Electrolux/AYP 532156963

SUB= 156963
(Superseded to 156963)

$

$

Not available

123

Electrolux/AYP 819081016

WASHER 8/32 X 5/8 X 16 GA

$

$

Not available

124

Electrolux/AYP 532156967

SUB= 156967

$9.49

$

Usually ships in 3-10 days

0

125

Electrolux/AYP 874780516

BOLT FIN HEX 5/16-18 X 1
(Superseded to 596580801)

$3.49

$

In Stock, only 2 left!

0

126

Electrolux/AYP 532001685

SUB= 68478
(Superseded to 532068478)

$

$

Not available
