LTH 1538 (960430038-00) - Husqvarna 38" Lawn Tractor (2006-12) Engine Parts Diagram

38" Lawn Tractor

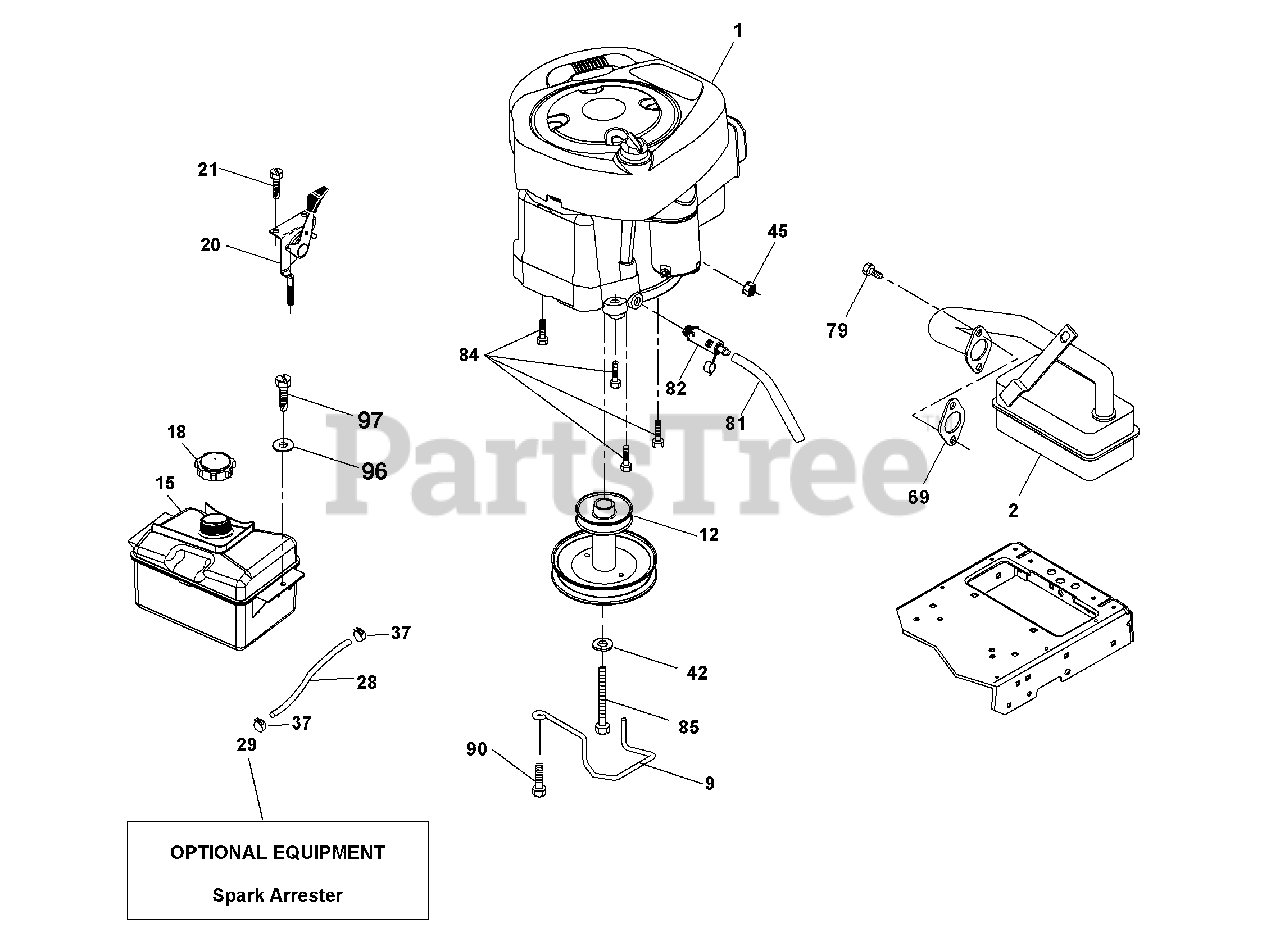

Engine Parts Diagram

  • Title

1

Engine Briggs Model No. 31E677

$

$

Not available

2

Husqvarna 532137352

Muffler

$51.99

$

In Stock, Qty 5

0

9

Husqvarna 532194319

Keeper Belt Engine

$13.99

$

In Stock, only 2 left!

0

12

Husqvarna 532401985

Pulley Engine
(Superseded to 586729001)

$31.99

$

In Stock, Qty 5

0

15

Husqvarna 532407545

Tank Fuel
(Superseded to 581289901)

$62.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532197725

Cap Asm
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

20

Husqvarna 532183897

Control Throttle
(Superseded to 532176636)

$34.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 532416358)

$

$

Not available

28

Husqvarna 532401137

Fuel Line
(Superseded to 587044822)

$13.99

$

In Stock, only 3 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$3.99

$

In Stock, only 2 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 15

0

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

Gasket
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

Screw 5/16-18 x 3/4
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, Qty 9

0

82

Husqvarna 532181654

Plug Drain Oil
(Superseded to 532428287)

$20.99

$

In Stock, Qty 5

0

84

Husqvarna 817060620

Screw 3/8-16 x 1/4

$6.99

$

In Stock, Qty 8

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 Gr. 5
(Superseded to 501606501)

$3.49

$

In Stock, Qty 11

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$6.99

$

In Stock, Qty 9

0

96

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

97

Husqvarna 817670412

Screw 1/4-20 x 3/4

$4.99

$

In Stock, only 2 left!

0
