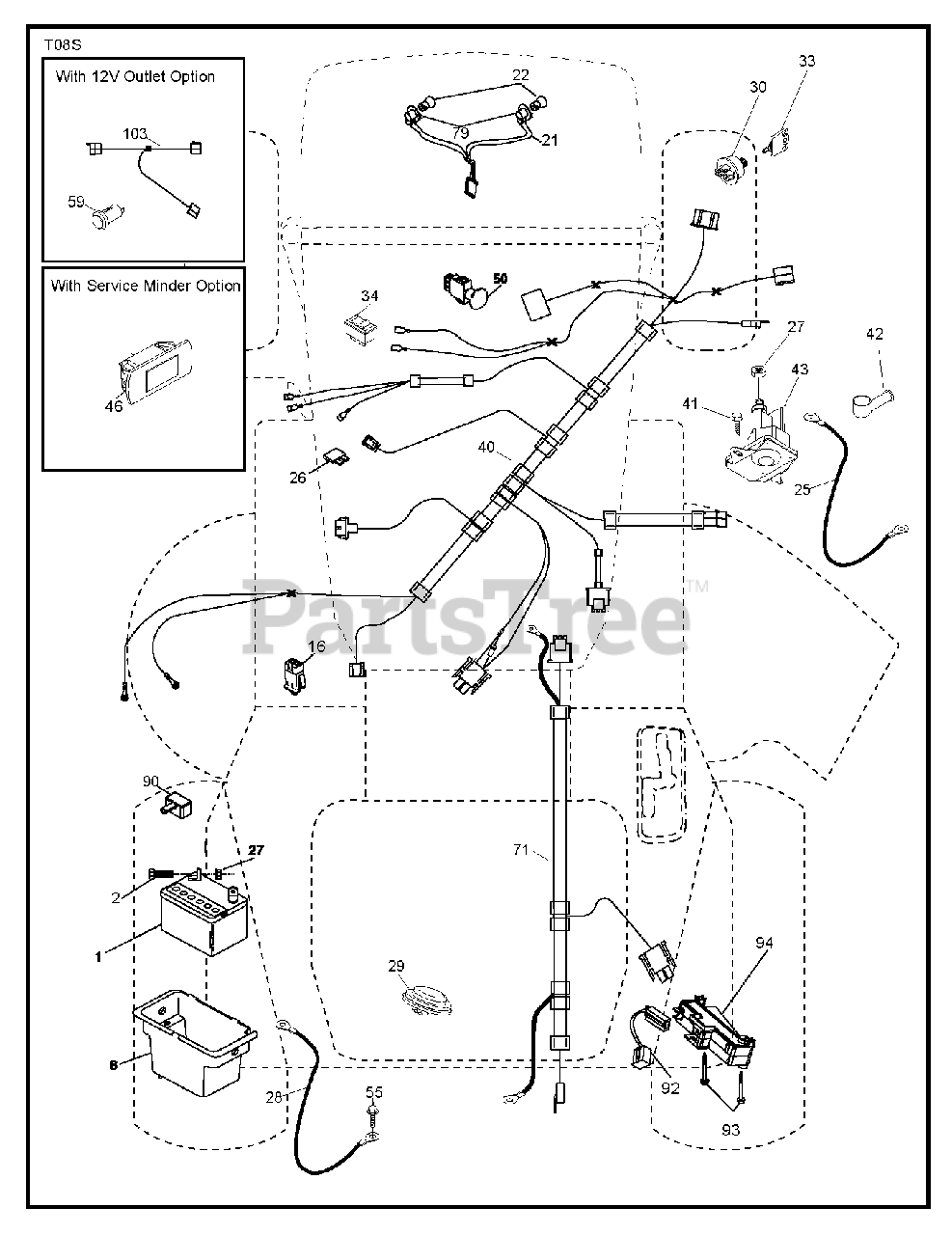

LTH 154 (960410243-00) - Husqvarna Lawn Tractor (2012-01) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 532163465

Battery, Dry 30 Amp
(Superseded to 532123899)

$205.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 532193228

BOX.BATTERY.MNT.REAR.L

$31.99

$

In Stock, only 2 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 13

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532412894

CABLE.STARTER.6GA.BL/RED.14.

$

$

Not available

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 16

0

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532198885

CABLE.BLACK.18"REAR.BA

$26.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 20+

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$26.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$11.99

$

In Stock, only 3 left!

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 8

0

40

Husqvarna 532401104

HARNESS.IGN.DASH.HUQ/P

$79.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 10

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$6.99

$

In Stock, Qty 10

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$28.99

$

In Stock, Qty 20+

0

50

Husqvarna 532174651

RB PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

71

Husqvarna 532400449

HARNESS.IGN.CHASS.TEX.REAR.BAT

$43.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$11.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$5.99

$

In Stock, only 2 left!

0

92

Husqvarna 532196615

HARNESS.PIGTAIL.CONSLE

$17.99

$

In Stock, only 1 left!

0

93

Husqvarna 532192540

SCREW.PLASTITE
(Superseded to 596039601)

$2.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

MODULE.REVERSE.ROS

$26.99

$

In Stock, only 3 left!

0
