LTH 1542 (954170086-B) - Husqvarna 42" Lawn Tractor (2004-01) MOWER DECK / CUTTING DECK Parts Diagram

42" Lawn Tractor

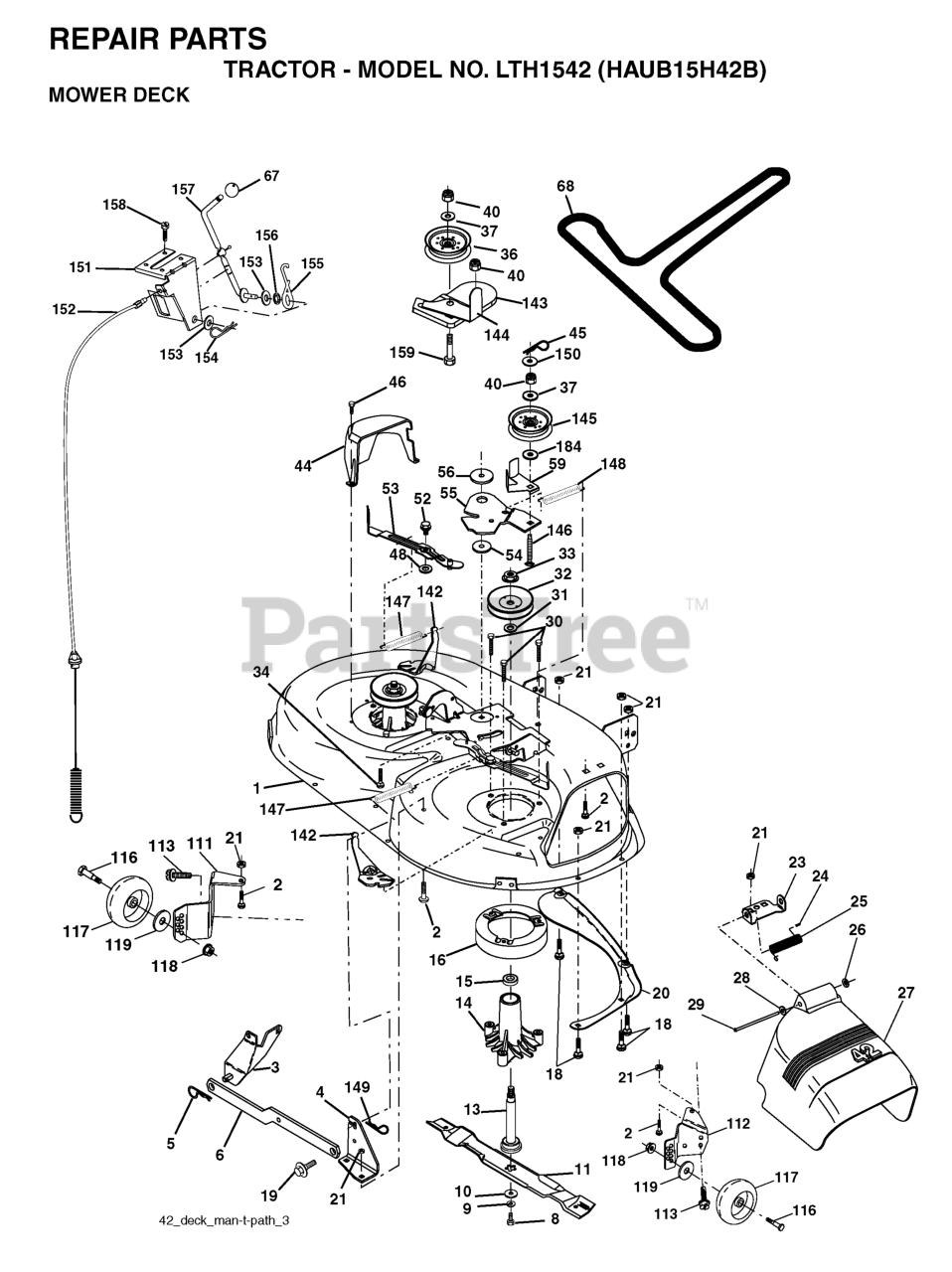

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

48

Husqvarna 532133944

WASHER

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532184907

ARM BRAKE ASSY

$

$

Not available

116

Husqvarna 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)
(Superseded to 529910001)

$51.99

$

Usually ships in 3-10 days

0

147

Husqvarna 532131335

SPRING EXTENSION
(Superseded to 532179748)

$5.99

$

In Stock, Qty 20+

0

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

40

Husqvarna 873680600

LOCKNUT

$

$

Not available

- -

Husqvarna 532176634

DECK SERV 42"
(Superseded to 532169583)

$

$

Not available

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

36

Husqvarna 532173438

PULLEY.IDLER.FLAT
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 532138491

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

68

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, Qty 15

0

117

Husqvarna 532165746

WHEEL.GAUGE.STANDARD

$

$

Not available

1

Husqvarna 532176922

DECK SVC 42"
(Superseded to 532176027)

$376.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532139888

BOLT.SHOULDER.5/16-18

$4.99

$

In Stock, Qty 6

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

112

Husqvarna 532181393

BRACKET WHEEL GUAGE KIT
(Superseded to 532181040)

$39.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

152

Husqvarna 532169676

CLUTCH CABLE 42"
(Superseded to 532175067)

$51.99

$

In Stock, Qty 20+

0

23

Husqvarna 532177563

BRKT, DEFL. MOWER
(Superseded to 529845901)

$5.99

$

In Stock, Qty 17

0

4

Husqvarna 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

Usually ships in 3-10 days

0

150

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, only 3 left!

0

26

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

144

Husqvarna 532173441

KEEPER BELT 42" CLUTCH

$7.99

$

In Stock, only 2 left!

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$4.99

$

In Stock, Qty 8

0

55

Husqvarna 532155046

ARM IDLER 42" MOWER LT/YT
(Superseded to 531166601)

$22.99

$

In Stock, Qty 9

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

20

Husqvarna 532159770

BAFFLE.VORTEX
(Superseded to 531167001)

$17.99

$

In Stock, Qty 20+

0

184

Husqvarna 819131410

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 532173436

PULLEY MANDREL

$20.99

$

In Stock, Qty 20+

0

6

Husqvarna 532178024

BAR SWAY DECK
(Superseded to 531149301)

$13.99

$

In Stock, only 2 left!

0

156

Husqvarna 532169672

SPACER.CLUTCH.CABLE

$

$

Not available

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

159

Husqvarna 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 2 left!

0

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$62.99

$

In Stock, Qty 14

0

155

Husqvarna 532169671

SPRING RETENTION LEVER

$5.99

$

In Stock, Qty 8

0

151

Husqvarna 532169670

BRACKET.CLUTCH.CABLE

$

$

Not available

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 19

0

111

Husqvarna 532181392

GUAGE WHEEL BRACKET LH
(Superseded to 532181040)

$39.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

142

Husqvarna 532165890

ARM SPRING BRAKE MOWER
(Superseded to 529845801)

$

$

Not available

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

$20.99

$

In Stock, Qty 11

0

145

Husqvarna 532173437

PULLEY.IDLER.FLAT.PLATED

$28.99

$

In Stock, Qty 6

0

59

Husqvarna 532173442

GUARD TUV IDLER
(Superseded to 531165901)

$5.99

$

In Stock, Qty 17

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

27

Husqvarna 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$43.99

$

In Stock, Qty 20+

0

157

Husqvarna 532169669

ROD CLUTCH CABLE 3/8"

$

$

Not available

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

34

Husqvarna 872110614

BOLT

$

$

Not available

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

146

Husqvarna 532173443

BOLT CARRIAGE IDLER

$6.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532178515

WASHER

$6.99

$

In Stock, Qty 8

0

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$39.99

$

In Stock, only 2 left!

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

143

Husqvarna 532157109

BRACKET, ARM IDLER
(Superseded to 529844301)

$9.49

$

In Stock, Qty 5

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 16

0

158

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$

$

Not available

113

Husqvarna 817060510

Screw Tapping 3/8-16 x .625

$

$

Not available

154

Husqvarna 532169675

SPRING RETAINER

$5.99

$

In Stock, only 2 left!

0

153

Husqvarna 532169674

WASHER FLAT 3/8"
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, Qty 16

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$4.99

$

In Stock, Qty 20+

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$9.49

$

In Stock, Qty 7

0
