LTH 16 - Jonsered Lawn Tractor (1998-01) ELECTRICAL Parts Diagram

Lawn Tractor

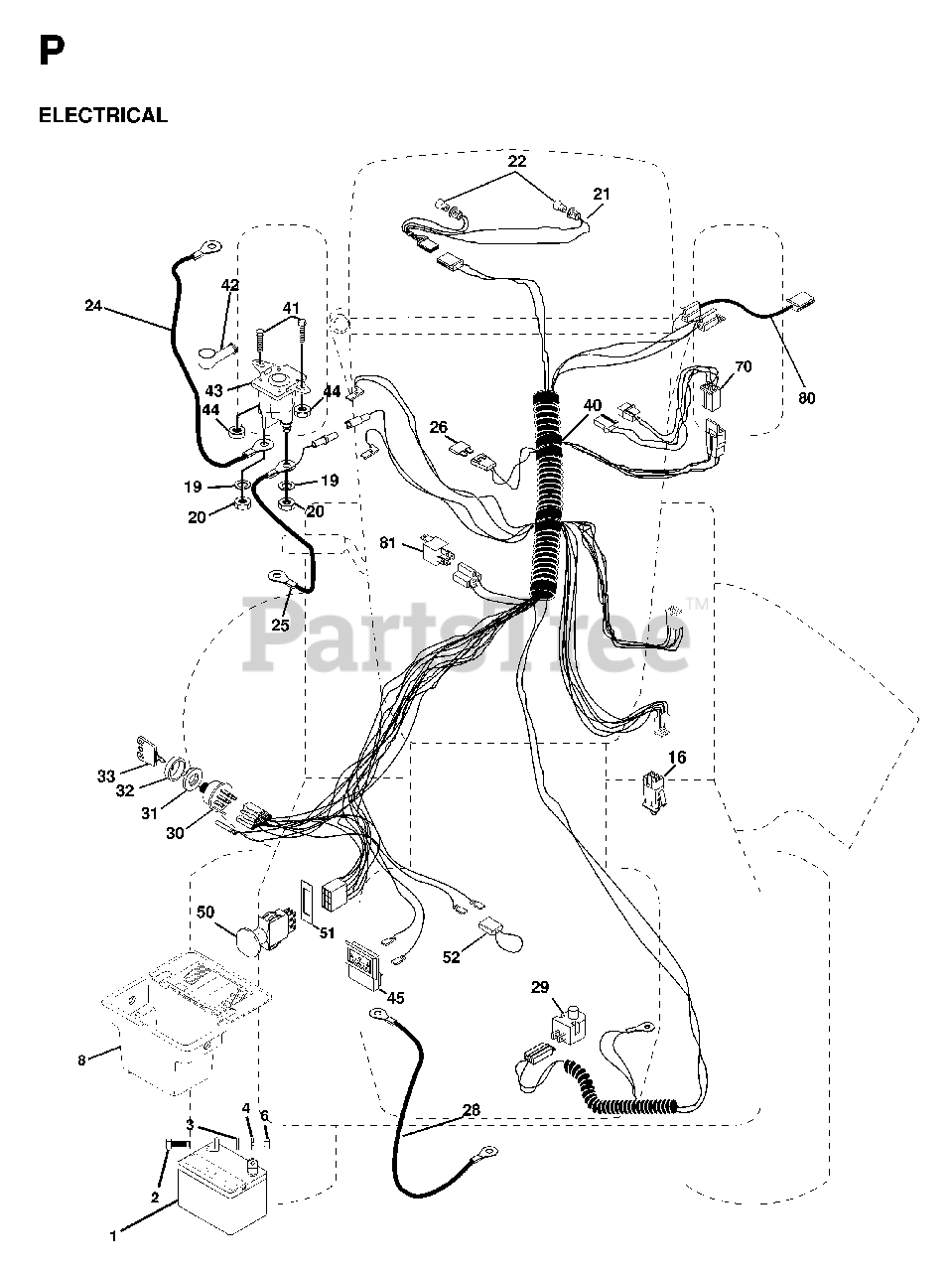

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532144925

BATTERY 12 VOLT 25 AMP
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, Qty 5

0

3

Jonsered 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 13

0

4

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

6

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

8

Jonsered 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

16

Jonsered 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

19

Jonsered 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

20

Jonsered 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 532147430

HARNESS ASM HDLIG
(Superseded to 147430)

$

$

Not available

22

Jonsered 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

24

Jonsered 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Jonsered 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

26

Jonsered 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

29

Jonsered 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$18.99

$

In Stock, only 1 left!

0

30

Jonsered 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 4 left!

0

31

Jonsered 532124211

NUT IGNITION

$4.99

$

In Stock, only 1 left!

0

32

Jonsered 532141226

COVER SWITCH KEY

$4.99

$

Usually ships in 3-10 days

0

33

Jonsered 532122147

KEY

$

$

Not available

40

Jonsered 532160720

HARNESS.IGNITION

$

$

Not available

41

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Jonsered 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 20+

0

44

Jonsered 873640400

NUT

$

$

Not available

45

Jonsered 532121433

No Description Available
(Superseded to 532122822)

$18.99

$

In Stock, only 1 left!

0

50

Jonsered 532154959

SWITCH PTO 3 PDT
(Superseded to 532169417)

$13.99

$

In Stock, Qty 20+

0

51

Jonsered 532140405

RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

70

Jonsered 532140422

HARNESS ENGINE

$

$

Not available

80

Jonsered 532146685

HARNESS, CLUTCH

$26.99

$

In Stock, only 4 left!

0

81

Jonsered 532109748

RELAY.ASSY.T

$34.99

$

In Stock, only 1 left!

0
