LTH 1738 (960430248-00) - Husqvarna 38" Lawn Tractor (2017-08) ENGINE Parts Diagram

38" Lawn Tractor

ENGINE Parts Diagram

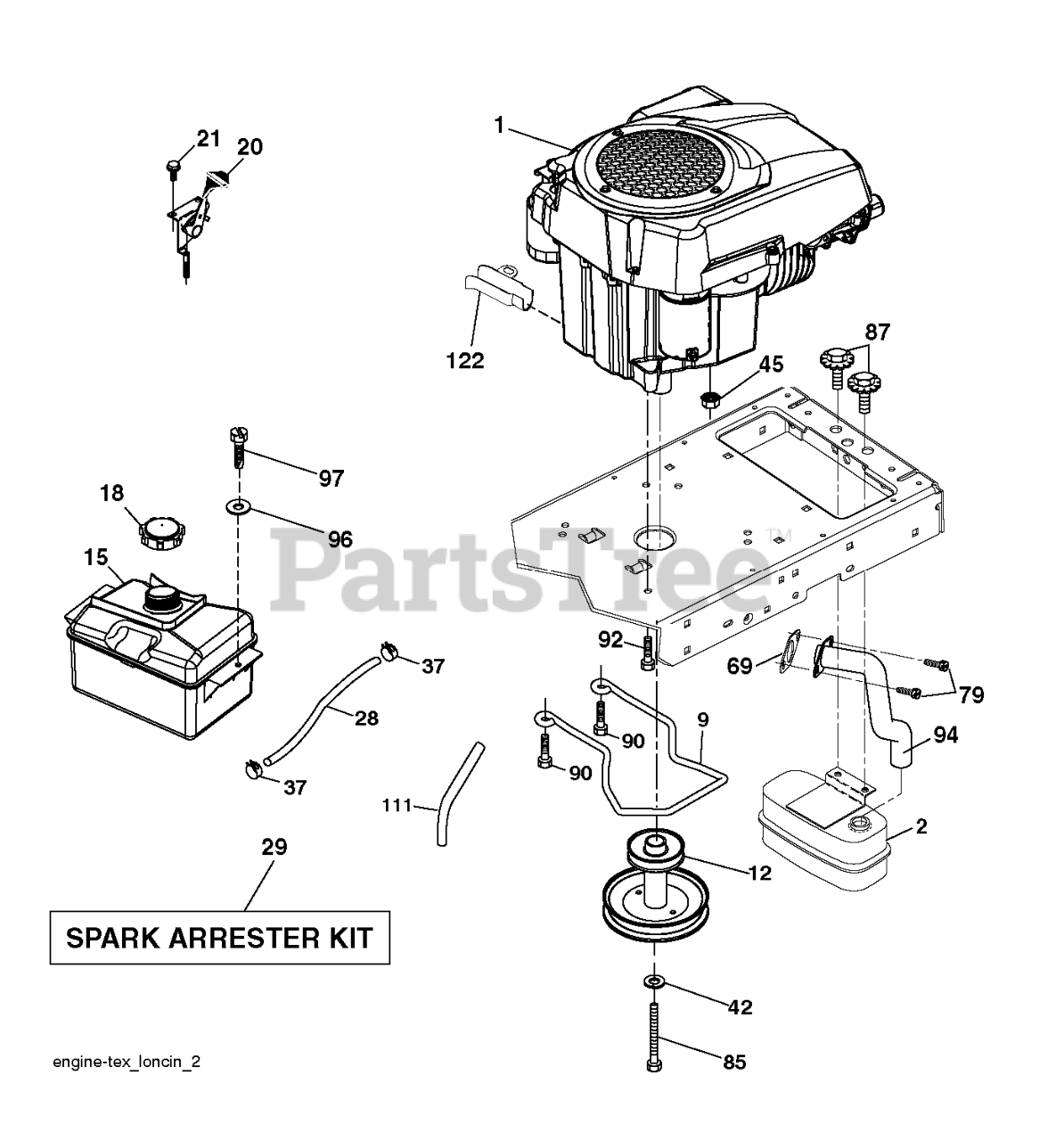

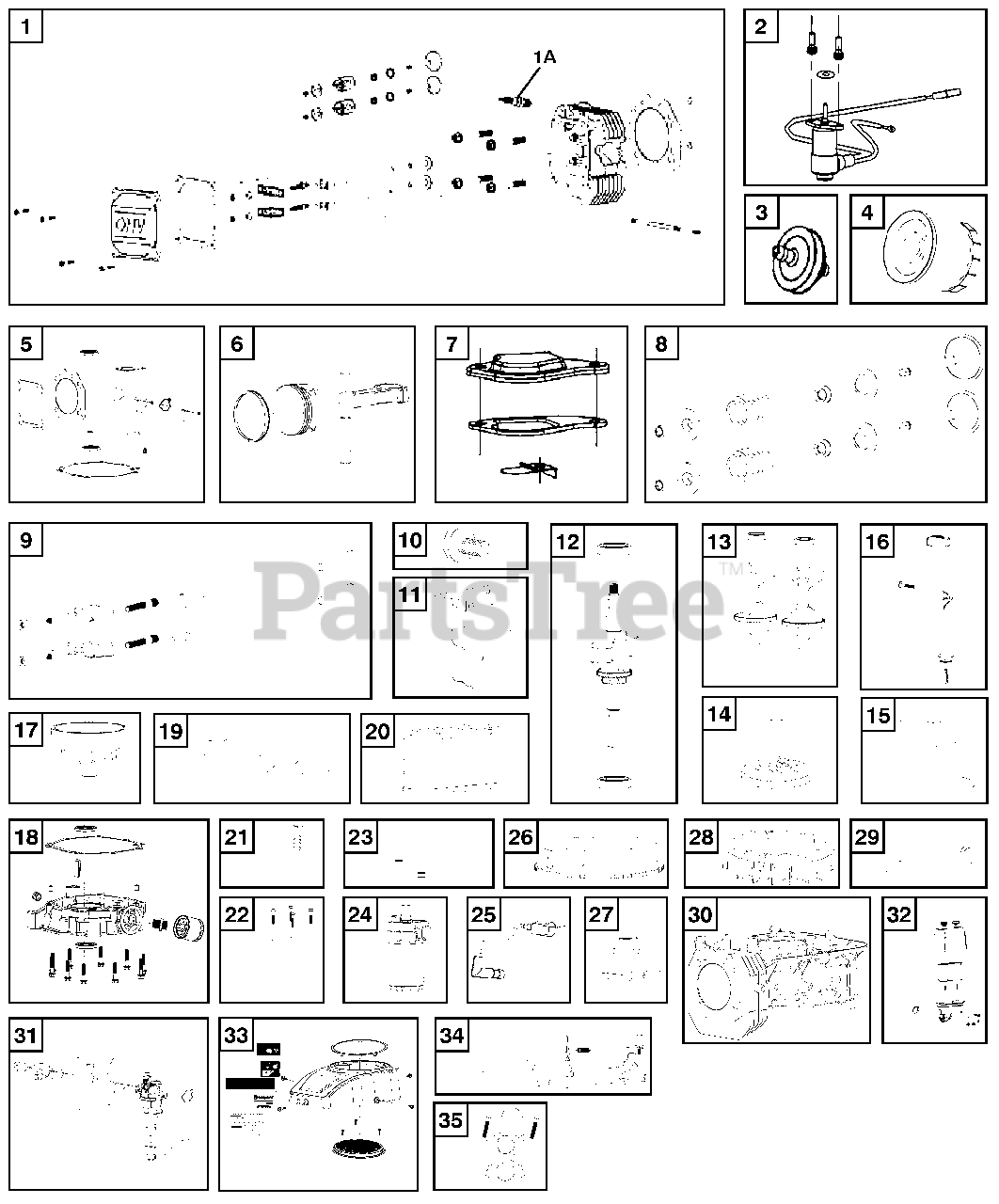

  • Title

1

Husqvarna 590904901

SERVICE KIT CYLINDER HEAD COMP

Note: CYLINDER HEAD

$

$

Not available

1A

Husqvarna 591165501

SPARK PLUG

$

$

Not available

2

Husqvarna 590905101

SERVICE KIT SOLENOID KIT
(Superseded to 529458101)

Note: SOLENOID

$

$

Not available

3

Husqvarna 591165801

FILTER FUEL.FILTER (ENG.452)

Note: FUEL FILTER

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 591165901

FILTER OIL FILTER (ENG.452)

Note: OIL FILTER

$17.99

$

In Stock, only 2 left!

0

5

Husqvarna 590905401

SERVICE KIT GASKET AND SEAL KI

Note: GASKET KIT

$

$

Not available

6

Husqvarna 590905501

SERVICE KIT PISTON AND RING KI

Note: PISTON PIN RETAINER

$

$

Not available

7

Husqvarna 590905601

SERVICE KIT COVER COMP BREATHE
(Superseded to 599349052)

Note: COVER BREATHER AND STRAINER

$

$

Not available

8

Husqvarna 590971701

SERVICE KIT KIT.VALVE (KIT 10)

Note: VALVE

$

$

Not available

9

Husqvarna 590971801

SERVICE KIT KIT.ROCKER.ARM. (K

Note: ROCKER ARM

$

$

Not available

10

Husqvarna 590971901

SERVICE KIT KIR.HEXAGON.BOLT W
(Superseded to 599349093)

Note: BOLT

$

$

Not available

11

Husqvarna 590972101

SERVICE KIT KIT.AIR.DEFLECTOR
(Superseded to 599349050)

Note: AIR DEFLECTOR

$

$

Not available

12

Husqvarna 590972201

SERVICE KIT KIT.CRANKSHAFT (KI
(Superseded to 599349134)

Note: CRANKSHAFT

$

$

Not available

13

Husqvarna 590972301

SERVICE KIT KIT.BALANCING.SHAF

Note: BALANCING SHAFT KIT

$

$

Not available

14

Husqvarna 590972401

SERVICE KIT KIT.CRANKSHAFT.ASS
(Superseded to 599349103)

Note: CAMSHAFT

$

$

Not available

15

Husqvarna 590972501

SERVICE KIT KIT.OIL.STRAINER (
(Superseded to 599349070)

Note: OIL STRAINER

$

$

Not available

16

Husqvarna 590972601

SERVICE KIT KIT.FILL.TUBE (KIT

Note: TUBE FILL KIT

$

$

Not available

17

Husqvarna 590972701

SERVICE KIT KIT.COMPONENTS OF

Note: GOVERNER GEAR KIT

$

$

Not available

18

Husqvarna 590972801

SERVICE KIT KIT.CRANKSHAFT.COV

Note: CRANKCASE COVER KT

$

$

Not available

19

Husqvarna 590972901

SERVICE KIT KIT.SPEED REGULATI

Note: SPEED REGULATING ARM KIT

$

$

Not available

20

Husqvarna 590973101

SERVICE KIT KIT.AIR.FILTER ELE

Note: AIR FILTER

$14.99

$

In Stock, only 2 left!

0

21

Husqvarna 590973501

SERVICE KIT KIT.PRESSING PLATE

Note: PRESSING PLATE KIT

$

$

Not available

22

Husqvarna 590973601

SERVICE KIT KIT.CHARGING AMATU

Note: KIT, CHARGE

$101.99

$

Usually ships in 3-10 days

0

23

Husqvarna 590973801

SERVICE KIT KIT.VOLTAGE.RECTIF
(Superseded to 599349058)

Note: VOLTAGE RECTIFIER

$

$

Not available

24

Husqvarna 590974301

SERVICE KIT KIT.STARTER.MOTOR.
(Superseded to 599349075)

Note: STARTER

$

$

Not available

25

Husqvarna 590975801

SERVICE KIT KIT.COIL.IGNNITION
(Superseded to 599349185)

Note: IGNITION ASSY

$27.99

$

In Stock, only 1 left!

0

26

Husqvarna 590978001

SERVICE KIT KIT.STARTING .DISC

Note: FLYWHEEL

$

$

Not available

27

Husqvarna 590992201

SERVICE KIT KIT.STARTING DISC.

Note: DISC KIT STARTING

$

$

Not available

28

Husqvarna 590992301

SERVICE KIT KIT.IMPELLER (KIT
(Superseded to 599349041)

Note: IMPELLER

$

$

Not available

29

Husqvarna 590965901

ACCESSORY BAG LIT.PACK.9676719

Note: BREATHER TUBE

$

$

Not available

30

Husqvarna 592951101

SERVICE KIT KIT.CRANKCARE.BODY

Note: CRANKCASE

$335.99

$

Usually ships in 3-10 days

0

31

Husqvarna 593098301

CARBURETTOR CARBURETOR.KIT

Note: CARBURETOR KIT

$

$

Not available

32

Husqvarna 593098501

SERVICE KIT KIT.AIR.CLEANER

Note: AIR CLEANER

$

$

Not available

33

Husqvarna 593098601

SERVICE KIT KIT.START.COVER.KI

Note: START COVER KT

$

$

Not available

34

Husqvarna 593098801

SERVICE KIT KIT.THROTTLE.KIT

Note: Throttle Lever Kit

$

$

Not available

35

Husqvarna 592952001

SERVICE KIT KIT.EXHAUST.PIPE

Note: EXHAUST PIPE KIT

$

$

Not available
