LTH 1742 (954570376-B) - Husqvarna 42" Lawn Tractor (2002-12) Chassis And Enclosures Parts Diagram

42" Lawn Tractor

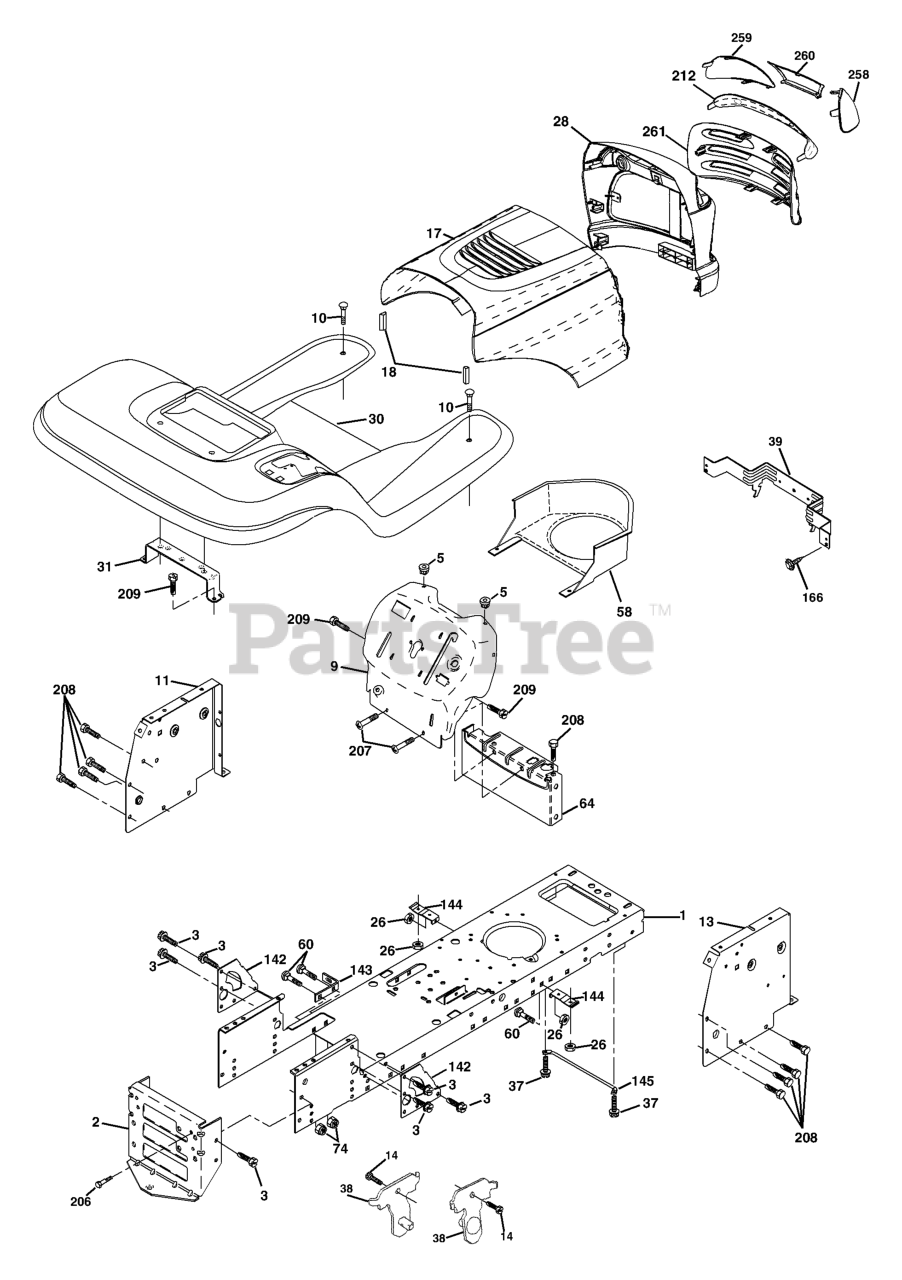

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$398.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

DRAWBAR, 12GA

$45.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 532171853

DASH
(Superseded to 532168336)

$

$

Not available

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$

$

Not available

13

Husqvarna 532181719

PANEL DASH RH
(Superseded to 532172105)

$

$

Not available

14

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532185211

HOOD
(Superseded to 532185682)

$136.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532184921

BUMPER.HOOD.LARGE.1.75"

$5.99

$

In Stock, Qty 9

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

28

Husqvarna 532185292

GRILL/LEN.ASM.DL.HUSQ

$

$

Not available

30

Husqvarna 532180507

FENDER FOOTREST
(Superseded to 532192813)

$

$

Not available

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

$20.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

38

Husqvarna 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$

$

Not available

39

Husqvarna 532174714

BRACKET PIVOT LASER
(Superseded to 532407807)

$34.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

60

Husqvarna 872140606

Bolt RDHD SQNK 3/8-16 x 3/4

$

$

Not available

64

Husqvarna 532154798

DASH LOWER

$51.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

LOCKNUT

$

$

Not available

142

Husqvarna 532175702

PLATE REINFORCEMENT

$10.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.99

$

In Stock, Qty 12

0

144

Husqvarna 532175582

BRKT, FOOT REST

$14.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

166

Husqvarna 532171875

SCREW
(Superseded to 532189747)

$20.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$4.99

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

212

Husqvarna 532183548

INSERT.LENS.REFLECTIVE

$

$

Not available

258

Husqvarna 532185214

LENS LH
(Superseded to 532183379)

$13.99

$

In Stock, only 4 left!

0

259

Husqvarna 532185213

LENS LH
(Superseded to 532183378)

$13.99

$

Usually ships in 3-10 days

0

260

Husqvarna 532185429

COVER.LENS.HUSQ.( HAVE GRAY)

$

$

Not available

261

Husqvarna 532185433

INSERT GRILLE

$

$

Not available

Husqvarna 532005479

PLUG BUTTON T

$9.49

$

Usually ships in 3-10 days

0
