LTH 1742 (954570376-C) - Husqvarna 42" Lawn Tractor (2003-02) Engine Parts Diagram

42" Lawn Tractor

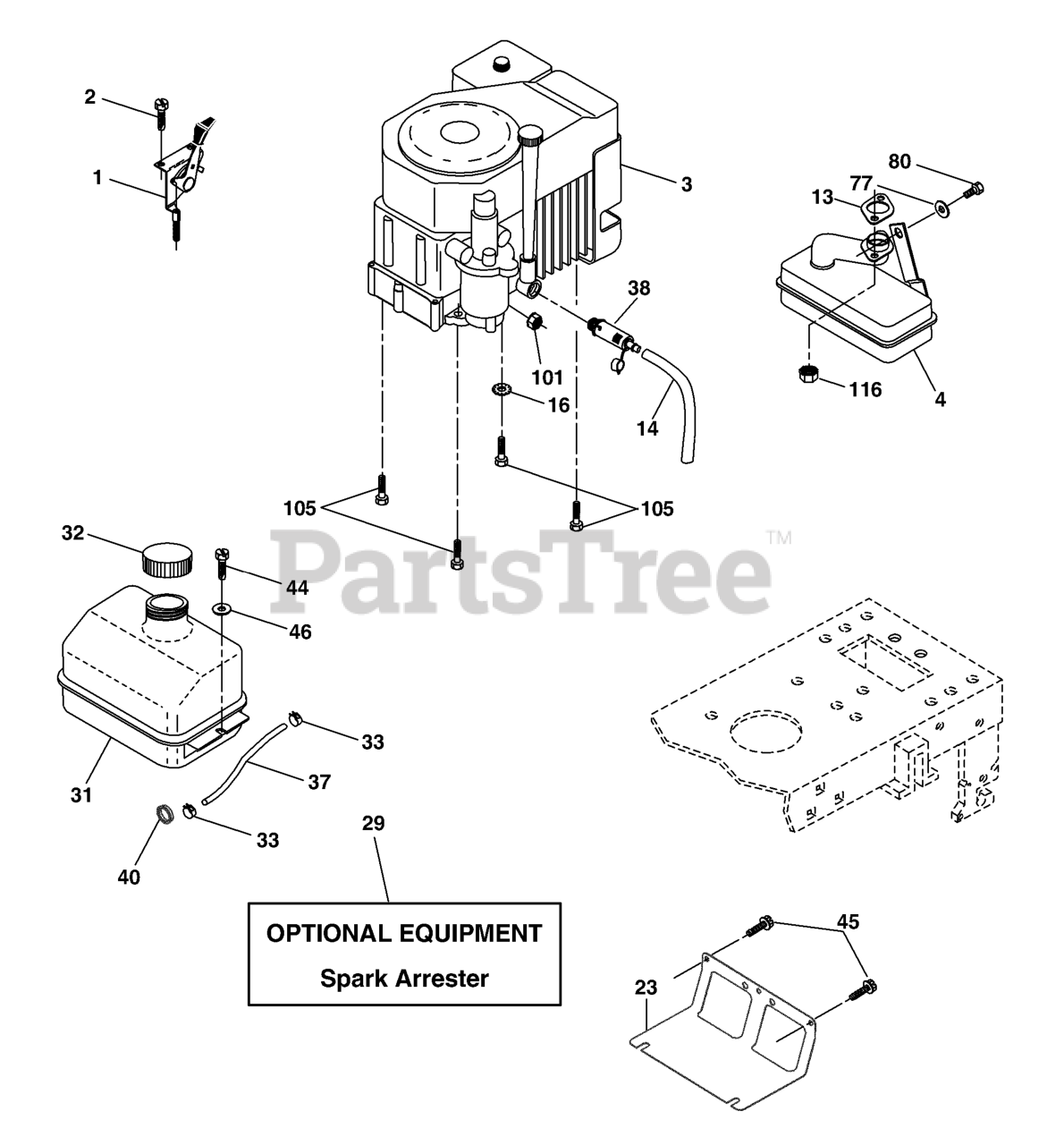

Engine Parts Diagram

  • Title

1

Husqvarna 532170805

CONTROL.THROTTLE.LT/YT

$

$

Not available

2

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

3

Engine, Kohl CV490

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Husqvarna 532174667

MUFFLER.KOHL.CV491.W/PORT

$

$

Not available

13

Husqvarna 532163831

KOHLER GASKET

$

$

Not available

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 12

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$27.99

$

In Stock, Qty 7

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

31

Husqvarna 532184900

TANK.ASM.FUEL.FRONT.W/CAP

$59.99

$

In Stock, Qty 6

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 1 left!

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

77

Husqvarna 819101216

WASHER
(Superseded to 734115441)

$5.99

$

In Stock, Qty 20+

0

80

Husqvarna 874760508

Bolt Hex Hd 5/16-18 x 1/2

$

$

Not available

101

Husqvarna 532163305

FLANGE NUT
(Superseded to 596433401)

$3.99

$

In Stock, only 3 left!

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

116

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0
