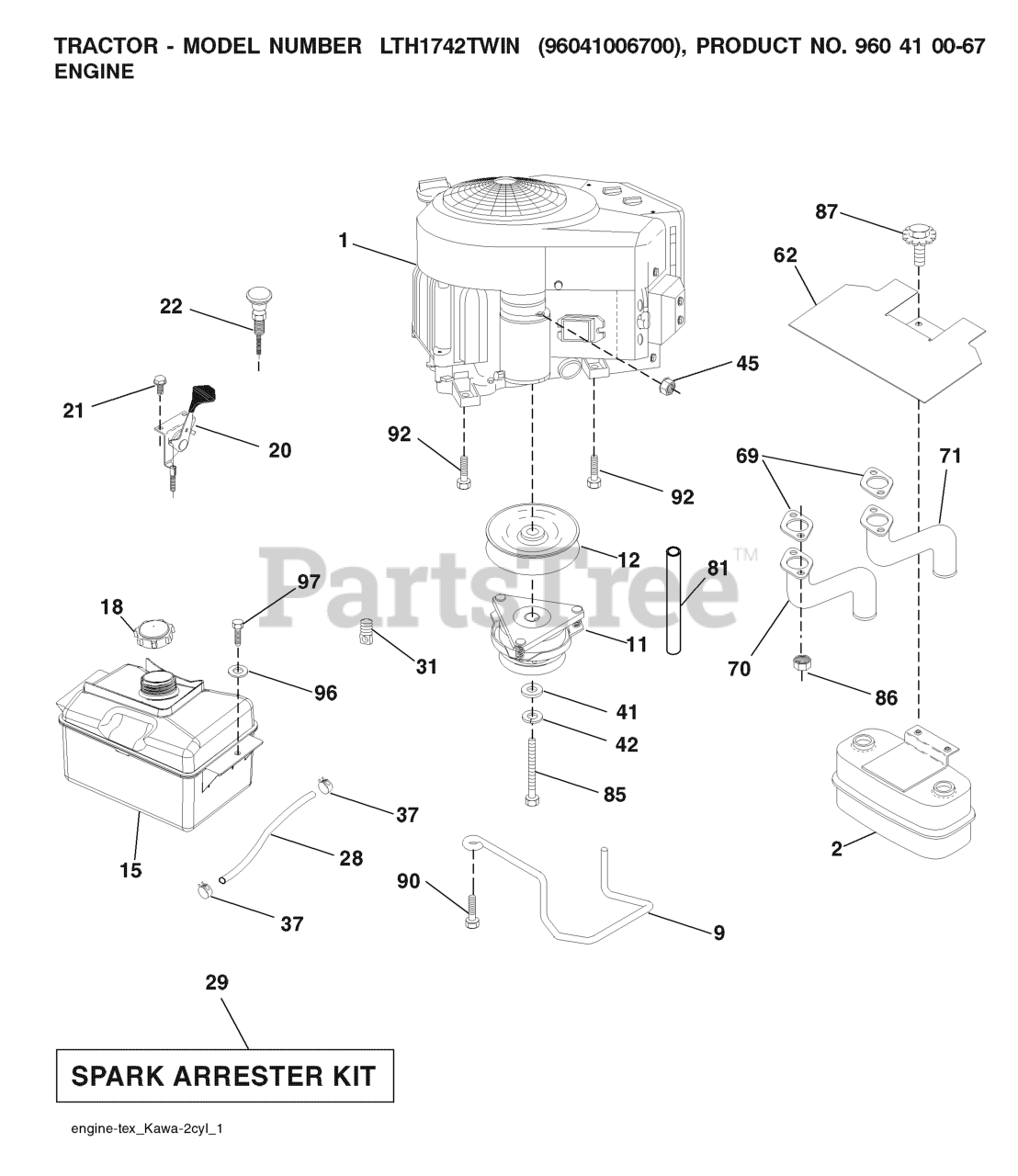

LTH 1742 (960410067-00) - Husqvarna 42" Lawn Tractor (2008-01) ENGINE Parts Diagram

42" Lawn Tractor

ENGINE Parts Diagram

  • Title

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 1 left!

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 14

0

70

Husqvarna 532176067

EXHAUST.TUBE.LH.KAWASAKI.

$131.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

11

Husqvarna 532180505

RB.CLUTCH.OGURA.4.4.PD
(Superseded to 583389701)

$418.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

15

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$62.99

$

In Stock, Qty 6

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

71

Husqvarna 532176068

EXHAUST.TUBE.RH.KAWASAKI.

$131.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$33.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, only 2 left!

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

Usually ships in 3-10 days

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 532145006

PUSH CLIP

$3.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0
