LTH 17538 (960430298-00) - Husqvarna 38" Lawn Tractor (2018-08) ENGINE Parts Diagram

38" Lawn Tractor

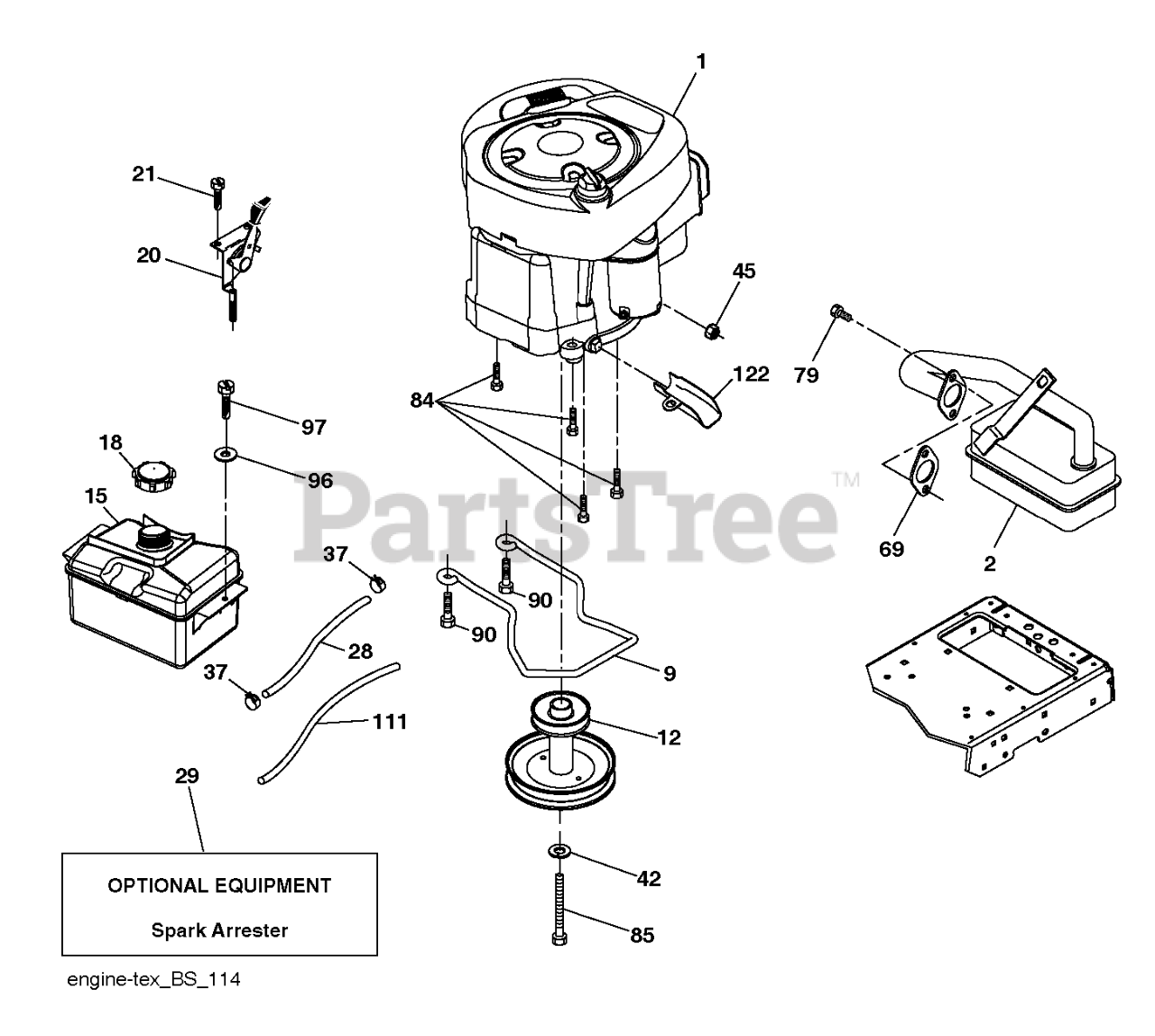

ENGINE Parts Diagram

  • Title

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 9

0

79

Husqvarna 596134201

Screws

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 585822501

NEEDS DESCRIPTION

Note: ENGINE B&S MODEL NO. 31R977-0014-G1 (585822501)

$

$

Currently unavailable

9

Husqvarna 596501502

Keepers

$7.49

$

In Stock, Qty 9

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

15

Husqvarna 597952203

FUEL TANK

$85.99

$

Usually ships in 3-10 days

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

111

Husqvarna 596941501

TUBE.PURGE.FUEL.1875

$2.49

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, Qty 8

0

2

Husqvarna 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$44.99

$

In Stock, only 2 left!

0

12

Husqvarna 586478501

ENGINE.PULLEY

$40.99

$

In Stock, only 3 left!

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 13

0

18

Husqvarna 581176101

CAP.FUEL.2 WAY VENT

$53.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

In Stock, only 1 left!

0
