LTH 17538 (960430298-00) - Husqvarna 38" Lawn Tractor (2018-08) MOWER DECK / CUTTING DECK Parts Diagram

38" Lawn Tractor

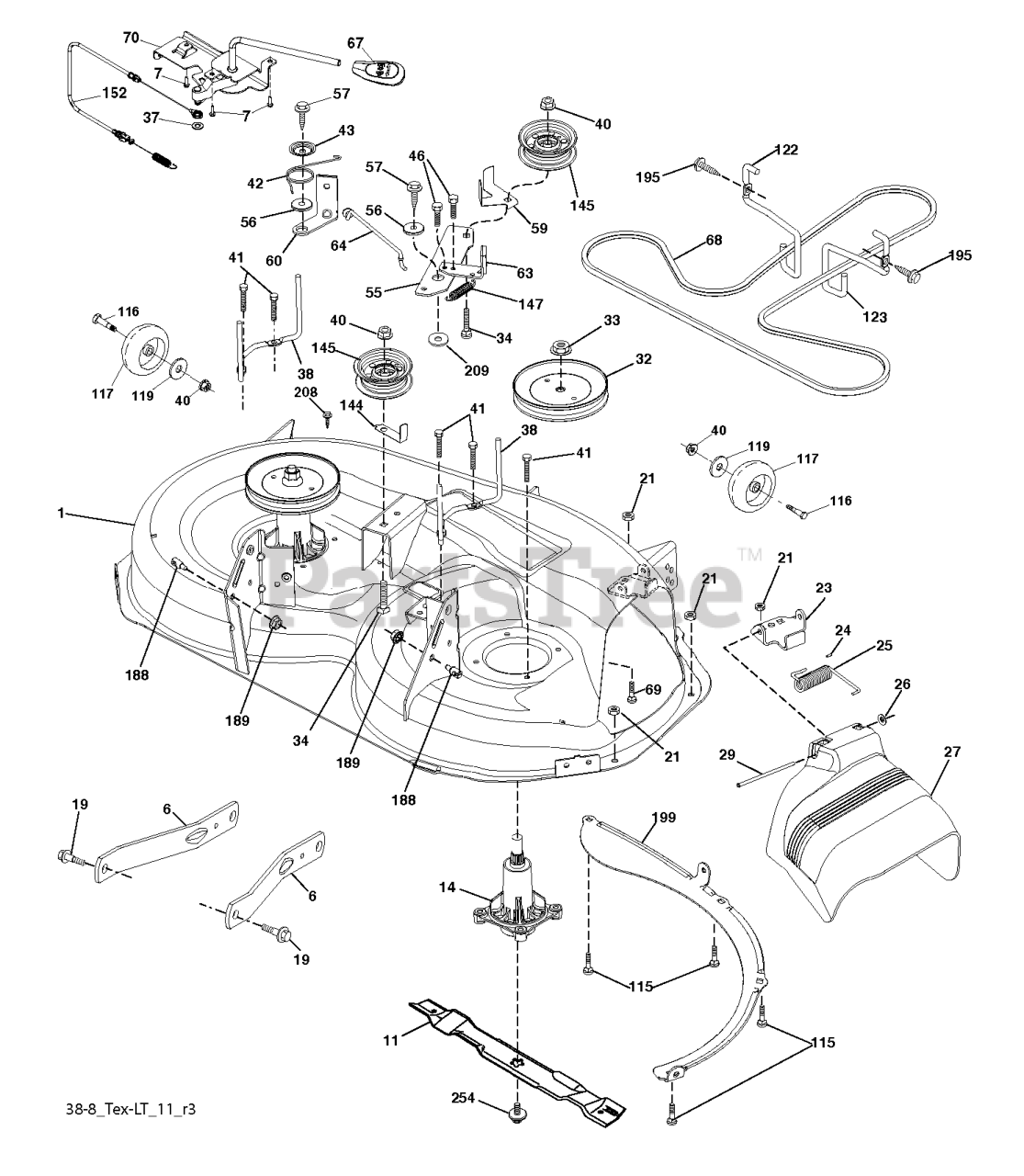

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

- -

Husqvarna 592938901

DECK.SVC.38-8"3N1.C.2GW.TX.ORA

Note: REPLACEMENT MOWER

$739.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

IDLER.ARM

$4.99

$

Usually ships in 3-10 days

0

188

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$4.99

$

In Stock, Qty 15

0

147

Husqvarna 532401872

SPRING RETURN

$4.99

$

In Stock, Qty 15

0

64

Husqvarna 532199918

LINKAGE.BRAKE.ASM.ZINC

$24.99

$

In Stock, Qty 14

0

209

Husqvarna 596135501

Washers

$3.99

$

In Stock, Qty 17

0

199

Husqvarna 532400095

BAFFLE.VORTEX.FRONT.38"

$18.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 2 left!

0

32

Husqvarna 532199789

PULLEY.MANDREL.5.0.PD.38"

$21.99

$

In Stock, only 1 left!

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

152

Husqvarna 532435111

CABLE.CLUTCH.MANUAL.

$29.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 532408381

V-BELT

$60.99

$

In Stock, only 4 left!

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 11

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 596134801

Nuts

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 595297001

Rods

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 587819701

KIT.MANDREL.NONGREASE.TALL

$47.99

$

In Stock, Qty 20+

0

69

Husqvarna 596136401

Bolts

$3.99

$

Usually ships in 3-10 days

0

115

Husqvarna 596039401

BOLT ROUND HEAD SQUARE NECK BO

$3.99

$

In Stock, Qty 20+

0

123

Husqvarna 532197259

KEEPER BELT RH

Note: TH

$

$

Not available

117

Husqvarna 589527401

WHEEL.GAUGE.RALLY.NARROW

Note: (589527401) WHEEL

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532199541

KEEPER BELT LH MANDREL
(Superseded to 532400140)

Note: LH

$53.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532199470

RP ARM.BRAKE.MOWER.38"LH.TEX
(Superseded to 532400130)

Note: RH

$18.99

$

In Stock, Qty 13

0

27

Husqvarna 532193968

SHIELD, DEFLECTOR
(Superseded to 532192572)

$80.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

Note: LH

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 581116302

BLADE.2 IN 1.38"DECK.BLACK

$14.99

$

In Stock, Qty 20+

0

34

Husqvarna 596136101

GSPW Bolts

$3.99

$

In Stock, Qty 20+

0

144

Husqvarna 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.49

$

In Stock, Qty 19

0

1

Husqvarna 592938801

DECK.SVC.WLDT.38"

$283.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

116

Husqvarna 596434402

Bolts

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 532199471

ARM BRAKE MOWER RH 38"

Note: LH

$15.99

$

In Stock, Qty 20+

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

189

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

119

Husqvarna 596134901

GSPH

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

254

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0
