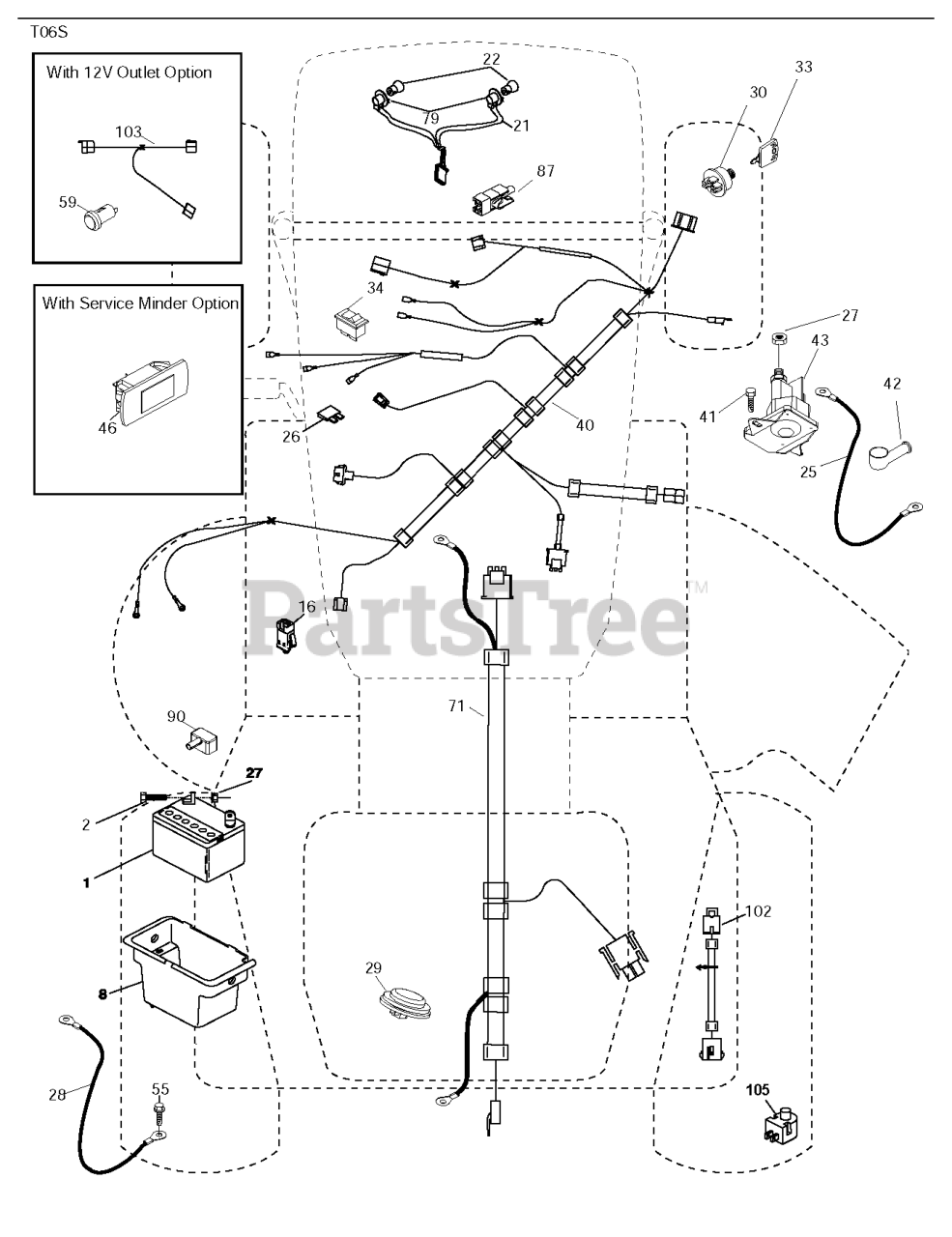

LTH 1797 (960410051-02) - Husqvarna 97cm Lawn Tractor (2008-11) ELECTRICAL Parts Diagram

97cm Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

40

Husqvarna 532401098

HARNESS IGN. DASH

$96.99

$

In Stock, only 1 left!

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$17.99

$

In Stock, Qty 9

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$45.99

$

In Stock, Qty 20+

0

105

Husqvarna 532407568

REVERSE SWITCH

$17.99

$

In Stock, only 2 left!

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$27.99

$

In Stock, only 3 left!

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$21.99

$

In Stock, only 1 left!

0

41

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 532193228

BOX.BATTERY.MNT.REAR.L

$31.99

$

In Stock, only 1 left!

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

$11.99

$

In Stock, Qty 20+

0

46

Husqvarna 532401763

RP.GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$

$

Not available

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 12

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

90

Husqvarna 532400725

COVER, TERMINAL BATTERY
(Superseded to 532435395)

$5.99

$

In Stock, only 1 left!

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

28

Husqvarna 532198885

CABLE.BLACK.18"REAR.BA

$27.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$35.99

$

In Stock, Qty 20+

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 6

0

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

25

Husqvarna 532412894

CABLE.STARTER.6GA.BL/RED.14.

$

$

Not available

87

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

$20.99

$

In Stock, Qty 20+

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$33.99

$

In Stock, Qty 20+

0

71

Husqvarna 532400449

HARNESS.IGN.CHASS.TEX.REAR.BAT

$43.99

$

In Stock, only 3 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0
