LTH 18 - Jonsered Lawn Tractor (1998-02) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

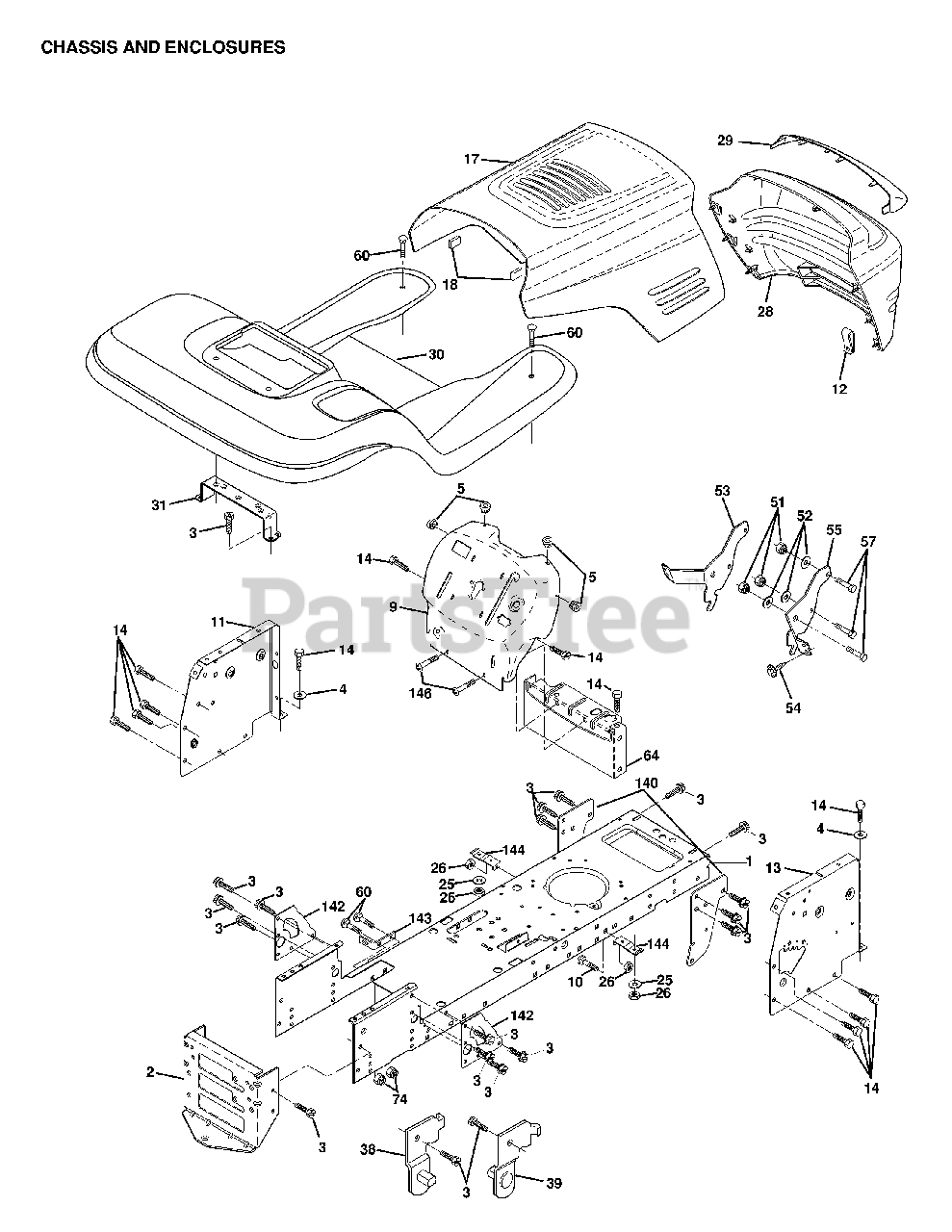

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Jonsered 532153871

CHASSIS WELDMENT
(Superseded to 532160525)

$

$

Not available

2

Jonsered 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

3

Jonsered 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

4

Jonsered 819131216

WASHER

$

$

Not available

5

Jonsered 155272

No Description Available
(Superseded to 532155272)

$4.99

$

In Stock, only 3 left!

0

9

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$

$

Not available

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$

$

Not available

11

Jonsered 532146956

PANEL PNT DASH LH
(Superseded to 532174996)

$

$

Not available

12

Jonsered 532145660

CLIP

$3.49

$

In Stock, only 1 left!

0

13

Jonsered 532146962

PANEL DASH RH
(Superseded to 532172108)

$

$

Not available

14

Jonsered 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

17

Jonsered 532150760

No Description Available

$

$

Not available

20

Jonsered 532156437

PLATE MTG
(Superseded to 532180679)

$13.99

$

Usually ships in 3-10 days

0

23

Jonsered 532124028

GROMMET T

$5.99

$

In Stock, only 1 left!

0

25

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

Usually ships in 3-10 days

0

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$

$

Not available

28

Jonsered 532150671

No Description Available

$

$

Not available

29

Jonsered 532145199

No Description Available

$

$

Not available

30

Jonsered 532156793

No Description Available

$

$

Not available

31

Jonsered 532139976

BRACKET

$20.99

$

Usually ships in 3-10 days

0

37

Jonsered 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

38

Jonsered 532139886

BRACKET LH PIVOT

$

$

Not available

39

Jonsered 532139887

BRACKET RH PIVOT

$

$

Not available

51

Jonsered 873800400

LOCKNUT
(Superseded to 539976978)

$

$

Not available

52

Jonsered 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

53

Jonsered 532145201

No Description Available

$

$

Not available

54

Jonsered 817030814

No Description Available
(Superseded to 532161464)

$

$

Not available

55

Jonsered 532145202

BRACKET

$

$

Not available

57

Jonsered 874780412

BOLT
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

58

Jonsered 532150127

AIR DUCT P/L/LT

$

$

Not available

60

Jonsered 872140606

BOLT

$

$

Not available

64

Jonsered 532154798

DASH LOWER
(Superseded to 154798)

$15.99

$

Usually ships in 3-10 days

0

74

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

140

Jonsered 532150556

BRACKET CHASSIS FRONT
(Superseded to 532158418)

$

$

Not available

142

Jonsered 532156095

PLATE REINFORCEMENT
(Superseded to 532175702)

$10.99

$

Usually ships in 3-10 days

0

143

Jonsered 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.99

$

In Stock, Qty 13

0

144

Jonsered 532154207

BRACKET FOOTREST
(Superseded to 532175582)

$14.99

$

Usually ships in 3-10 days

0

145

Jonsered 532154429

AXLE, BRACE

$

$

Not available

146

Jonsered 532154334

SCREW TORX HD 5/16X18

$

$

Not available
