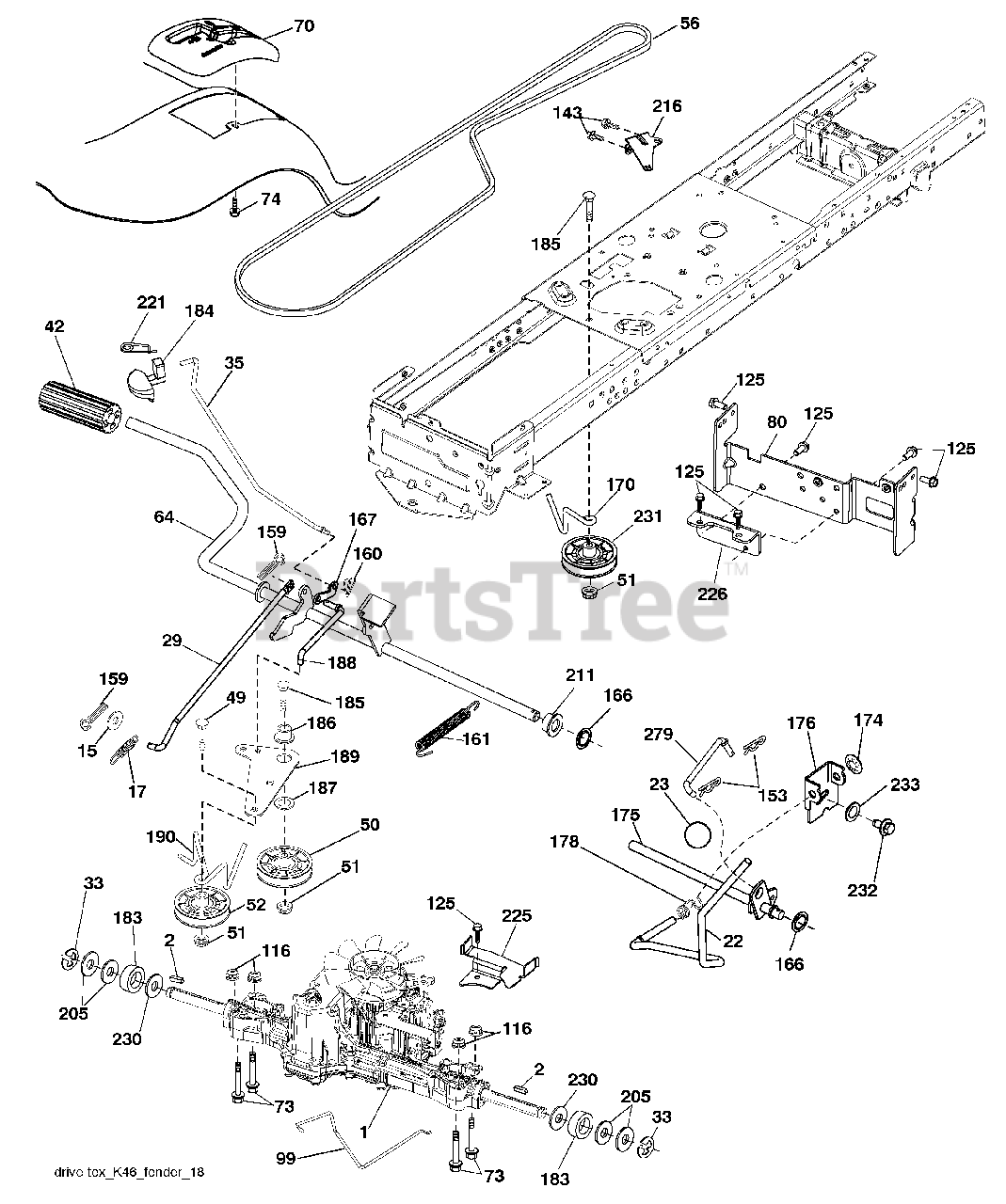

LTH 18538 (960430104-00) - Husqvarna 38" Lawn Tractor (2010-01) Drive Parts Diagram

38" Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle, Tufftorq K46BA

Note: (Internal Parts Not Available)

$

$

Not available

2

Husqvarna 532123583

Key Square

$4.99

$

In Stock, Qty 10

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532413678

Spring, Brake

$7.49

$

In Stock, Qty 15

0

22

Husqvarna 532197660

Rod Shift

$182.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140845

Knob

$12.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532403806

Rod, Brake

$31.99

$

In Stock, only 1 left!

0

33

Husqvarna 812000001

Ring E

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532401031

Rod, Brake, Park

$18.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

49

Husqvarna 872110614

Bolt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

Pulley Idler Flat

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

Idler V-Groove 910" Offset

$12.99

$

In Stock, Qty 20+

0

56

Husqvarna 532130969

V-Belt, Drive

$31.99

$

In Stock, Qty 20+

0

64

Husqvarna 532196200

Shaft Asm. Pedal Brake Control

$34.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532411474

Console
(Superseded to 532439971)

$15.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490544

Bolt Hex 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

Screw 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532410024

Strap Torque
(Superseded to 532440619)

$24.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532415742

Rod Spring Bypass

$10.99

$

In Stock, only 4 left!

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Husqvarna 817490508

Screw THDROL 5/16-18
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

Retainer Spring 1"
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

Retainer Clip

$

$

Not available

161

Husqvarna 532105709

Spring, Return, Clutch

$10.99

$

In Stock, Qty 20+

0

166

Husqvarna 532428305

Nut Push .625
(Superseded to 532429164)

$6.49

$

In Stock, Qty 6

0

167

Husqvarna 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532413430

Keeper Belt Centerspan

$7.49

$

Usually ships in 3-10 days

0

174

Husqvarna 532197289

Nut Push

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 532408539

Shaft Asm Shift

$24.99

$

In Stock, only 1 left!

0

176

Husqvarna 532196214

Arm Clevis Rod Shift

$7.49

$

Usually ships in 3-10 days

0

178

Husqvarna 532197456

Spring Shift

$6.49

$

In Stock, only 2 left!

0

183

Husqvarna 532137057

Spacer Axle

$7.49

$

In Stock, Qty 10

0

184

Husqvarna 532409747

Handle Parking Brake
(Superseded to 532411484)

$67.99

$

Usually ships in 3-10 days

0

185

Husqvarna 872110622

Bolt

$3.99

$

In Stock, only 3 left!

0

186

Husqvarna 532194321

Spacer Retainer

$7.49

$

Usually ships in 3-10 days

0

187

Husqvarna 819133210

Washer
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Husqvarna 532194317

Bellcrank Ground Drive

$

$

Not available

190

Husqvarna 532194318

Keeper Bellcrank Ground Drive

$8.99

$

In Stock, Qty 19

0

205

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

211

Husqvarna 532196212

Bushing Shaft

$6.49

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

Bracket Pulley Idler

$7.49

$

In Stock, only 2 left!

0

221

Husqvarna 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, Qty 10

0

225

Husqvarna 532403319

Keeper Belt Transaxle

$3.49

$

In Stock, only 4 left!

0

226

Husqvarna 532401564

Bracket Mount Torque

$18.99

$

Usually ships in 3-10 days

0

230

Husqvarna 532188967

Washer Harden .793 x 1.637 x 060

$4.99

$

In Stock, Qty 20+

0

231

Husqvarna 532407287

Idler V-Groove 1.688" Offset

$18.99

$

In Stock, Qty 20+

0

232

Husqvarna 874780716

Bolt 7/16-14 x 1 Gr 5

$4.99

$

Usually ships in 3-10 days

0

233

Husqvarna 532405296

Washer Serrated

$6.49

$

Usually ships in 3-10 days

0

279

Husqvarna 532413150

Link Shift

$24.99

$

Usually ships in 3-10 days

0
