LTH 18542 (954571731-A) - Husqvarna 42" Lawn Tractor (2003-11) Mower Deck Parts Diagram

42" Lawn Tractor

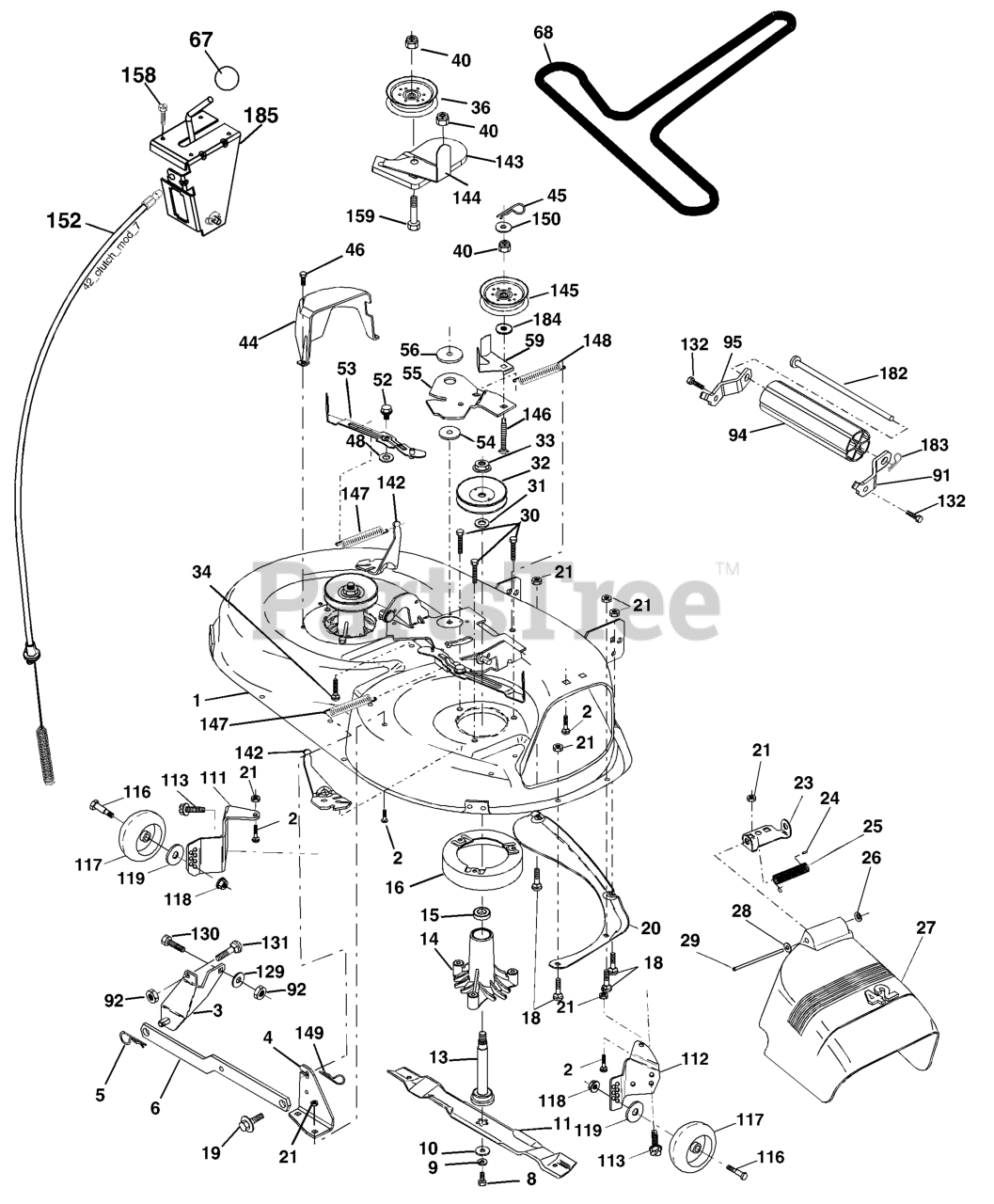

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532165892

42" DECK KIT
(Superseded to 532176027)

$

$

Not available

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

In Stock, Qty 12

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

$21.99

$

In Stock, Qty 13

0

4

Husqvarna 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532178024

BAR SWAY DECK
(Superseded to 531149301)

$14.99

$

In Stock, only 2 left!

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

Note: (The following blades are available)

$6.99

$

In Stock, Qty 14

0

11

Husqvarna 532134149

BLADE.42".MULCH

Note: (For mulching mowers only)

$

$

Not available

11

Husqvarna 532139775

BLADE.42"MULCH.PREMIUM
(Superseded to 594893101)

Note: (For better wear when mulching)

$

$

Not available

11

Husqvarna 532138971

42" HI-LIFT BLADE

Note: (For bagging or discharging)

$21.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$41.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)
(Superseded to 529910001)

$53.99

$

In Stock, only 2 left!

0

15

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Husqvarna 532159770

BAFFLE.VORTEX
(Superseded to 531167001)

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

23

Husqvarna 532177563

BRKT, DEFL. MOWER
(Superseded to 529845901)

$5.99

$

In Stock, Qty 14

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

SPRING TORSION

$8.49

$

In Stock, Qty 16

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$43.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 X 5/8 X 16 Ga

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$21.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 11

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$33.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$39.99

$

In Stock, Qty 7

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 16

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

48

Husqvarna 532133944

WASHER

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532139888

BOLT.SHOULDER.5/16-18

$4.99

$

In Stock, Qty 16

0

53

Husqvarna 532184907

ARM BRAKE ASSY
(Superseded to 531168401)

$23.99

$

In Stock, Qty 20+

0

54

Husqvarna 532178515

WASHER

$7.49

$

In Stock, Qty 20+

0

55

Husqvarna 532155046

ARM IDLER 42" MOWER LT/YT
(Superseded to 531166601)

$23.99

$

In Stock, Qty 20+

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$7.49

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$9.99

$

In Stock, Qty 6

0

68

Husqvarna 532144959

BELT V SECONDARY

$41.99

$

In Stock, Qty 20+

0

91

Husqvarna 532180532

BRACKET ASM NOSEROLLER LH
(Superseded to 531151201)

$5.99

$

In Stock, Qty 8

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

94

Husqvarna 532132264

NOSE ROLLER

$37.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180533

BRACKET ASM NOSEROLLER RH
(Superseded to 531150601)

$5.99

$

In Stock, only 2 left!

0

111

Husqvarna 532179292

BRACKET, WHEEL
(Superseded to 532181040)

$

$

Not available

112

Husqvarna 532179293

BRACKET, WHEEL
(Superseded to 532181040)

$

$

Not available

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 19

0

116

Husqvarna 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0

117

Husqvarna 532165746

WHEEL.GAUGE.STANDARD

$

$

Not available

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

130

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

131

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 14

0

132

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

142

Husqvarna 532165890

ARM SPRING BRAKE MOWER
(Superseded to 529845801)

$

$

Not available

143

Husqvarna 532157109

BRACKET, ARM IDLER
(Superseded to 529844301)

$9.99

$

In Stock, Qty 14

0

144

Husqvarna 532158634

DNO KEEPER.BELT.42".CLUTCH.CBL
(Superseded to 532173441)

$8.49

$

In Stock, Qty 16

0

145

Husqvarna 532165888

PULLEY
(Superseded to 532173437)

$33.99

$

In Stock, Qty 12

0

146

Husqvarna 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, Qty 18

0

147

Husqvarna 532131335

SPRING EXTENSION
(Superseded to 532179748)

$5.99

$

In Stock, Qty 20+

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 20+

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$4.99

$

In Stock, only 1 left!

0

150

Husqvarna 819091210

WASHER LT
(Superseded to 596039801)

$3.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532169676

CLUTCH CABLE 42"
(Superseded to 532175067)

$53.99

$

In Stock, Qty 20+

0

158

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

159

Husqvarna 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 10

0

182

Husqvarna 532179126

ROD ROLLER NOSE STANDARD

$

$

Not available

183

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

184

Husqvarna 819131410

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

185

Husqvarna 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, Qty 8

0

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

Note: (Includes Housing, Shaft and Shaft Hardware Only-Pulley not Included)

$71.99

$

In Stock, Qty 20+

0

Husqvarna 532171491

REPLACEMENT MOWER COMPLETE
(Superseded to 532169583)

Note: (Std Deck-order separately nose roller and gauge wheel components key nos. 91, 94, 95, 132, 182, 183, 116-119)

$

$

Not available
