LTH 2038 (960430154-01) - Husqvarna 38" Lawn Tractor (2013-03) DRIVE Parts Diagram

38" Lawn Tractor

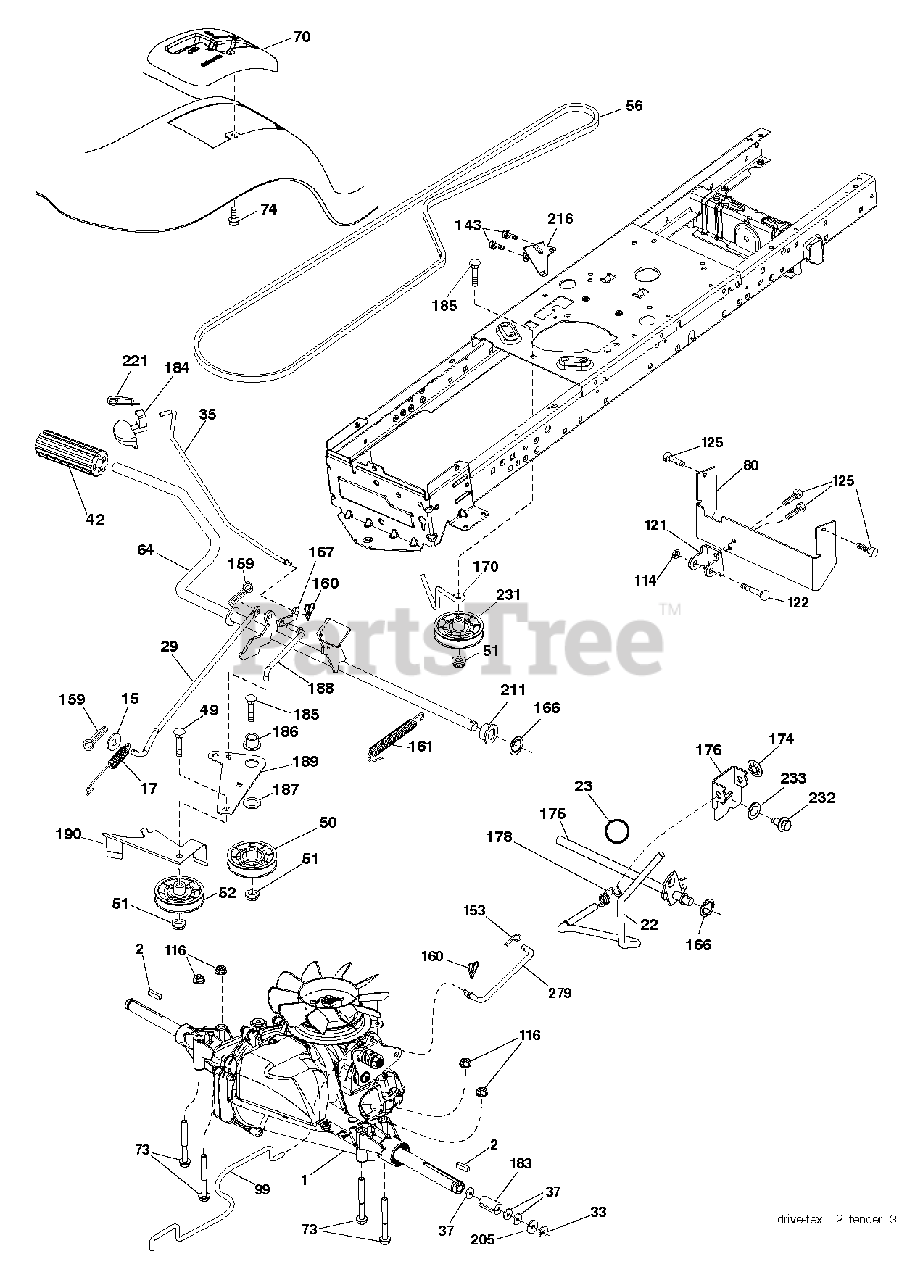

DRIVE Parts Diagram

  • Title

1

000000000

Note: TRANSAXLE T2-CDBE-5X1A-18C1 (581115601)

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197296

SPRING.BRAKE.HG3000/3500

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532197660

532174651

$182.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$12.99

$

Usually ships in 3-10 days

0

29

Husqvarna 581506401

ROD.BRAKE.T2.TEX

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 17

0

35

Husqvarna 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX

$18.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 16

0

49

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Husqvarna 581270501

BELT.GROUND.DRIVE.T2-HP.CE

$42.99

$

In Stock, Qty 6

0

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532439971

CONSOLE.SHIFT.STL.HYD.TEX.GREY

$15.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 581550701

STRAP.TORQUE.T2

$18.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532408418

ROD.ASM.BYPASS.SPRING.T2.FS

$9.99

$

Usually ships in 3-10 days

0

114

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

121

Husqvarna 532175611

BRACKET STRAP TORQUE

$4.99

$

Usually ships in 3-10 days

0

122

Husqvarna 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 1 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

174

Husqvarna 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 532408539

SHAFT.ASM.SHFT.T2.TLT

$24.99

$

In Stock, only 1 left!

0

176

Husqvarna 532196214

ARM.CLEVIS.ROD.SHIFT

$7.49

$

Usually ships in 3-10 days

0

178

Husqvarna 532197456

SPRING.SHIFT.GT2006

$6.49

$

In Stock, only 2 left!

0

183

Husqvarna 532156972

SPACER, AXLE PVST

$

$

Not available

184

Husqvarna 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532411484)

$67.99

$

Usually ships in 3-10 days

0

185

Husqvarna 872110622

BOLT

$3.99

$

In Stock, only 1 left!

0

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

211

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

231

Husqvarna 532407287

IDLER.V-GROOVE.1.688.OFFSET

$18.99

$

In Stock, Qty 20+

0

232

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Husqvarna 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

279

Husqvarna 532424155

LINK.SHIFT.T2

$15.99

$

Usually ships in 3-10 days

0
