LTH 2042 (954571953-A) - Husqvarna 42" Lawn Tractor (2003-12) Electrical Parts Diagram

42" Lawn Tractor

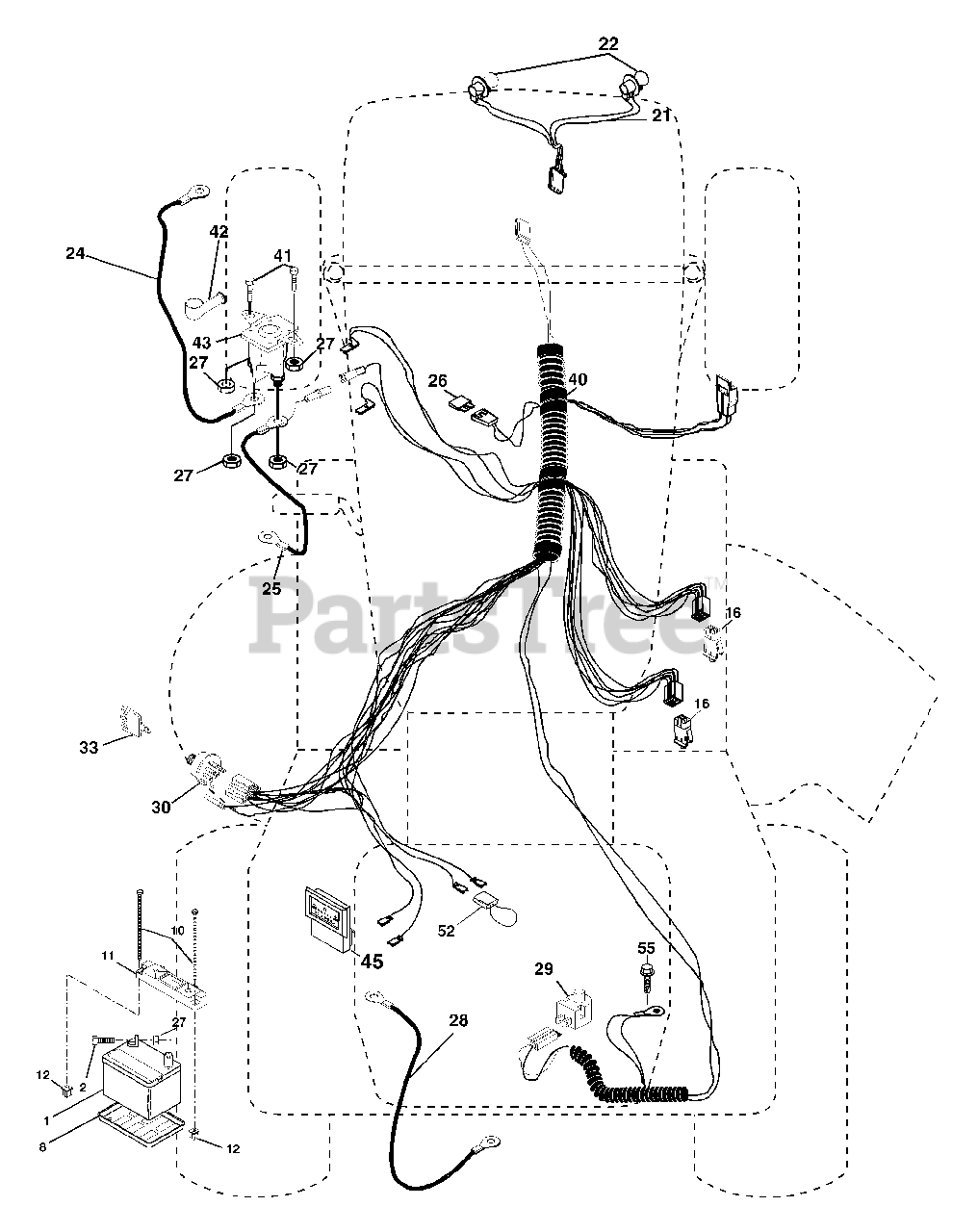

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20 unc x 3/4

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532124886

Tray Battery
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt 1/4-20 x 7.5
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Hold down Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut Push Nylon 1/4
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532176138

Switch Interlock

$15.99

$

In Stock, Qty 20+

0

21

Husqvarna 532175688

Harness Asm Light W/4152j

$44.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532124788

Cable Battery 6 Ga. 11" red
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

25

Husqvarna 532146148

Cable Battery 6 Ga. 22" red w/16 wire

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

Fuse

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

Cable Ground 6 Ga. 21" black

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 532121305

Switch Plunger Gray
(Superseded to 532421062)

$10.99

$

In Stock, Qty 20+

0

30

Husqvarna 532175566

Switch Ign Delta

$12.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 532179720

Harness Ign.

$120.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 20+

0

45

Husqvarna 532122822

Ammeter Rectangular 15 amp

$18.99

$

In Stock, only 1 left!

0

52

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 817490508

Screw THDROL 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0
