LTH 2042 (954571953-B) - Husqvarna 42" Lawn Tractor (2004-01) Mower Deck Parts Diagram

42" Lawn Tractor

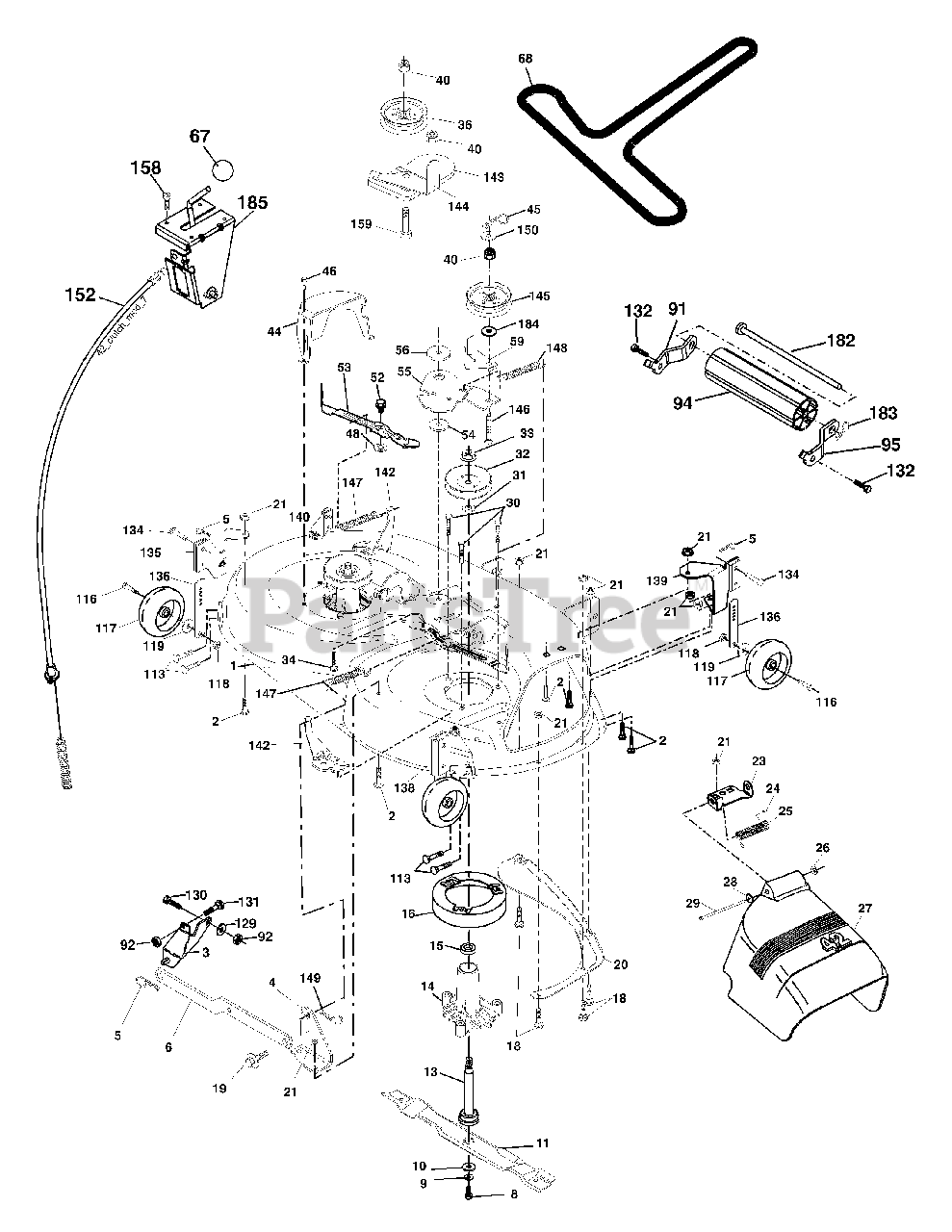

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532182032

Deck Asm 42"weldment
(Superseded to 583147401)

$433.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18 unc x 3/4
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Asm Fr Sway Bar 38/42
(Superseded to 531165401)

$20.99

$

In Stock, Qty 11

0

4

Husqvarna 532165460

Bracket Asm Deck 42"sway Bar

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532178024

Deck Sway Bar
(Superseded to 531149301)

$13.99

$

In Stock, only 1 left!

0

8

Husqvarna 532850857

Bolt 3/8 - 24 x 1.25 Gr. 8

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

Washer Lock Hvy 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer Hard Blade Mower Vented

Note: (The following blades are available)

$6.99

$

In Stock, Qty 16

0

11

Husqvarna 532134149

Blade, 42"
(Superseded to 594892701)

Note: (For mulching mowers only)

$

$

Not available

11

Husqvarna 532139775

Blade, 42" Mulching Premium
(Superseded to 594893101)

Note: (For better wear when mulching)

$

$

Not available

11

Husqvarna 532138971

Blade, 42" Hi-Lift

Note: (For bagging or discharging)

$20.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, Qty 19

0

14

Husqvarna 532128774

Housing Mandrel Vented
(Superseded to 529910001)

$51.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

Bearing Ball Mandrel

$14.99

$

In Stock, Qty 20+

0

16

Husqvarna 532174493

Stripper Mower
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

Bolt Rdhd Sqnk 5/16-18 x 5/8
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt Shoulder

$

$

Not available

20

Husqvarna 532159770

Baffle Vortex 42
(Superseded to 531167001)

$17.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

Nut Crownlock 5/16-18 unc
(Superseded to 873690500)

$

$

Not available

23

Husqvarna 532177563

Bracket Deflector Mower 42"
(Superseded to 529845901)

$5.99

$

In Stock, Qty 17

0

24

Husqvarna 532105304

Cap Sleeve 80x 112 Blk Mower

$3.49

$

In Stock, Qty 19

0

25

Husqvarna 532123713

Spring Torsion Deflector 2 52

$7.99

$

In Stock, Qty 15

0

26

Husqvarna 532110452

Nut Push Phos & Oil

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532171859

Shield Deflector Mower 42" Blk
(Superseded to 532130968)

$43.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

29

Husqvarna 532131491

Rod Hinge 42"6 75 Wlg
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thd Rolling
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

Washer Spacer

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153535

Pulley Mandrel 42"
(Superseded to 532173436)

$20.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

Nut Toplock Flng
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
(Superseded to 596136101)

$3.49

$

In Stock, only 2 left!

0

36

Husqvarna 532131494

Pulley Idler Flat
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

Nut Lock Flg 3/8-16 unc
(Superseded to 532409149)

$1.49

$

In Stock, Qty 19

0

44

Husqvarna 532140088

Guard Mandrel LH Black

$39.99

$

In Stock, only 2 left!

0

45

Husqvarna 532124788

Spring Retainer 1" Zinc/cad
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

46

Husqvarna 532137729

Screw Hex Thd Cut 1/4-20 x 5/8 T

$2.49

$

In Stock, Qty 20+

0

48

Husqvarna 532133944

Washer Hardened Smaller

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532139888

Bolt Shoulder 5/16-18 unc Blkz

$4.99

$

In Stock, Qty 6

0

53

Husqvarna 532184907

Arm Asm Pad Brake

$

$

Not available

54

Husqvarna 532178515

Washer Hardened

$6.99

$

In Stock, Qty 9

0

55

Husqvarna 532155046

Arm Idler 42"mower LT/YT
(Superseded to 531166601)

$22.99

$

In Stock, Qty 9

0

56

Husqvarna 532165723

Spacer Retainer Mower

$6.99

$

In Stock, only 2 left!

0

59

Husqvarna 532141043

Guard TUV Idler
(Superseded to 531165901)

$5.99

$

In Stock, Qty 18

0

67

Husqvarna 532106932

Knob Rd 3/8-16 Plstc Thds Blk

$9.49

$

In Stock, Qty 7

0

68

Husqvarna 532144959

V-Belt Mower 42"

$43.99

$

In Stock, Qty 20+

0

91

Husqvarna 532180532

Bracket Asm Noseroller LH
(Superseded to 531151201)

$5.99

$

In Stock, Qty 9

0

92

Husqvarna 873800600

Nut 3/8-16 unc
(Superseded to 873680600)

$

$

Not available

94

Husqvarna 532132264

Roller Nose 38 & 42

$37.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180533

Bracket Asm Noseroller RH
(Superseded to 531150601)

$5.99

$

In Stock, only 2 left!

0

113

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

116

Husqvarna 532184219

Bolt Shoulder 3/8-16 x 3-5/8
(Superseded to 532193406)

$2.49

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

Wheel Gauge Donut Wide

$14.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

Nut Centerlock 3/8-16
(Superseded to 873680600)

$

$

Not available

119

Husqvarna 819121414

Washer 3/8 x 7/8
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

129

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

130

Husqvarna 874780616

Bolt 3/8-16 x 1 Gr.5
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

131

Husqvarna 872140608

Bolt 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

132

Husqvarna 817000612

Screw 3/8-16 x .75

$4.99

$

In Stock, Qty 20+

0

134

Husqvarna 532156941

Pin Head Rivet

$5.99

$

In Stock, only 1 left!

0

135

Husqvarna 532159765

Bracket Asm Whl Ga. Rear LH

$

$

Not available

136

Husqvarna 532155986

Bar Adjusting Gauge Wheel

$26.99

$

In Stock, only 2 left!

0

138

Husqvarna 532159763

Bracket Asm Whl Ga. Rear RH
(Superseded to 532437046)

$

$

Not available

139

Husqvarna 532159767

Bracket Asm Whl Ga. Front Rh

$

$

Not available

140

Husqvarna 532159768

Bracket Asm Whl Ga. Front LH

$

$

Not available

142

Husqvarna 532165890

Arm Spring Brake Mower
(Superseded to 529845801)

$

$

Not available

143

Husqvarna 532157109

Bracket Arm Idler 42"
(Superseded to 529844301)

$9.49

$

In Stock, Qty 5

0

144

Husqvarna 532158634

Keeper Belt 42" Clutch
(Superseded to 532173441)

$7.99

$

In Stock, only 2 left!

0

145

Husqvarna 532165888

Pulley Idler Flat
(Superseded to 532173437)

$28.99

$

In Stock, Qty 6

0

146

Husqvarna 532171977

Bolt Carriage Idler
(Superseded to 532173443)

$6.99

$

Usually ships in 3-10 days

0

147

Husqvarna 532131335

Spring Extension
(Superseded to 532179748)

$5.99

$

In Stock, Qty 20+

0

148

Husqvarna 532169022

Spring Return Idler

$4.99

$

In Stock, Qty 20+

0

149

Husqvarna 532165898

Retainer Spring Yellow

$4.99

$

In Stock, Qty 8

0

150

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 596039801)

$3.49

$

In Stock, only 2 left!

0

152

Husqvarna 532169676

Clutch Cable 42"
(Superseded to 532175067)

$51.99

$

In Stock, Qty 20+

0

158

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 596437001)

$3.49

$

In Stock, Qty 10

0

159

Husqvarna 872140614

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4
(Superseded to 596987501)

$4.99

$

In Stock, only 2 left!

0

182

Husqvarna 532179126

Rod Roller Nose Std.

$

$

Not available

183

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.49

$

In Stock, Qty 20+

0

184

Husqvarna 819131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

185

Husqvarna 532188234

Head Asm Cable Clutch

$51.99

$

In Stock, only 1 left!

0

Husqvarna 532130794

Mandrel Assembly

Note: (Includes Housing, Shaft and Shaft Hardware Only-Pulley not Included)

$62.99

$

In Stock, Qty 15

0

Husqvarna 532185772

Replacement Mower, Complete
(Superseded to 532186917)

Note: (Std. deck-order separately nose roller and gauge wheel components key nos. 5, 91, 94, 95, 113, 116-119, 132, 134, 136, 182, 183)

$

$

Not available
