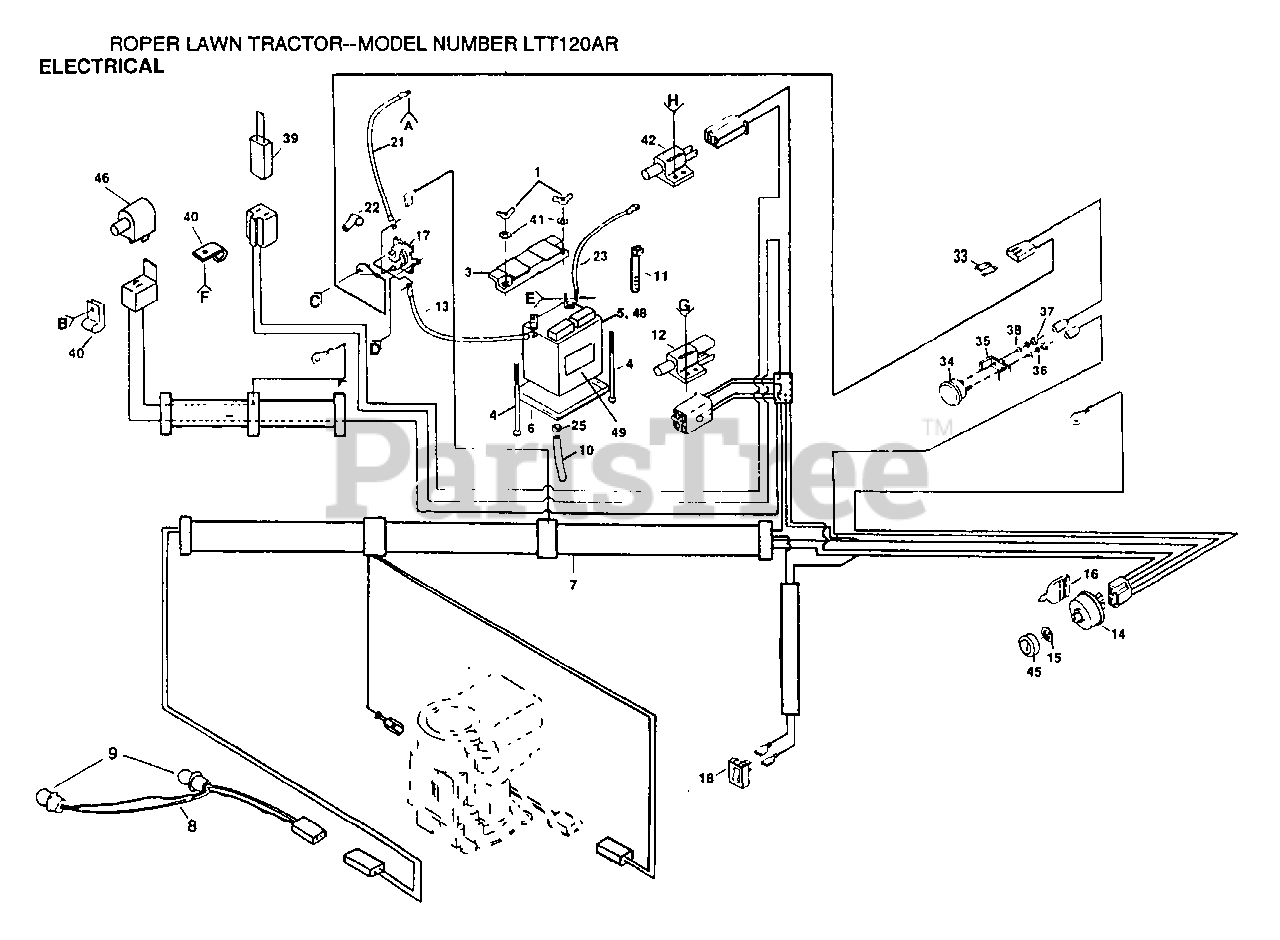

LTT 120 AR - Electrolux/AYP Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 73490400

SUB= 146525

$

$

Not available

3

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

4

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 121265X

SUB= 123899X

$

$

Not available

6

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 122135X

IGNITION HARNES

$

$

Not available

8

Electrolux/AYP 110859X

HARNESS T
(Superseded to 532110859)

$

$

Not available

9

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 7604J

SUB= 7697J

$

$

Not available

11

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 4206J

CABLE-BATTERY T
(Superseded to 185464)

$

$

Not available

14

Electrolux/AYP 4406R

SUB= STD365402

$

$

Not available

15

Electrolux/AYP 109788X

SUB= 124211X

$

$

Not available

16

Electrolux/AYP 109434X

KEY MOLDED

$

$

Not available

17

Electrolux/AYP 109081X

SUB= 146154

$

$

Not available

18

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$8.99

$

In Stock, Qty 11

0

21

Electrolux/AYP 109670X

CABLE LT
(Superseded to 583658101)

$

$

Not available

22

Electrolux/AYP 719J

SUB= 154336

$

$

Not available

23

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 9433R

AMMETER T
(Superseded to 532124900)

$37.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 6009J

SUB= 532131708
(Superseded to 532124901)

$

$

Not available

36

Electrolux/AYP 10101000

SUB= 10071000

$

$

Not available

37

Electrolux/AYP 73911000

NUT

$

$

Not available

38

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 102501X

SUB= 141940
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 235R

CLIPT
(Superseded to 583730001)

$2.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 109787X

SUB= 147626

$

$

Not available

46

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$10.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

49

Electrolux/AYP 121549X

DECAL
(Superseded to 532121549)

$

$

Not available

Electrolux/AYP 121256XOE

OWNER'S MANUAL - ENGLISH

$

$

Not available

Electrolux/AYP 121257XOF

OWNER'S MANUAL - FRENCH

$

$

Not available

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available

Electrolux/AYP 101572X

SHEET-INSTRUCTION (FRENCH)
(Superseded to 532101572)

$

$

Not available
