LTX 1040 (13AX90AR010) - Cub Cadet 42" Lawn Tractor (2009) Frame, Battery & PTO Parts Diagram

42" Lawn Tractor

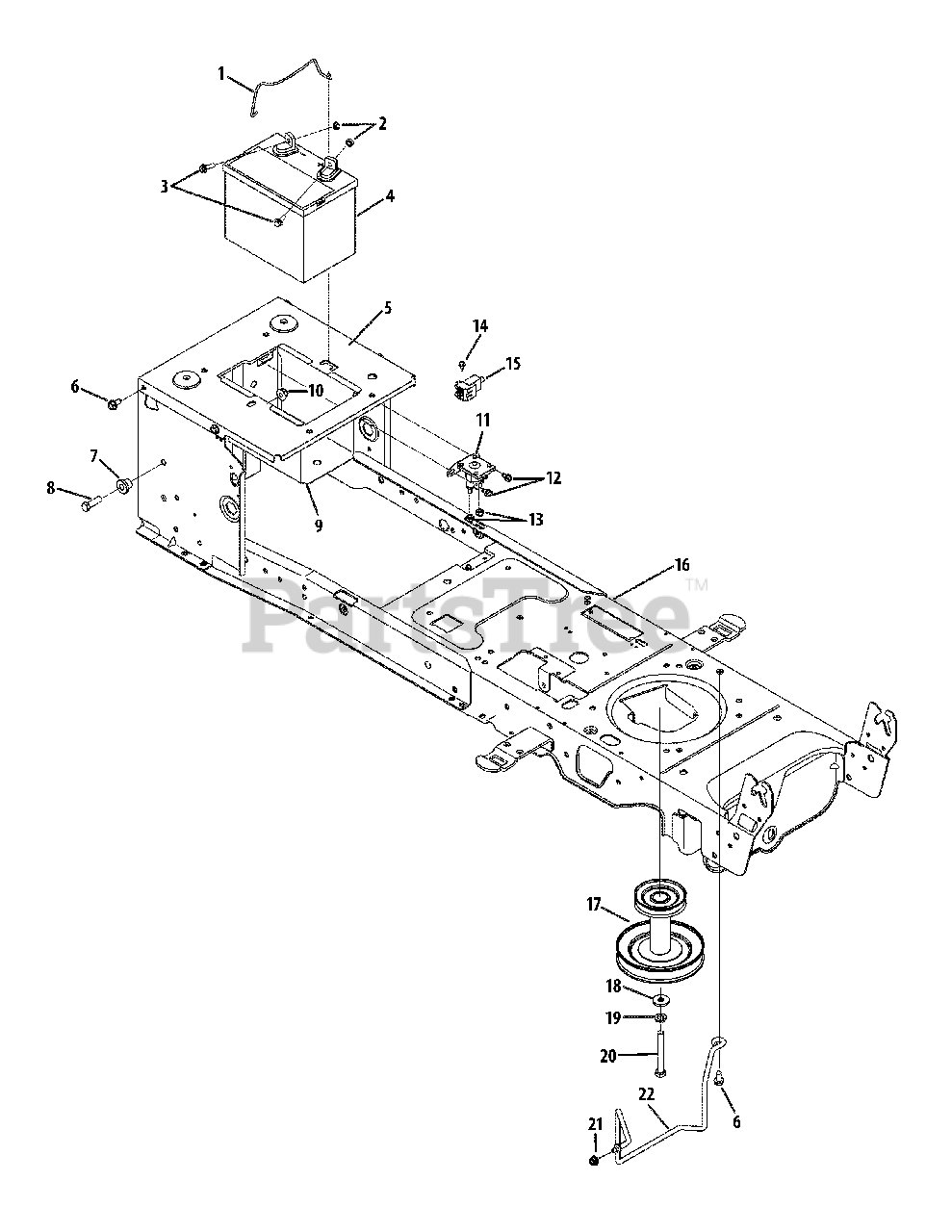

Frame, Battery & PTO Parts Diagram

  • Title

1

Cub Cadet 747-04121A

Battery Hold-Down Rod

$6.99

$

In Stock, Qty 9

0

2

Cub Cadet 712-0271

Sems Nut, 1.4-20

$4.99

$

In Stock, Qty 13

0

3

Cub Cadet 710-04666

Hex Flange, 1.4-20 x .75

$7.49

$

In Stock, Qty 6

0

4

Cub Cadet 925-1707D

Battery

$

$

Not available

5

Cub Cadet 783-06089-0637

Seat Frame Bracket

$57.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3005

Hex Screw, 3.8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 783-0349-0637

Battery Tray

$

$

Not available

10

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 725-04439

Solenoid
(Superseded to 725-04439B)

$42.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0653

Hex Washer Screw, 1.4-20 x .375

$4.99

$

In Stock, only 2 left!

0

13

Cub Cadet 712-04064

Flange Lock Nut, 1.4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, only 2 left!

0

15

Cub Cadet 725-04363

Interlock Switch

$16.99

$

In Stock, Qty 20+

0

16

Cub Cadet 683-04469-0637

Lower Frame Assembly
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 756-04207A

Engine Pulley

$

$

Not available

18

Cub Cadet 736-0322

Flat Washer, .450 x 1.250 x .164

$9.99

$

In Stock, only 4 left!

0

19

Cub Cadet 936-0171

Lock Washer, 7.16
(Superseded to 736-0171)

$4.99

$

In Stock, only 4 left!

0

20

Cub Cadet 710-04607

Hex Screw, 7.16-20 x 2.75

$7.49

$

In Stock, only 3 left!

0

21

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 747-05065

Keeper Rod

$49.99

$

In Stock, only 1 left!

0
