LTX 1042 (13YX91AS010) - Cub Cadet 42" Lawn Tractor (2011) Kohler SV600-0224,-0225,-0229 Ignition & Electrical Parts Diagram

42" Lawn Tractor

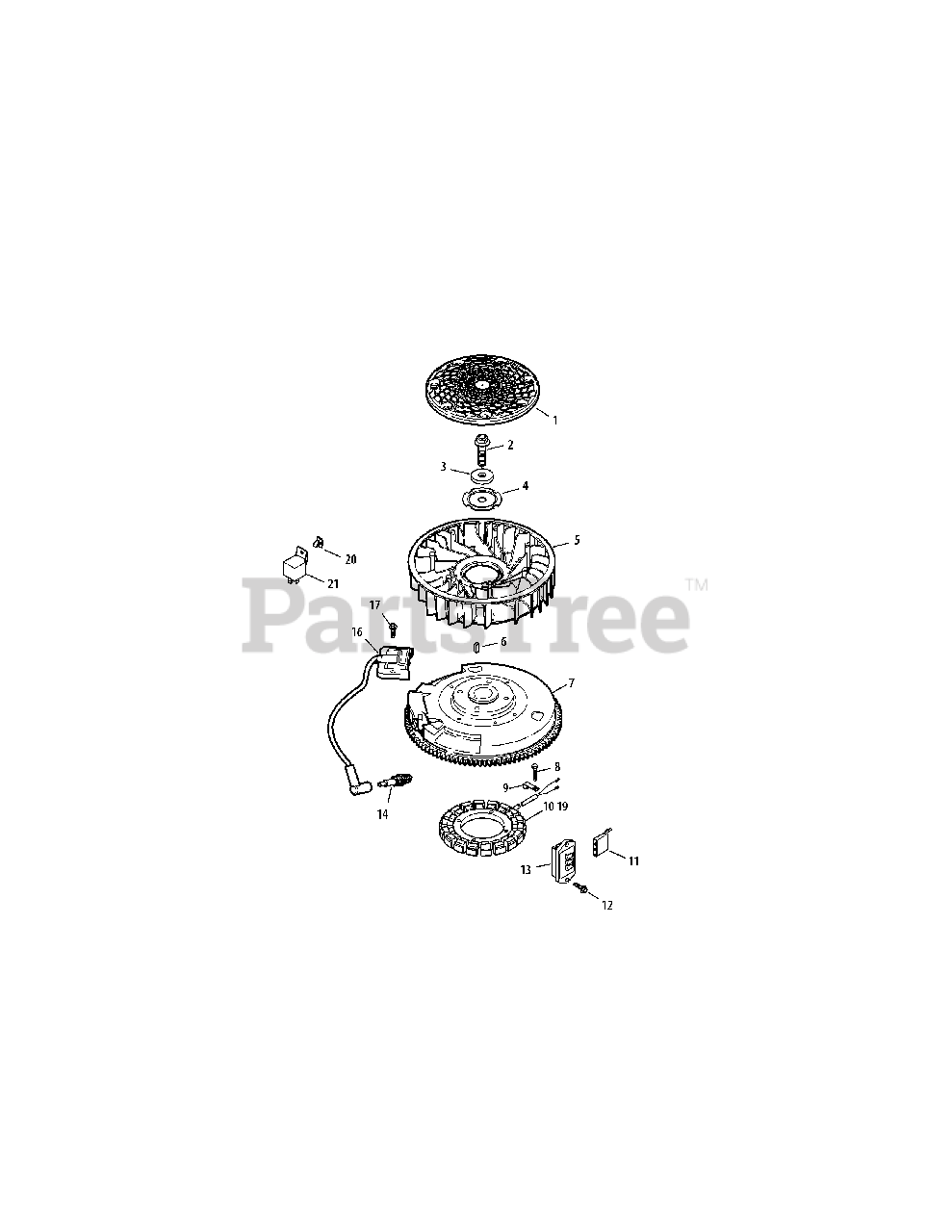

Kohler SV600-0224,-0225,-0229 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-20-162-02-S

Grass Screen

$7.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-086-125-S

Hex Flange Screw
(Superseded to KH-25-086-362-S)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-086-362-S

Hex Flange Screw

Note: SV600-0229 California Models Only

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-25-468-09-S

Flat Washer

$6.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-20-157-01-S

Fan

$24.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-25-340-02-S

Straight Flywheel Key
(Superseded to KH-25-340-04-S)

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-25-340-04-S

Square Flywheel Key

Note: SV600-0229 California Models Only

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-20-025-40-S

Flywheel
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-M-548025-S

Thd. Frm. Screw, M5 X 0.8 X 25
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-20-154-04-S

Wire Clip

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-237878

15 Amp Stator Kit, SV600 (Inc. KH-25-452-01-S)

$149.99

$

In Stock, Qty 5

0

11

Cub Cadet KH-25-155-41-S

Connector

$29.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-M-545020-S

Flange. Screw, M5 X .8 X 20
(Superseded to KH-25-086-473-S)

$2.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-41-403-10-S

Regulator/Rectifier
(Superseded to KH-25-403-37-S)

$126.99

$

Usually ships in 2-5 days

0

14

Cub Cadet 759-3336

Spark Plug (Std)
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-20-584-03-S

Ignition Module (CDI Fixed)

$35.99

$

In Stock, Qty 7

0

16

Cub Cadet KH-20-584-04-S

Ignition Module
(Superseded to KH-20-584-03-S)

Note: SV600-0229 California Models Only

$35.99

$

In Stock, Qty 7

0

17

Cub Cadet KH-M-545020-S

Flange. Thd. Frm., M5 X .8 X 20
(Superseded to KH-25-086-473-S)

$2.99

$

In Stock, Qty 20+

0

19

Cub Cadet KH-20-085-01-S

Stator Assembly Kit, SV600(Incl. KH-25-454-07-S)
(Superseded to KH-12-085-09-S)

$95.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-20-366-01-S

Push Wing Mount, SV600

$2.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-20-404-01-S

Relay, SV600

$52.99

$

In Stock, only 2 left!

0

Cub Cadet KH-20-176-15-S

Wiring Harness, SV600
(Superseded to KH-20-176-21-S)

Note: Not shown

$48.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-20-176-16-S

Wiring Harness, SV600
(Superseded to KH-20-176-22-S)

Note: SV600-0229 California Models Only, Not shown

$32.99

$

In Stock, only 2 left!

0

Cub Cadet KH-25-454-05-S

Tie

Note: Not shown

$2.49

$

In Stock, only 2 left!

0
